E.1) RELAY OUTPUTS

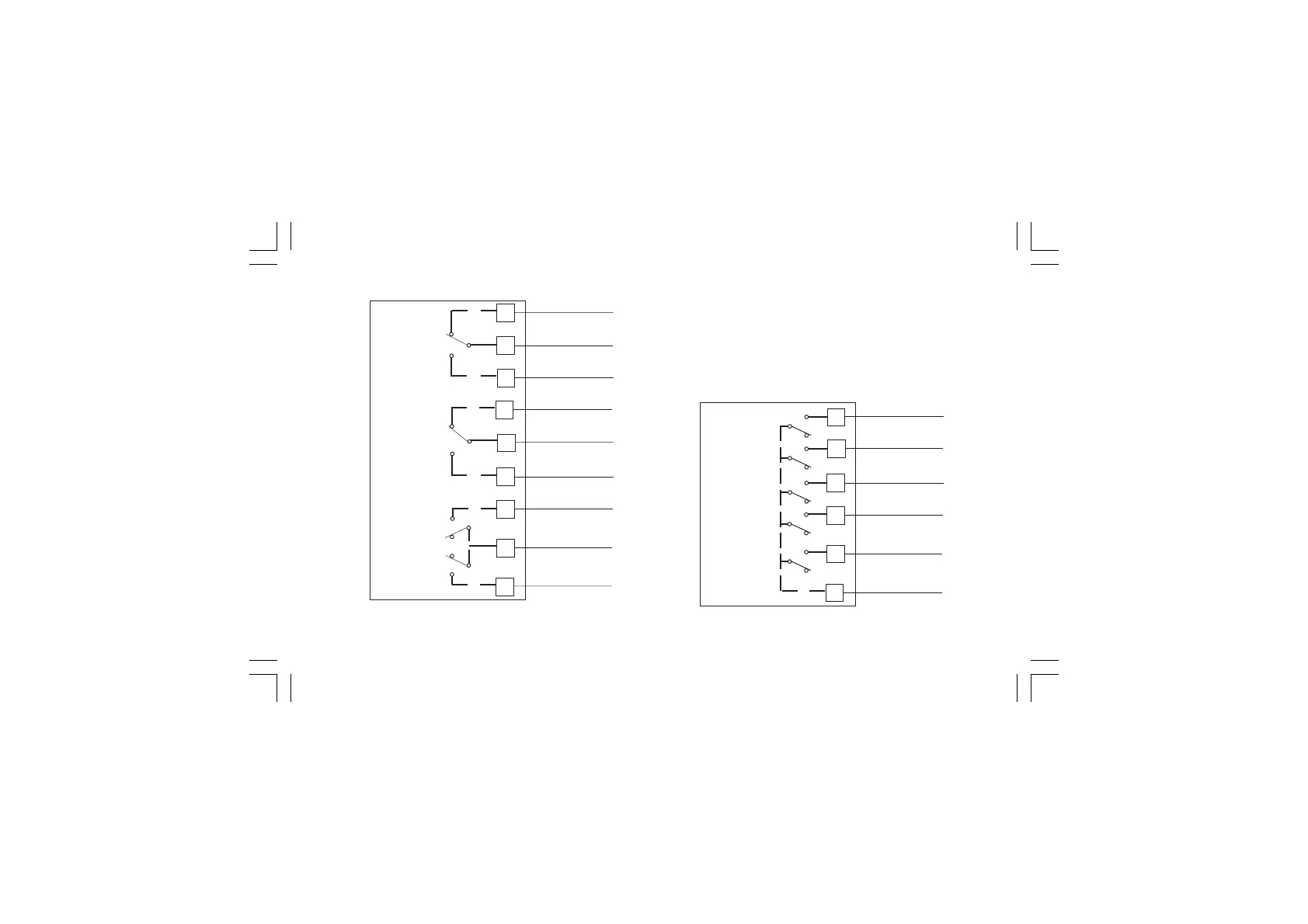

Fig. 11.A RELAY OUTPUTS 1,2,3 and 4 WIRING
OUT 1
23
NC
24
C
25
NO
OUT 2
27
C
NO
28
OUT 3
29
NO - OUT 3
OUT 4
30
C - OUT 3/4
31
NO - OUT 4
26
NC
The outputs from OUT 1 to OUT 4 are equipped with relays
having contact rating equal to 3A/250V AC on resistive load.
WARNINGWARNING
WARNINGWARNING
WARNING: When OUT 3 and 4 are used as independent relay
outputs the addition of the two currents must not exceed 3 A.
Fig. 11.B RELAY OUTPUTS 10 to 14 WIRING
OUT 10
61
NO OUT 10
62
NO OUT 11
NO OUT 12
63
64
NO OUT 13
65
NO OUT 14
66
COMMON
OUT 11
OUT 12
OUT 13
OUT 14
COMMON
