E.5) ANALOG OUTPUTSE.5) ANALOG OUTPUTS
E.5) ANALOG OUTPUTSE.5) ANALOG OUTPUTS
E.5) ANALOG OUTPUTS

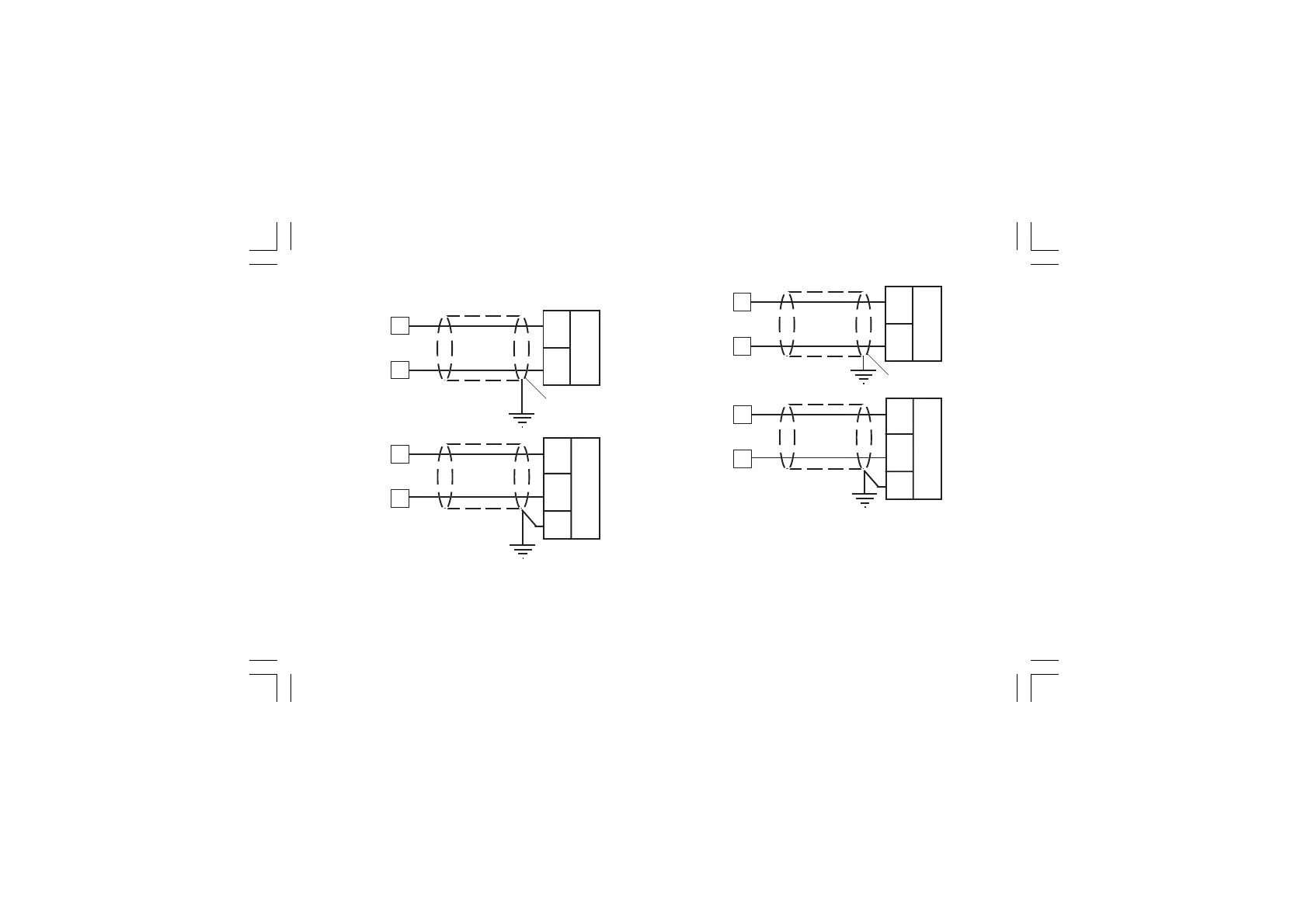

Fig. 16.A OUTPUT 5 WIRING
Fig. 16.B OUTPUT 6 WIRING
NOTENOTE
NOTENOTE
NOTE:
1) Do not run analog output wirings together with AC power
cables.
2) Out 5 and 6 are isolated outputs.
3) The maximum load is equal to 600 Ω.
+
_
Shield
_
+
17
+
_
G
16
17
16
OUT 5
OUT 5
20 mA20 mA
+
_
Shield
_
+
19
18
OUT 6
20 mA
+
_
+
_
G
18
19
OUT 6
20 mA
+
_
