ero electronic MKP - Filter on the Displayed Value; Offset on the Main Input; Read-Out- Full Scale Value

34
CnF. 1CnF. 1 CnF. 1CnF. 1
CnF. 1

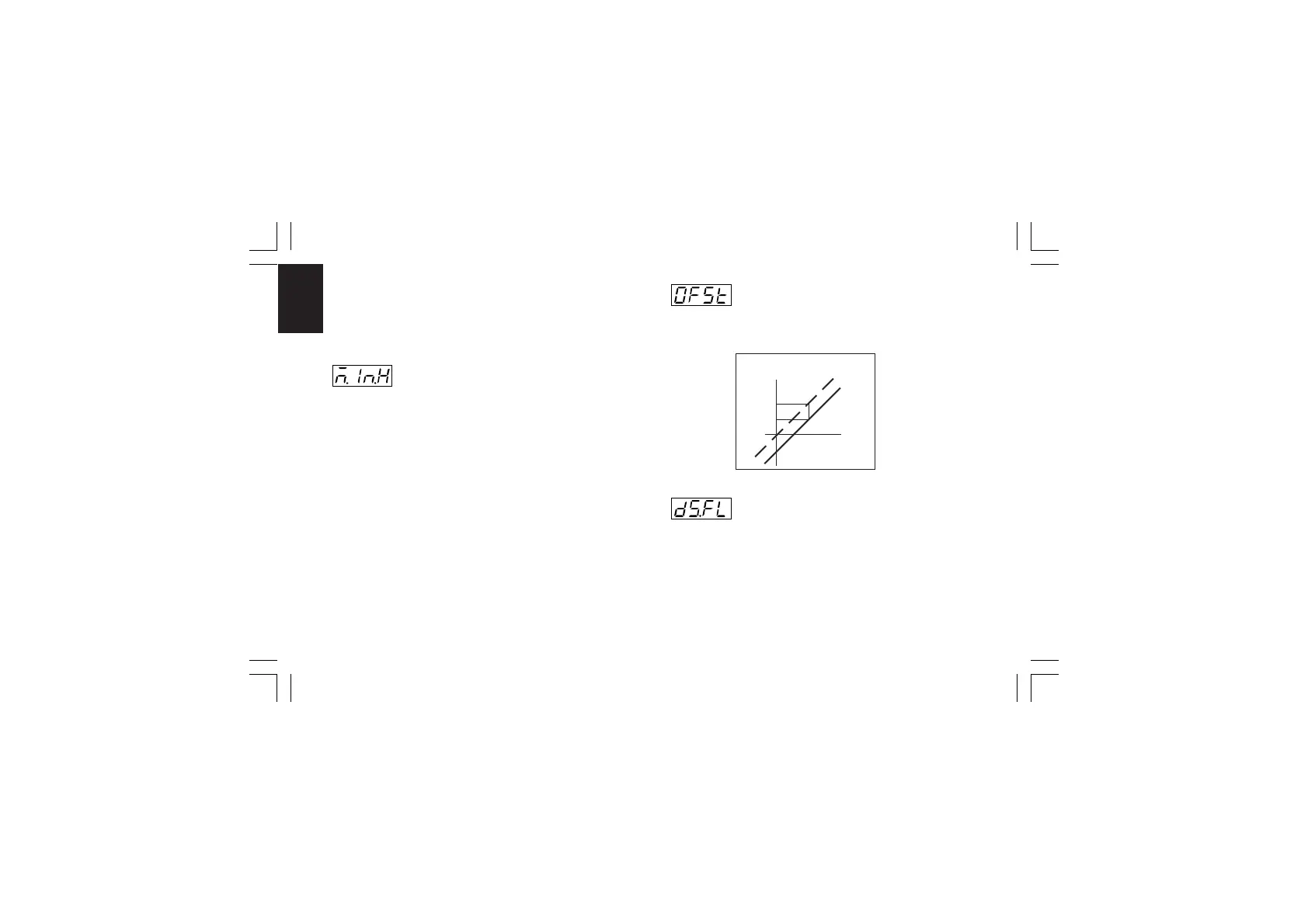

Real curve
Read-out
Adjusted
curve
Input
OFSt
2) Changing the value of this parameter, the "brG.L" (bargraph
- initial scale value [C.I03]) and "rL" (set point low limit
[r.E12]) parameters will be realigned to it.
If a linear input is selected, also the “SS.th” (threshold for
soft start [C.I09]) will be realigned to it.
- Read-out- full scale value - [C.d06]- Read-out- full scale value - [C.d06]
- Read-out- full scale value - [C.d06]- Read-out- full scale value - [C.d06]
- Read-out- full scale value - [C.d06]
Ranges: -from -1999 to 9999 for linear input (Input range 31 to
38),
- from 0 to 9999 for linear input with square root
extraction,
- from "ñ.In.L" (read-out- initial scale value [C.d05]) to
full range value for TC/RTD input.
NOTESNOTES
NOTESNOTES
NOTES:
1) Changing the value of this parameter, the "brG.H" (bargraph
- full scale value [C.I04]) and "rH" (set point high limit [r.E13])
parameters will be realigned to it.
2) The programmed input span, in absolute value, must be
greater than:
300 °C or 550 °F for TC inputs
100°C or 200 °F for RTD inputs
100 digits for linear inputs.
- Offset on the main input - [C.d07]- Offset on the main input - [C.d07]
- Offset on the main input - [C.d07]- Offset on the main input - [C.d07]
- Offset on the main input - [C.d07]
Ranges: from -500 to 500.
NOTENOTE
NOTENOTE
NOTE: the decimal point will be automatically positioned as
selected for the main input.
- Filter on the displayed value - [C.d08]- Filter on the displayed value - [C.d08]
- Filter on the displayed value - [C.d08]- Filter on the displayed value - [C.d08]
- Filter on the displayed value - [C.d08]
Ranges: from 0 (no filter) to 8 seconds.
NOTENOTE
NOTENOTE
NOTE: this is a first order digital filter applied to the read-out of
the main input.
