CONFIGURATION GROUP VERF [C.Lxx]CONFIGURATION GROUP VERF [C.Lxx]
CONFIGURATION GROUP VERF [C.Lxx]CONFIGURATION GROUP VERF [C.Lxx]
CONFIGURATION GROUP VERF [C.Lxx]
CLOCK AND INPUT/OUTPUT TEST
This group is displayed only when configuration modify mode is
enabled.
This group allows to verify the correct working of:
- the clock calendar,
- the relay outputs (OUT 1 up to OUT4),
- digital inputs (diG.1 up to diG.3),
- the auxiliary inputs from In1 up to In8 and the relays of the
auxiliary outputs from OUT10 up to OUT19, if the optional I/O
card is fitted.
When an output is in "On" status, the related LED will light up

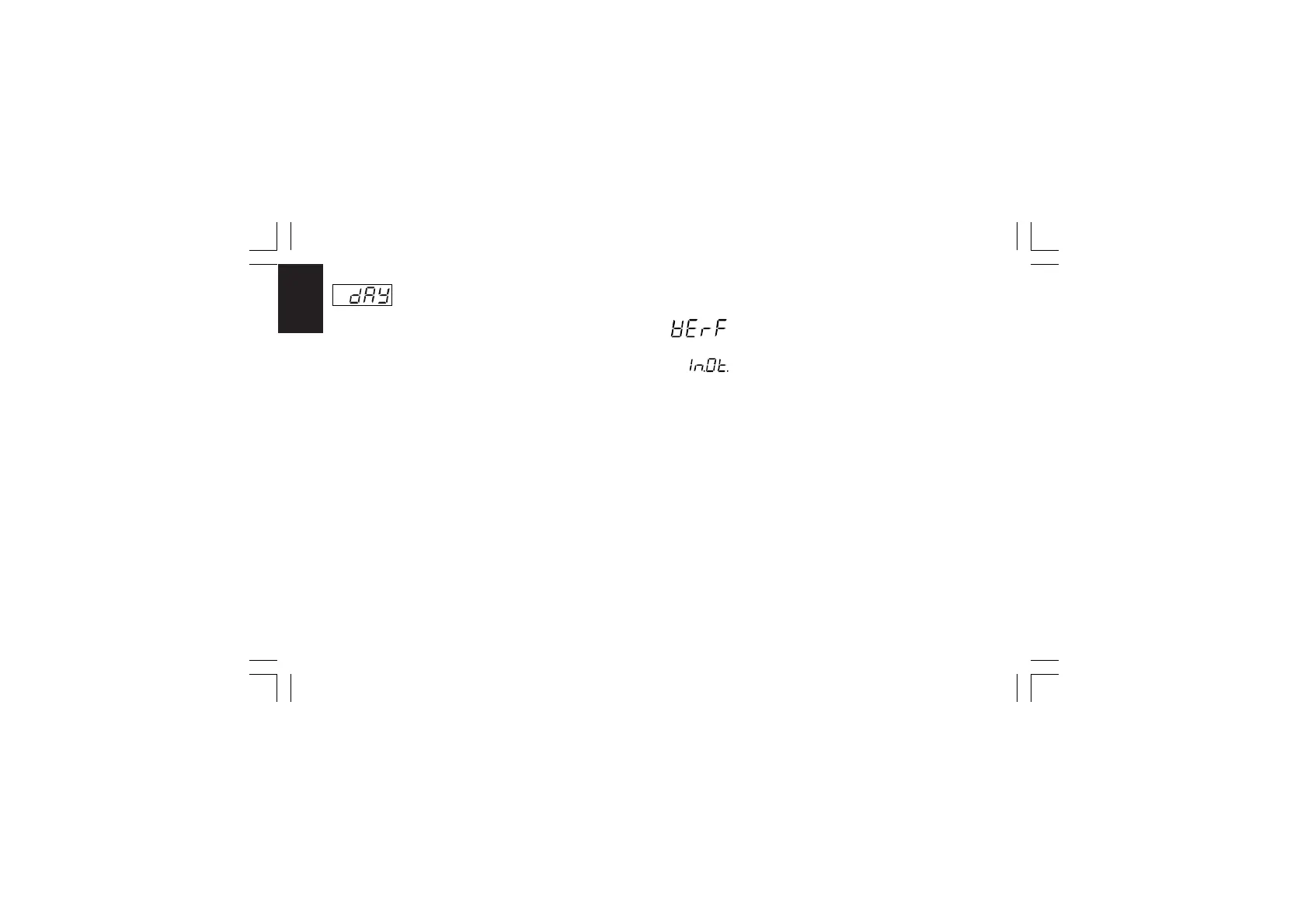

- Current day - [C.I17]- Current day - [C.I17]
- Current day - [C.I17]- Current day - [C.I17]
- Current day - [C.I17]
This parameter will be available only when the clock calendar
hardware is mounted and the "En.Ck" [C.I.14] parameter is
different from "nonE".
Range: ñon = Monday
tUe = Tuesday
yEd = Wednesday
tHU = Thursday
Fri = Friday
SAt = Saturday
Sun = Sunday
CnF. 6CnF. 6 CnF. 6CnF. 6
CnF. 6
