ero electronic MKP - G) POWER LINE WIRING

14
Switching modeSwitching mode
Switching modeSwitching mode
Switching mode: isolated zero crossing type.
Rated currentRated current
Rated currentRated current
Rated current: from 50 mA to 1 A.
Rated voltageRated voltage
Rated voltageRated voltage
Rated voltage: from 24 V
RMS
to 240 V
RMS
-10 % +15 % (50/
60Hz)
Load typeLoad type
Load typeLoad type
Load type: resistive load only
NOTESNOTES
NOTESNOTES
NOTES 1) To avoid electrical shock, connect power line at
the end of the wiring procedure.
2) For power connections use No 16 AWG or larger
wires rated for at last 75 °C.
3) Use copper conductors only.
4) Don’t run input wires together with power cables.
5) This output is not fuse protected. Please, provide it
externally using a fuse with a I
2
t equal to128.
23
Load
24
Line
26
Load
27
Line
OUT 1
OUT 2
NOTENOTE
NOTENOTE
NOTE: This output is not isolated.
A double or reinforced insulation between instrument output
and power supply must be assured by the external solid state
relay.
E.3) TRIAC OUTPUTSE.3) TRIAC OUTPUTS
E.3) TRIAC OUTPUTSE.3) TRIAC OUTPUTS
E.3) TRIAC OUTPUTS

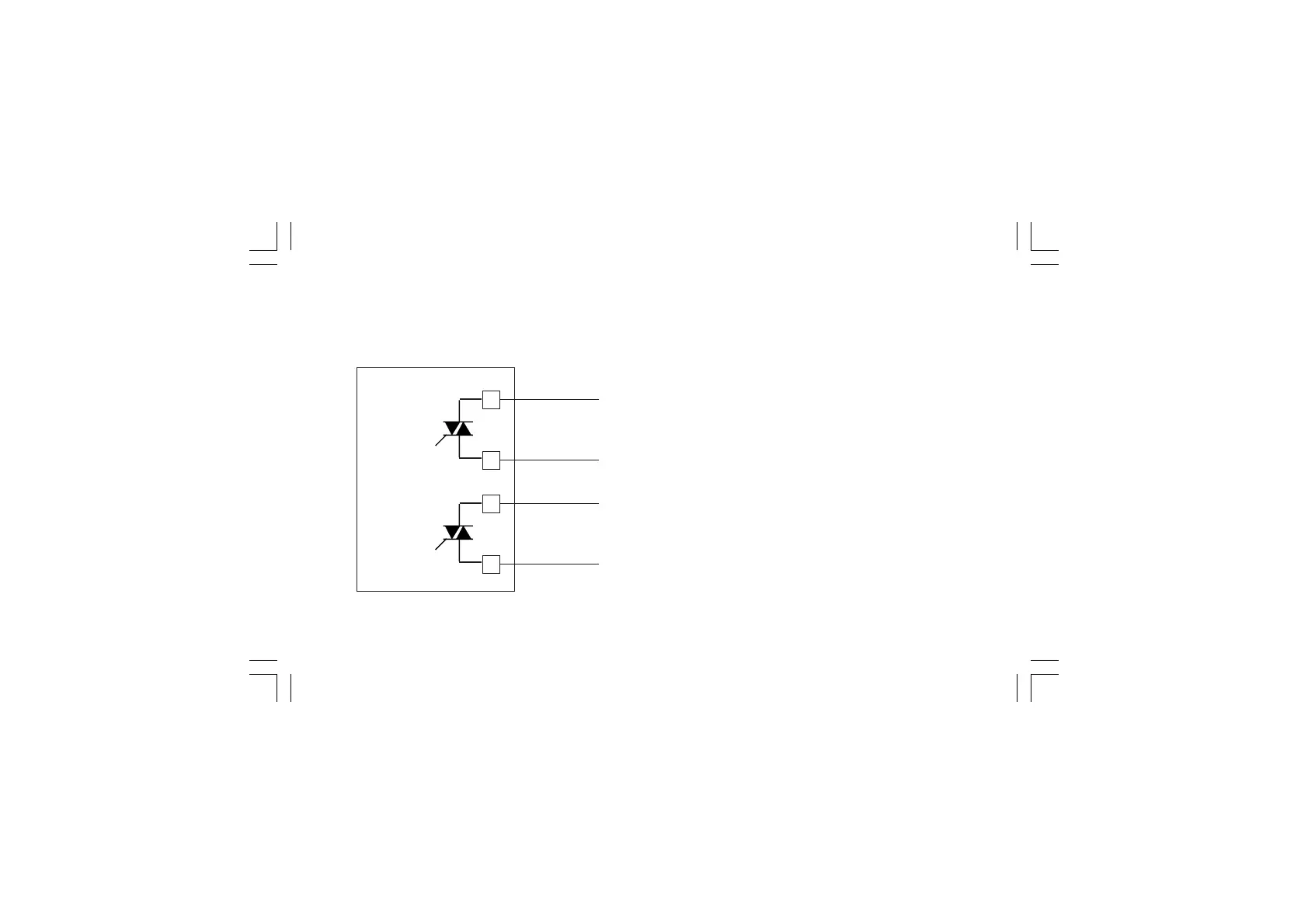

Fig. 14 TRIAC OUTPUT WIRING
