ero electronic MKP - Main Control Output Conditioning; NOTE about Output Conditioning

44
CnF. 3CnF. 3 CnF. 3CnF. 3
CnF. 3
- Main control output conditioning - [C.F06]- Main control output conditioning - [C.F06]
- Main control output conditioning - [C.F06]- Main control output conditioning - [C.F06]
- Main control output conditioning - [C.F06]
This parameter will be available only when main control output
is configured.
Range:norñ = The control output is calculated by the PID.
CñPL = The control output is complemented (100-PID
calculated value).
Ouic = The control output is conditioned to match a
“QUICK OPENING” flow characteristic.
Eou = The control output is conditioned to match an
“EQUAL PERCENTAGE” flow characteristic.
NOTE about output conditioningNOTE about output conditioning
NOTE about output conditioningNOTE about output conditioning
NOTE about output conditioning
Sometimes non linear valves are used where a linear valve is
suitable.
In these cases, it is advisable to linearize the ratio between flow
rate and valve travel in order to obtain a better control of the
process.

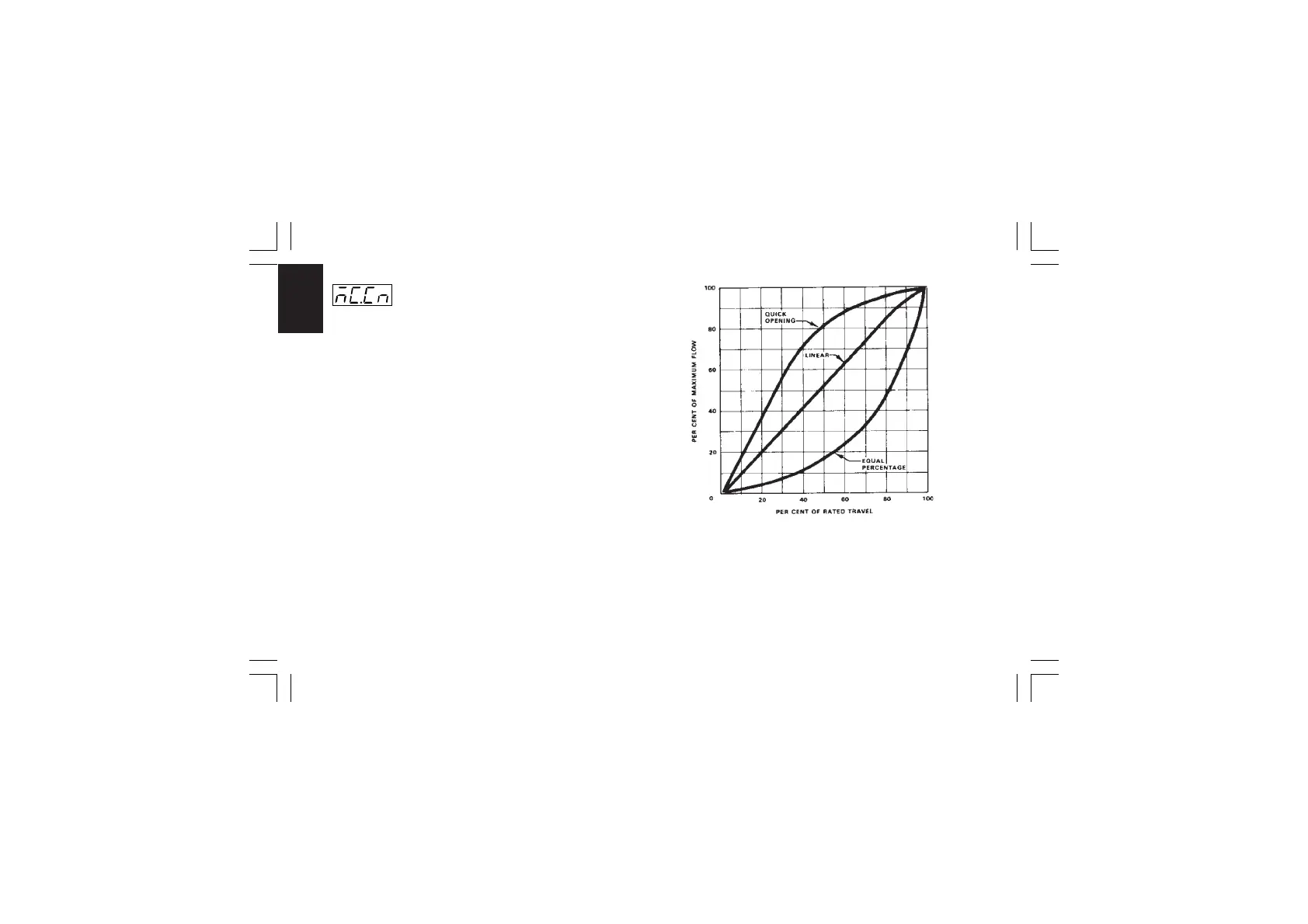

This instrument allows you to select an output linearization in
accordance with the two most common valve flow characteris-
tics:
- Quick opening
- Equal percentage.
