5.3.6 Aux Busses
The CM404 Center Section has Bus Master functions. See page 116 to configure Aux
busses as stereo pairs.
Aux busses can be mono or stereo pairs. Each Aux bus can be configured as pre- or
post-fader. Press the Aux Knobset Select key to assign the Aux bus parameters to the
knobs. Aux bus assignments are displayed at the top of the strip. Pre-fader sends are dis-
played in yellow; post-fader sends are in green.

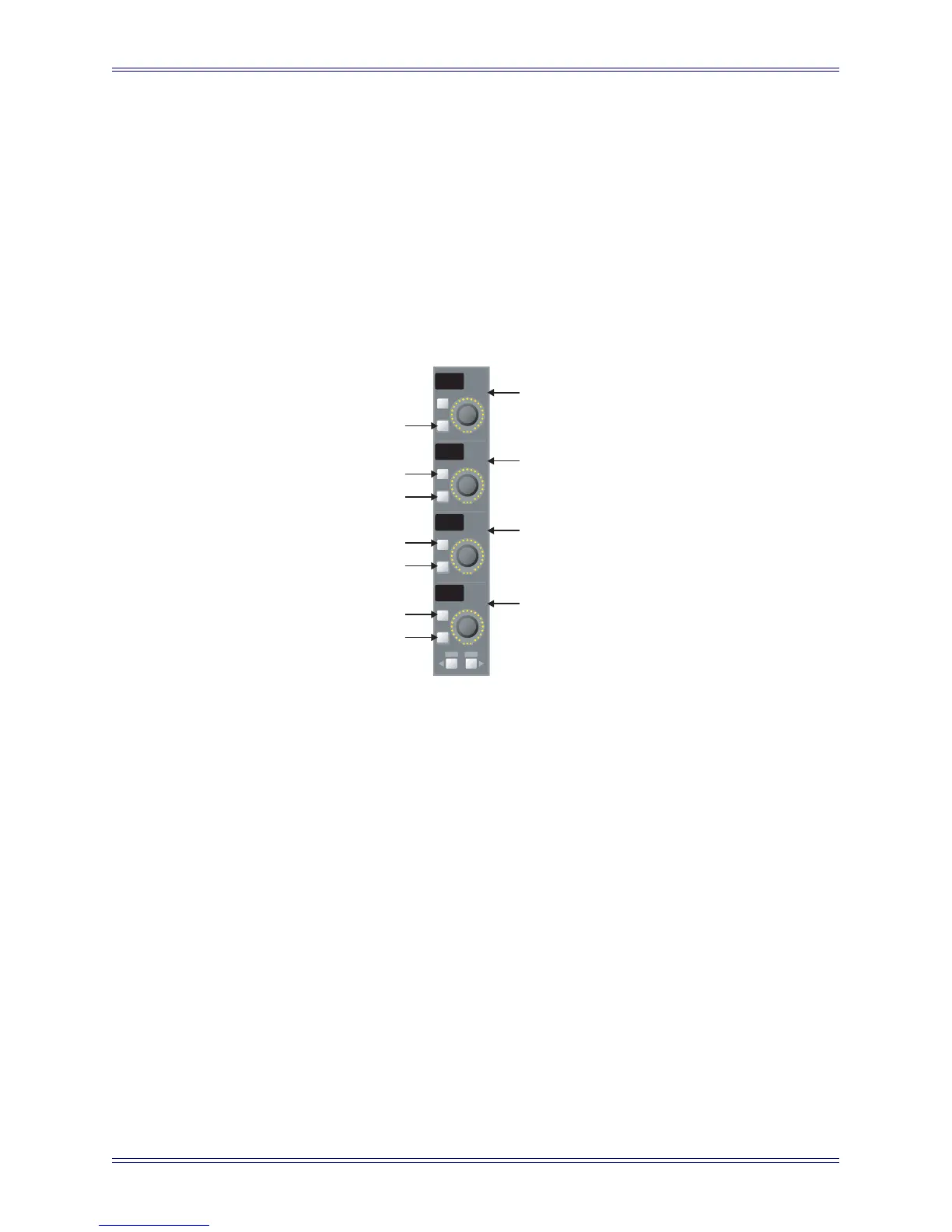

Figure 5-14 Aux bus Knobset
Figure 5-14 shows the first four Aux busses with 1/2 set to a stereo pair and others to
mono. Press the X key to display additional busses. Stereo busses use two knobs:
• The Pan knob (top) adjusts the stereo Pan and its lower-left key switches Pan
in/out.
• The Gain knob (labeled with the send numbers) adjusts the overall Gain for
both sends and its lower-left key switches the pair in/out. The upper-left key
switches the send from post- to pre-fader.
• Mono busses use one Gain knob and its lower-left key switches the send in/out.
The upper-left key switches the send from post- to pre-fader.
On
On
On
On
Select
Select
Select
Select
Copy Paste
Pan
1/2
3
4
Page 1
Aux 4 Gain
Aux 3 Gain
Aux 1/2 Gain
Pan in/out
on/off
on/off
on/off
pre/post
pre/post
pre/post
Aux 1/2 Pan
To Next Page
