Euphonix Max Air Mixing Console Operation Manual Channels and Strips
89
5.1.1 Assign Channels to Strips
Each strip can control a Main and Swap channel. One or both of the channels can be a
Control Group Master or Multi Format Master instead of a normal channel (see Chapter
8: Control Groups and Multi Format Masters). Channels can be assigned individually
using the strip controls or to multiple strips using the Channels - Assign View (see
Channels on page 74) from the Touchscreen.
Channel Assign View
The Channels - Assign View on the Touchscreen is most commonly used to assign
channels to multiple strips but can also be used for a single assignment.
1. Select Channels from the Main Menu buttons.
2. Select the Assign tab.

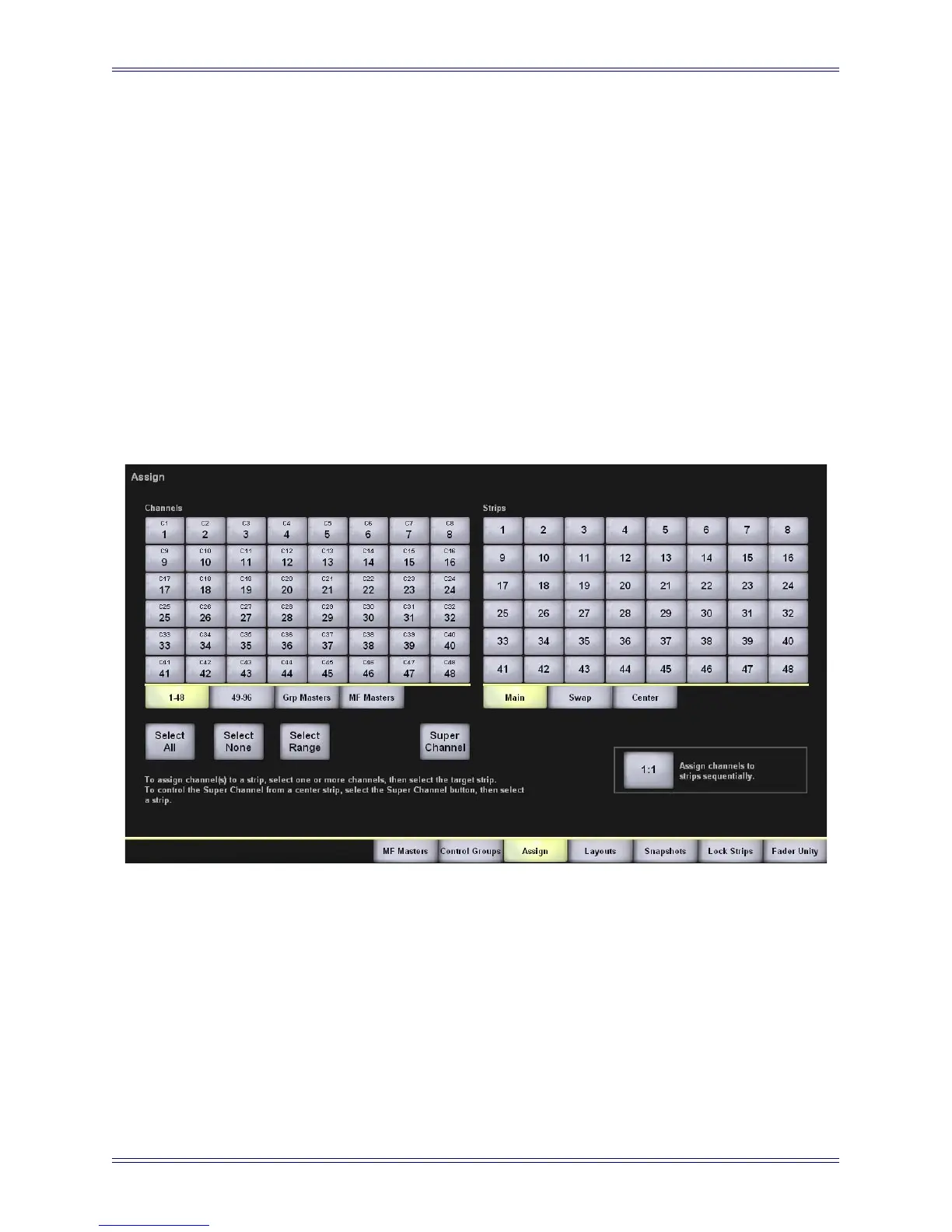

Figure 5-2 Channel Assign View
3. In the Channel Assign View, select the channel to assign from the Channels
bank.
4. Select the strip to assign the selected channel to from the Strips bank.
