7.2.1 Monitors

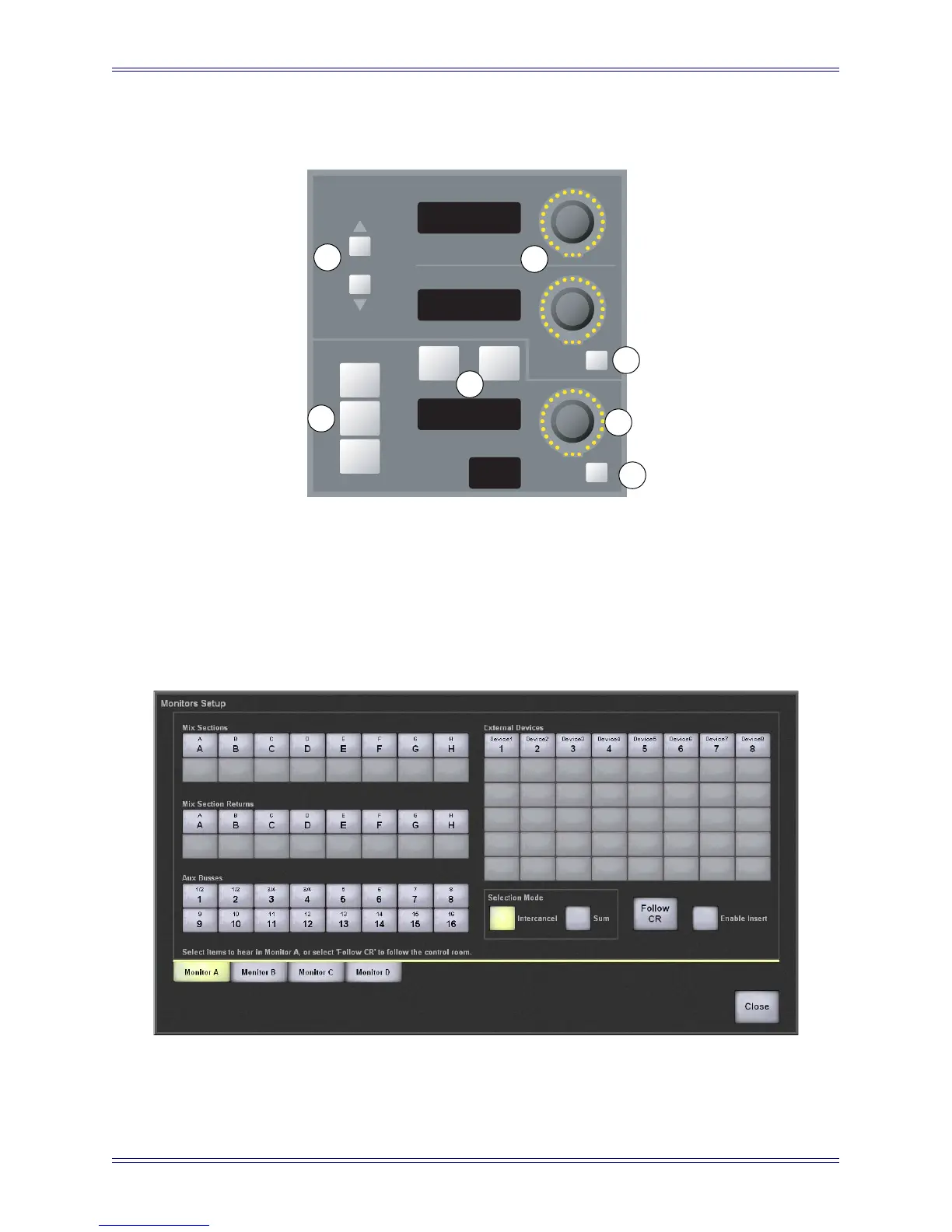

Figure 7-7 CM404 Monitor Controls
Mon A–D each has a level control and LCD display (2 in Figure 7-7) that shows the
source. The knobs (2) are level controls. Use the S and T page keys (1) to control
Monitors A and B or Monitors C and D. Pressing the knob toggles the monitor on/off.
Monitors Setup
Figure 7-8 Monitors Setup Popup
SetupSetup
SetupSetup
MonitorsMonitors
Control RoomControl Room
R
G
W
R
G
W
Alt 2
Spkrs
Alt 1
Spkrs
Main
Spkrs
Dim Cut
1
2
3
4
5
6
7
