Euphonix Max Air Mixing Console Operation Manual Introduction
20
Monitoring
The MC524 Monitor Controller provides analog monitor outputs. This unit provides
Main (7.1), Alt 1 (5.1), and Alt 2 (stereo) control room monitoring, SLS (7.1), and Cues
1–3 (each stereo) studio monitoring, two talkback preamps, and four listen microphone
preamps. The MC524 is connected to a dedicated MA703 MADI to Analog Converter.

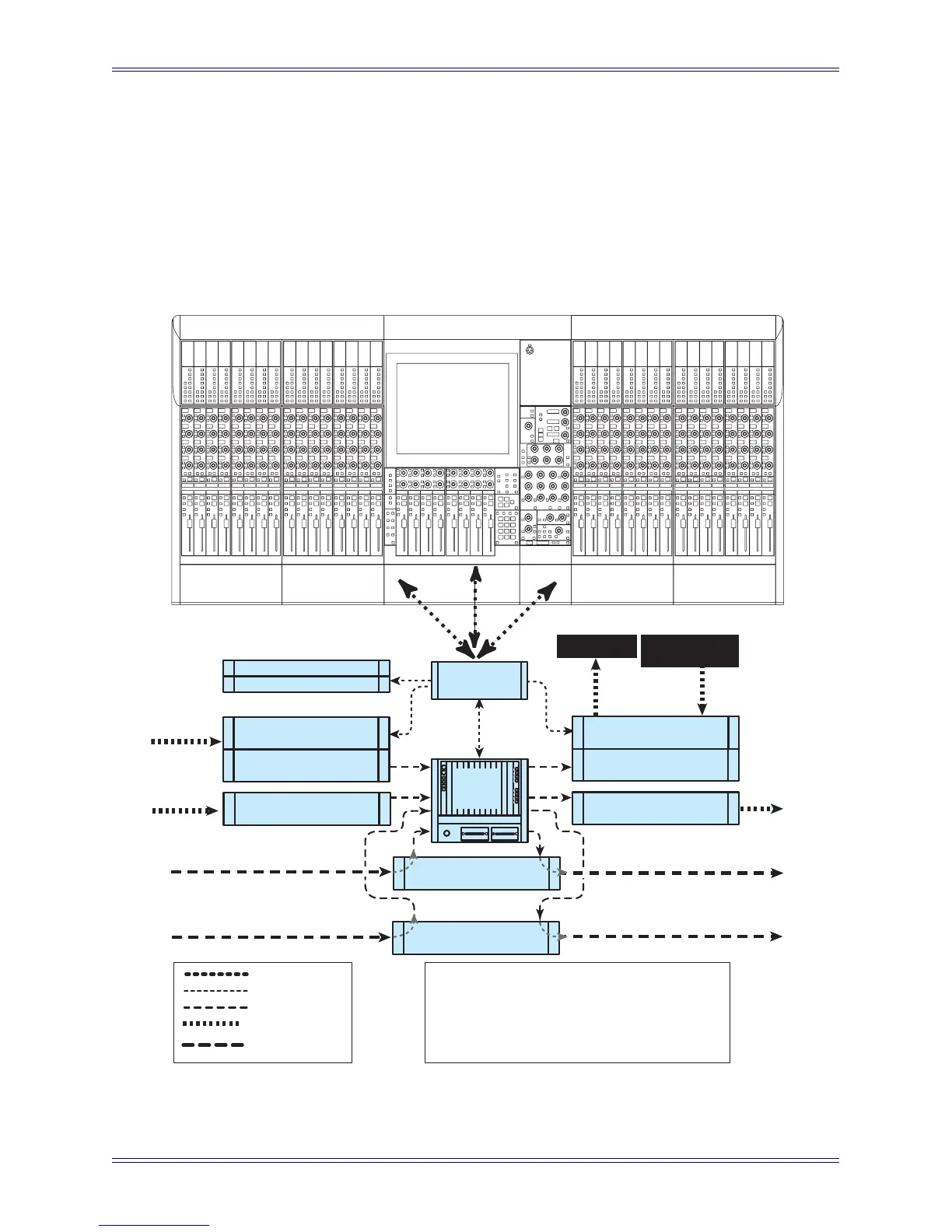

Figure 1-1 Typical Max Air Hardware Configuration
MC524
Monitor Interface
MA703
MADI to Analog
MIDI I/F
GPI/O
MA703
MADI to Analog
AM713
Analog to MADI
ML530
Analog Mic/Line
AM713
Analog to MADI
Talk & Listen
Mics
Speakers
FC726
Digital
FC726
Digital
Ethernet
Control
MADI
Analog Audio
Digital Audio
24
24
24
Typical Max Air Configuration
96 Full Channel Signal Paths
Inputs: 112 Digital, 24 Mic, 24 Line = 160
Ouputs: 112 Digital, 24 Line = 136
56 Digital
56 Digital
56 Digital
56 Digital
A
C
D
B
A
C
D
B
DF64
Core
System
Computers
CM404
Center Section
CM416
Sixteen Fader Module
CM416
Sixteen Fader Module
