Each parametric EQ band has two knobs: one shared between frequency and Q and an-
other for gain. Press the upper key to the left of any of the frequency knobs to toggle
between Q and frequency. Use the gain knob to adjust the gain for that band. The lower
key to the left of the gain knob switches that band In/Out.
The four bands are identical (20.5 Hz – 21 kHz) except the HiF and LoF bands can be
switched between peak or shelf filters. Press the lower of the keys to the left of the HiF
or LoF knob to toggle between shelf (no light) and peak (key lights green).
The gain can be adjusted in
1
/
8
dB increments in a range from -24 to +24 dB. As the
gain is changed from 0, the LEDs light dimly from the center LED in the direction
turned (clockwise = boost); the level is indicated by a bright LED.
Q can be adjusted in the range from 0.2 to 12 (higher number corresponds to narrower
bandwidth). At a given Q setting, changing the gain affects the bandwidth slightly: the
bandwidth decreases as gain increases. This creates a wider area of boost/cut at low
gain and allows a more natural sound as gain changes without altering the Q. At full
boost or cut, the bandwidth is measured 3 dB down from the center frequency.
Since Q and Frequency share the same knob, both parameters are indicated on the knob
LEDs: Frequency is indicated by a bright LED at its proportional position from first to
last LED. For example, 10 kHz would be approximately in the middle. Q is indicated
by dim LEDs extending to either side of the frequency LED.
5.3.4 Filters
Each channel has two filters with four filter types available: high-pass filter, low-pass
filter, band-pass filter and a notch filter. Press the Filt Knobset Select key to display the
Filter controls on the knobs.

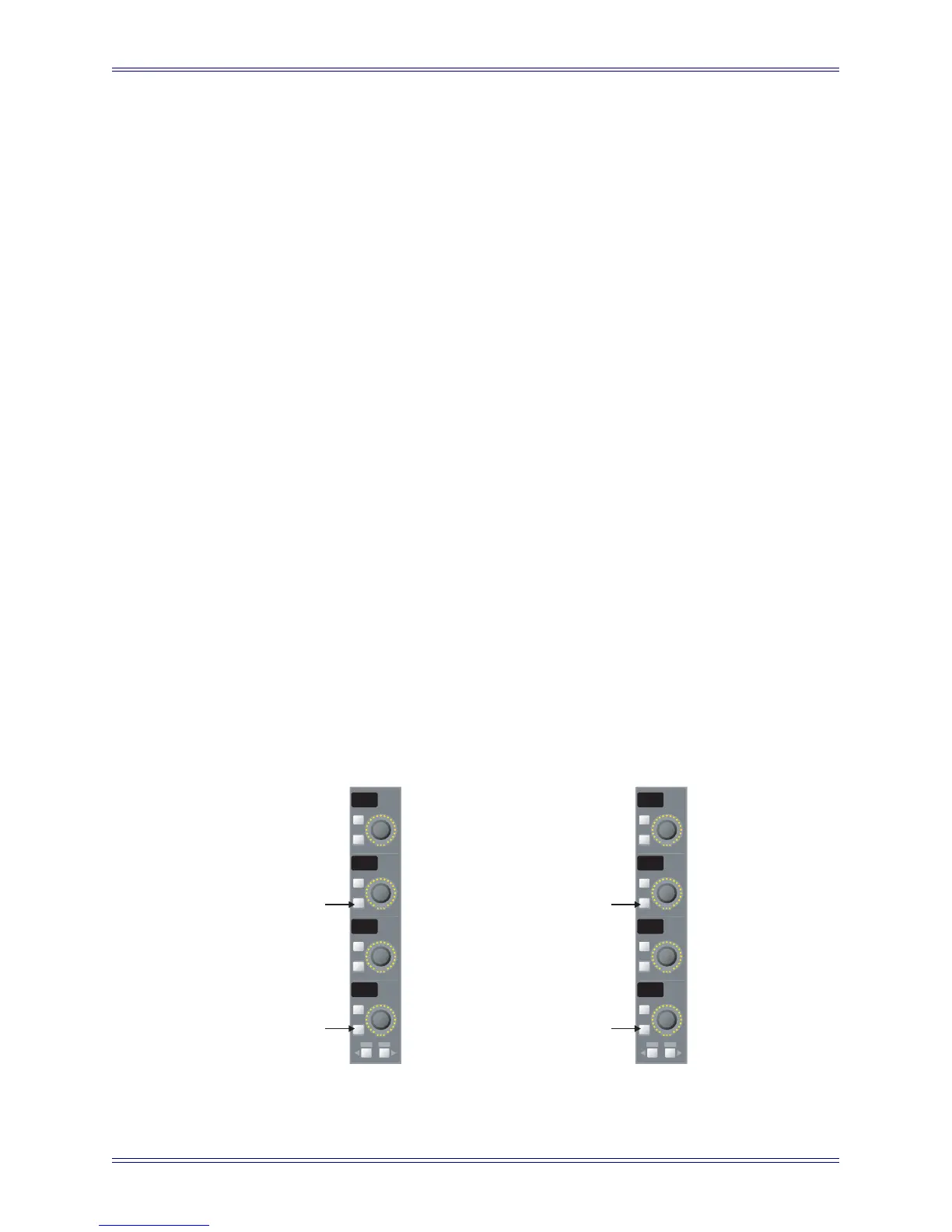

Figure 5-12 Filters knobsets
On
On
On
On
Select
Select
Select
Select
Copy Paste
F1tp
F1Q
F1fr
Page 1
Filter 1 in/out
Listen
On
On
On
On
Select
Select
Select
Select
Copy Paste
F2tp
F2Q
F2fr
Page 2
Filter 2 in/out
Listen
