Euphonix Max Air Mixing Console Operation Manua
l
Event System
170

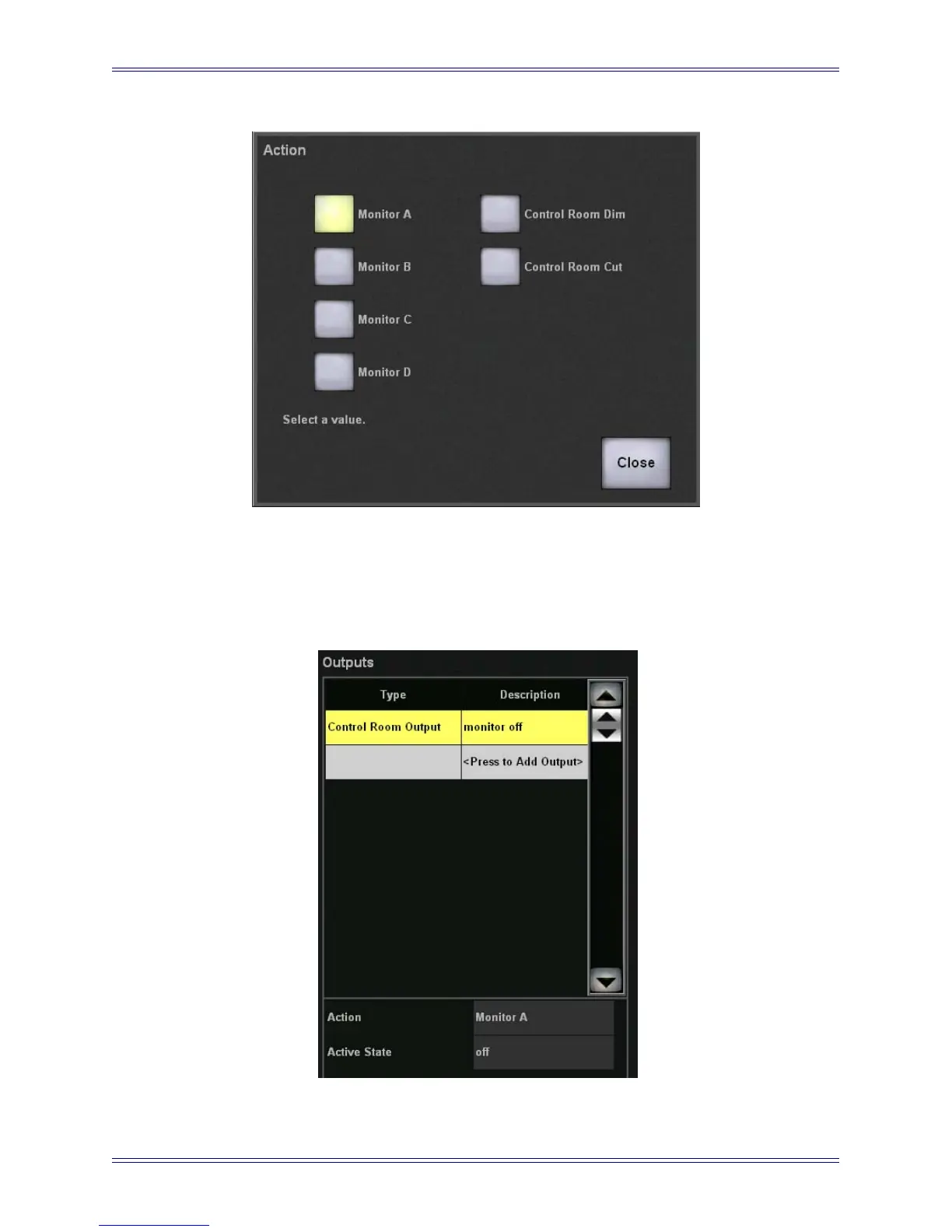

Figure 10-5
Action Popup
11.
Touch the value next to
Active St
ate
and select
Off
from the Active State Popup.
The
Outputs
should now appear as in Figure 10-6.
Figure 10-6
Monitor Off: Outputs Set
169
171
Table of Contents
Table of Contents
5
Important Safety Instructions
3
List of Figures
13
Chapter 1: Introduction
17
How to Use this Manual
17
Overview of the System Components
19
DF64 Digital Audio Frame
19
Analog and Digital I/O
19
Typical Max Air Hardware Configuration
20
Control Surface
21
Max Air Control Surface
21
Additional Hardware Components
22
Max Air Startup Sequence
23
Chapter 2: New Features in Version 1.4
25
Chapter 3: Quickstart to Common Tasks
27
Create a Title
27
Initial Router and Patchbay Setup
28
Name Ports
28
Console Sources
28
Assigning the MIC Preamps to Hubs
29
Label Destination Ports and Signals
30
Label Individual Signals
30
Channel to Strip Layout
31
Setting up Stereo Channels Using MF Masters
31
Assign Channels to Strips
32
Busses
33
Create Main Sections and Audio Subgroups
33
Main Section a Signal Flow
35
Route to the Main Sections and Busses
36
Using the 24 Group Busses
37
Meters
38
Setting the Fader Meters on each Strip
38
Screen Meters on the Touchscreen
38
Knobsets
40
Creating a Custom Knobset for Mono Channels
40
Creating a Custom Knobset for Stereo Channels
41
External Device Setup
41
Patching External Devices into the External Inputs
41
Assign External Inputs a Format and a Button
42
Monitors
42
Monitor Routing
42
Save a Default Title
43
Chapter 4: Touchscreen
45
Introduction to the Touchscreen
45
Keyboard Popup
45
Touchscreen Main Menu Buttons
46
Touchscreen Main View
47
Touchscreen Navigation
48
File
49
Projects
49
Drives View
49
Projects View
50
Titles
51
Titles View
51
Operations on the Current Title
52
Save Current Data Popup
52
Current Title Buttons
52
Default Titles
53
Patch
54
Simplified MADI Routing Diagram
54
Destinations and Sources
55
Console I/O
55
Sources and Destinations with Respect to Max Air
55
Console I/O -A and B Inputs View
56
Sources and Destinations Selected
57
Patch Complete
58
Source Input Naming
59
Sources Patched to Channels
59
Cabling
60
Cabling: MADI out Port
61
Cabling: MADI in Port
62
Patching Examples
63
Patch 12 Mics into Channels 25-36
63
Sources View with 12 MIC-Line Sources Selected
63
Selecting Destination Channels
65
MIC Patch Complete
65
Sources Selected
66
Main Bus Send/Return
67
Main Bus Send and Return
67
Monitor Patching
68
Solo Bus and Utility Patching
68
Talkback Signal Patching
68
Busses
69
System
69
Externals
69
Externals View
69
Knobset
70
Knobset View
70
Mixer Model
71
Mixer Model View
71
Preferences
72
Preferences View
72
About
73
Channels
74
Multi Format Masters
74
Control Groups
74
Assign
74
Channels Tabs
74
Assign View
74
Layouts and Snapshots
75
Spill Area
76
Lock Strips
76
Spill Area Function
76
Fader Unity
77
Lock Strips View
77
Fader Unity Popup
77
Status
78
Status View
78
Super Channel
79
Super Channel View
79
Process Order
80
Channel Selector Popup
80
Process Order Popup
80
Main and Group Bus Routing
81
Channel Routing Popup
81
Meters
82
Presets
82
Meters-Presets Popup
82
Screen
83
Meters-Screen Popup with Meters Display
83
Fader
84
Meters-Fader Popup
84
Setup
85
Events
85
Meters-Setup View
85
Chapter 5: Channels and Strips
87
Strips
87
Console Strip and Bus Display with Block Diagrams for Main and Swap Channels
88
Assign Channels to Strips
89
Channel Assign View
89
Channel Control Features
91
Channel Name
91
Channel Selector
91
Main and Swap Channel Displays
91
Fader
92
Strip Fader
92
Meters
93
Status Leds
93
Wave Key
93
Channel on Key
93
Channel Select Key
94
Solo Key
94
Copy and Paste
94
Rotary Knobs
94
Knobset Select Keys
95
Rotary Knob Controls
95
Strip Function Switches
95
In/Out Keys
96
Expand
96
Channel Processing Functions
96
Inputs
96
Mono Input Knobsets
96
Stereo Controls
97
Dynamics
98
Stereo Input Knobsets
98
Dynamics Knobsets
98
EQ Knobsets
99
Filters
100
Filters Knobsets
100
Pan
102
Pan Knobsets
102
Aux Busses
104
Aux Bus Knobset
104
Channel Processor Order and Patch Points
105
Channel Processor Order
105
Insert Point
105
Channel Routing Functions
106
Group Bus Routing
106
Group Bus Routing Knobsets
106
Main Bus Routing
107
Main Section Routing Knobset
107
MIX Minus
108
MIX Minus Processing
108
Chapter 6: Busses
109
Introduction to Max Air Busses
109
Configuring Main and Group Busses
110
Main Bus View
110
Format Selector
111
Group Bus View
111
Format Selector
112
Configuring Aux Busses
114
Aux to Faders
114
Aux Bus Settings View
114
Toggle On/Off
115
Toggle Pre/Post
115
Copy Fader to Aux
115
Copy Aux to Aux
116
Set Unity
116
Toggle Stereo
116
MIX Minus
117
MIX Minus Configuration-Strips View
117
Bus Centric Views
118
Goup Bus View
118
Aux View
118
Group Bus View-Strips
118
Aux Bus View-Channels
119
Main View
120
Main View: A-Channels
120
Bus Masters
121
Main Section Masters
121
CM404 Center Section with Soft Knobs
121
Group and Aux Bus Masters
122
Bus Inserts
122
Chapter 7: Center Section
123
CM404 Master Module
123
Super Channel
124
CM404 Super Channel Controls
124
Assign a Channel to the Super Channel
125
Super Channel: Selected Channel, Pan, Filters, and Input
125
Input Section
126
Pan
126
Filters
127
Insert
127
Super Channel: EQ, Insert
127
Dynamics
128
Fader
128
Super Channel: Dynamics
128
Monitors and Control Room
129
Monitoring Matrix
129
Monitors
130
CM404 Monitor Controls
130
Monitors Setup Popup
130
Control Room
131
Control Room Setup: CR Source
132
Control Room Setup: CR Output
132
Talkback/Slate
134
CM404 Talkback/Slate
134
Talkback
135
Talkback/Slate Setup Popup
135
Listenback
136
Listenback Setup Popup
136
Slate
137
Oscillator
137
Slate Setup Popup
137
CM404 Oscillator
138
Oscillator Setup Popup
138
Solo
139
CM404 solo Controls
139
Solo Setup Popup
139
Solo Mode
140
Solo Level
140
Clear solo
140
Solo Switch Mode
140
Speaker Selection
141
Solo Speaker DIM
141
Solo-Safe
141
Solo Safe Popup
141
Backstop PFL
142
Soft Knobs
142
CM404 Soft Knobs
142
Soft Knob Setup Popup
143
Soft Knobs Setup Popup
143
Center Section Faders
144
CM404 Center Section Faders
144
Keypad
145
CM404 Keypad
145
Keypad Directory Popup
146
Global Functions
147
Global Function Keys
147
Custom Keys
148
Chapter 8: Control Groups and Multi Format Masters
149
Control Groups
149
Create a Control Group
149
Control Groups View
149
Assign Control Group Master to Strip
150
Assign Channels to CG View
150
Multi Format Master Channels
151
Create a Multi Format Master Channel
151
MF Masters View
151
Control Groups or Multi Format Masters
152
Spill
153
Chapter 9: Layouts and Snapshots
155
Layouts
155
Layouts View
155
Store
156
Recall
156
Name
156
Clear
156
Store Layout Popup
156
Snapshots
157
Store
157
Snapshots View
157
Store Snapshot: Strip View
158
Channel View
158
Recall
159
Name
159
Clear
159
Store Snapshot: Channel View
159
Chapter 10: Event System
161
Input Types
162
Output Types
163
Logical Operators
164
Event Configuration Display
165
Event List
165
Event View
165
Input
166
Add Input Event Popup
166
Output
167
Deleting Events
167
GPI Examples
167
Add Output Event Popup
167
Move a Fader to Turn off the Floor Monitors
168
Monitor Off: Inputs Set
169
Action Popup
170
Monitor Off: Outputs Set
170
Move a Fader to Turn on the Floor Monitors
171
Monitor On: Inputs Set
172
Move a Fader to Start a Cart Machine
173
Monitor On: Outputs
173
Machine Popup
174
Move a Fader to Stop a Cart Machine
175
Video Switcher Turns a Specific Camera and Channel on
177
Video Switcher Turns a Specific Camera and Channel off
178
Camera/Channel On: Inputs and Outputs Set
178
Camera/Channel Off: Inputs and Outputs Set
179
Audio Follow Video
180
Audio Follow Video Configuration
180
