Euphonix Max Air Mixing Console Operation Manual Touchscreen
65

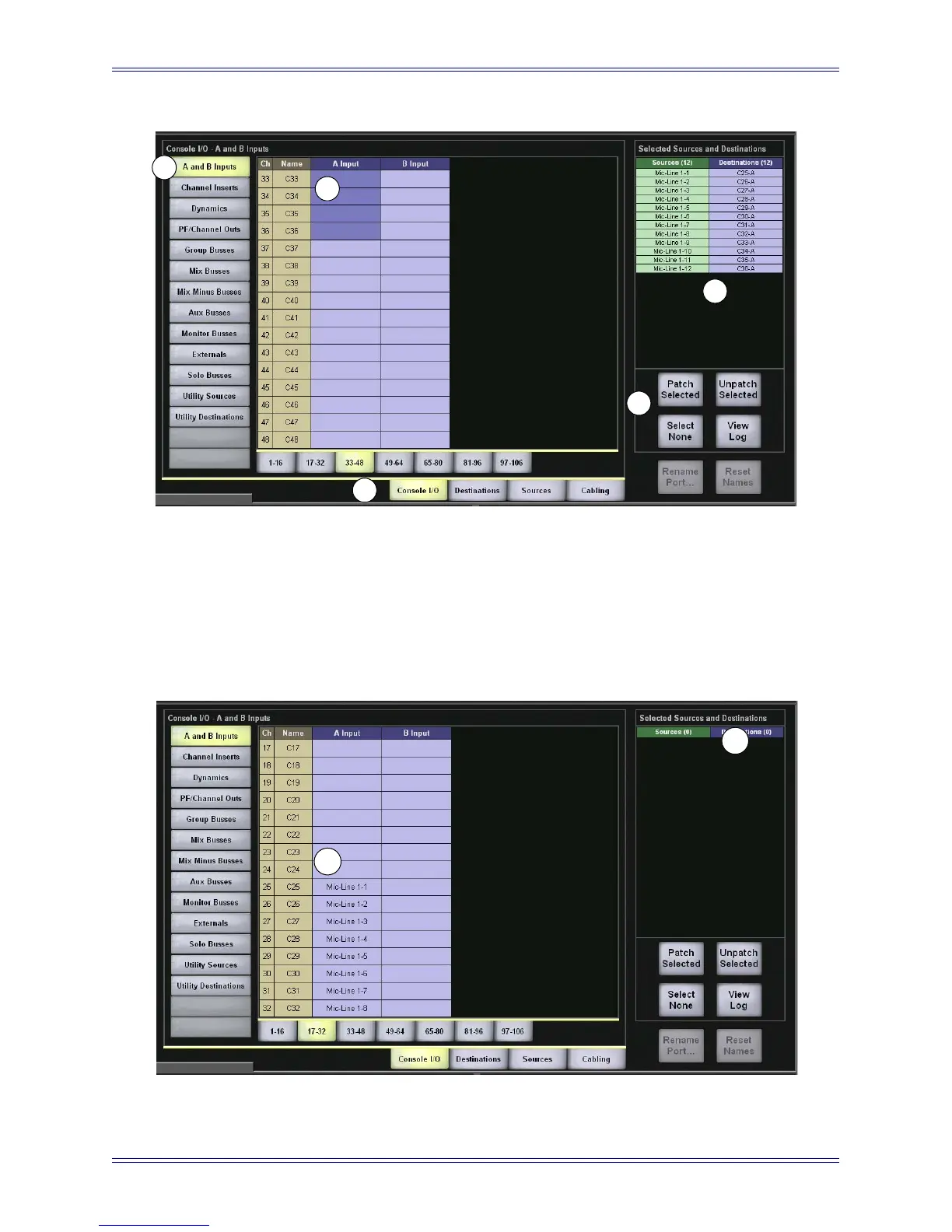

Figure 4-20 Selecting Destination Channels
9. Click the Patch Selected button (5 in Figure 4-20) to make the connection.
The sources and destinations appear in the A Input and Name columns, re-
spectively (1 in Figure 4-21). The sources and destinations are cleared from
the Selected Sources and Destinations area (2 in Figure 4-21).
Figure 4-21 Mic Patch Complete
1
2
3
4
5
1
2
