Euphonix Max Air Mixing Console Operation Manual Touchscreen
83
4.10.2 Screen
Select the Screen tab to configure the meters that will appear across the top and right
side of the Touchscreen. There are eight meter banks, each of which can contain up to
eight channels.

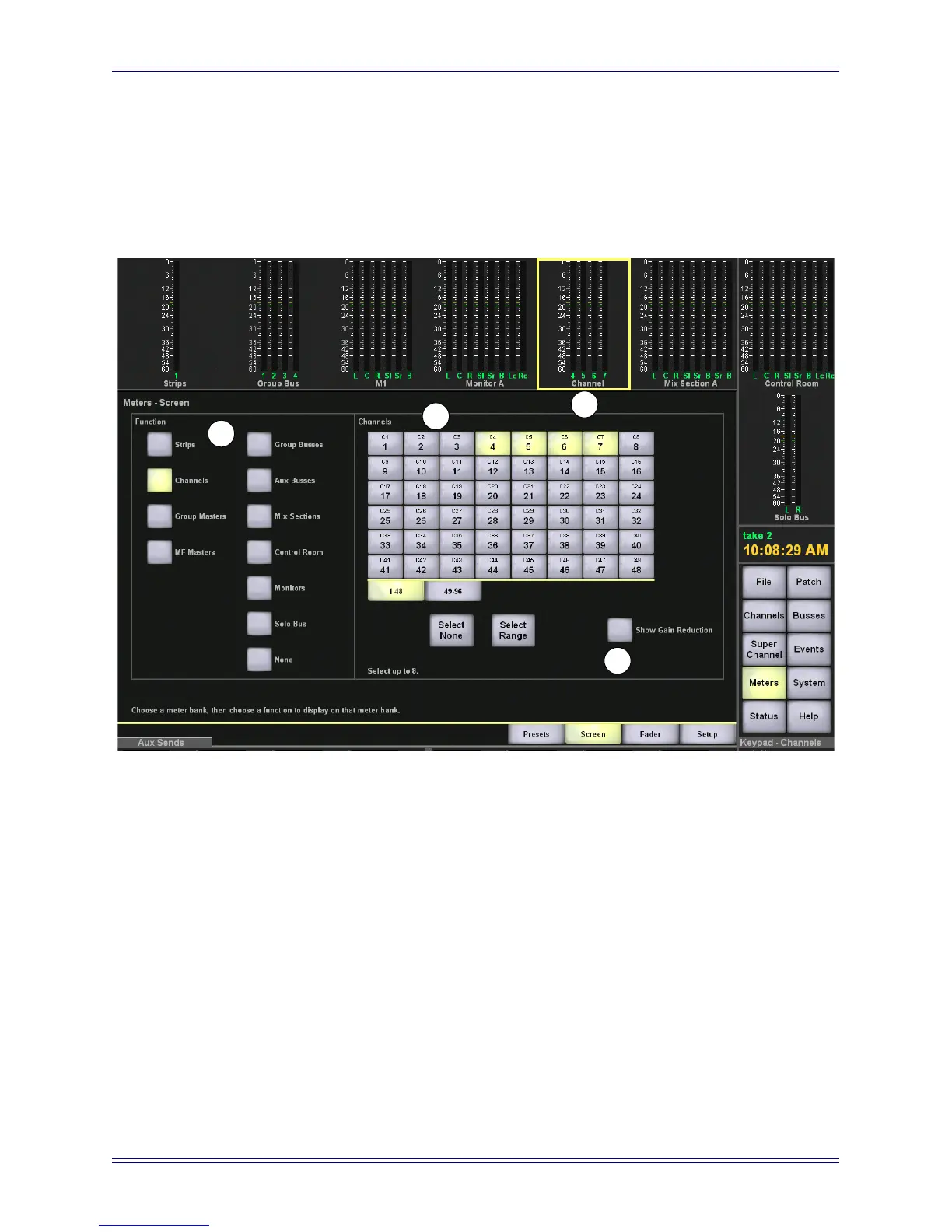

Figure 4-40 Meters-Screen Popup with Meters Display
The Function section (1 in Figure 4-40) lists the types of meters that can be displayed.
The Channels function (2) is shown in Figure 4-40, which is representative of the inter-
face for the other functions. The Strips, Channels, Group Masters, and MF Masters
functions have a Show Gain Reduction button (3) which, when activated, displays the
amount of gain reduction applied by the compressor.
Select a meter bank on the top or right of the Touchscreen to assign the meter charac-
teristics to. The meter bank highlights with a yellow rectangle (4).
1
2
3
4
