Euphonix Max Air Mixing Console Operation Manual Touchscreen
67

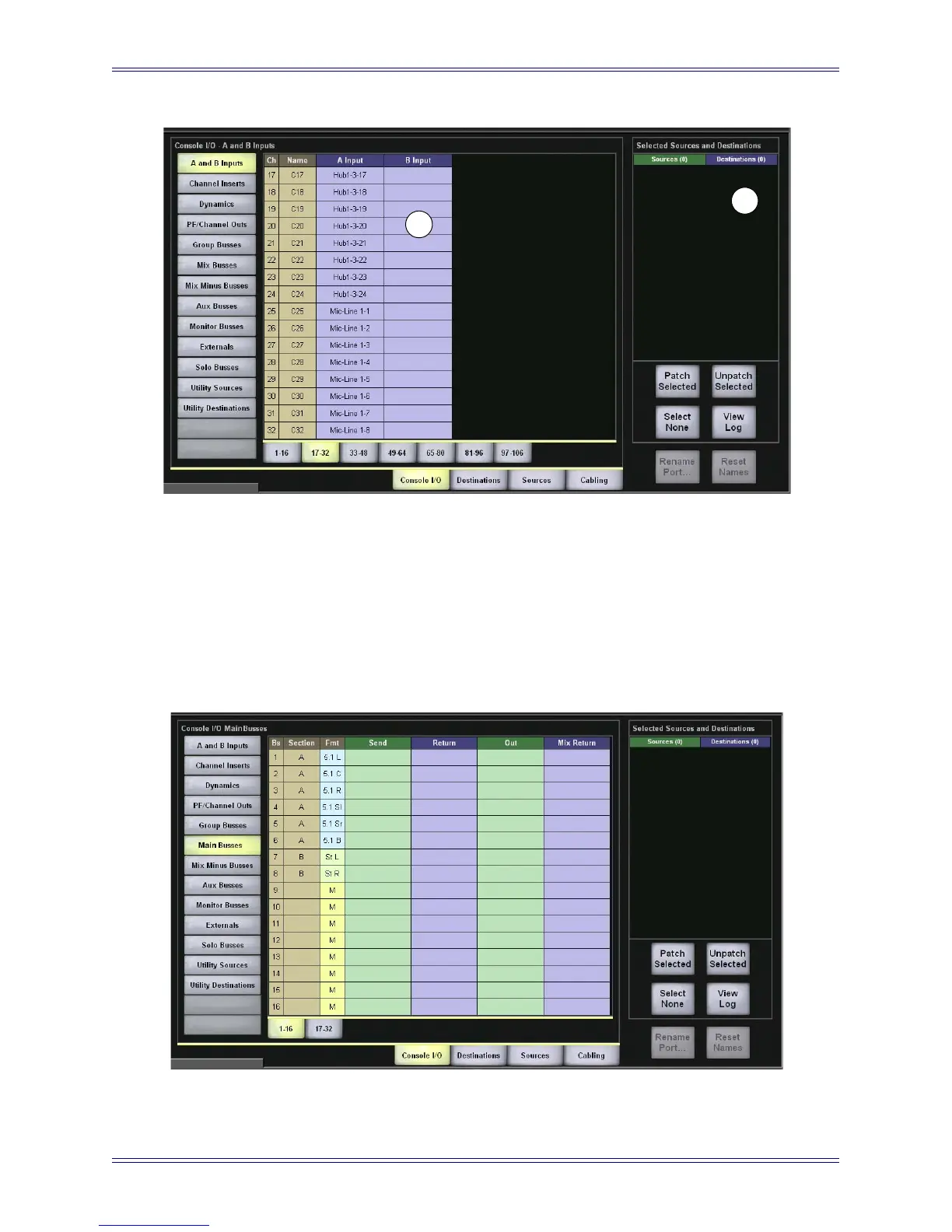

Figure 4-23 R-1 and Mics Patched
4.4.2 Main Bus Send/Return
Select the Console I/O category and then select the Main Busses sub-category. Each
Main bus has a send and return. Figure 4-24 shows the first six sends (a 5.1-channel
Main section) routed to channels 41–46 A inputs. The insert is switched in/out from the
Bus Masters Config Page (see Bus Inserts on page 122).
Figure 4-24 Main Bus Send and Return
1
2
