Euphonix Max Air Mixing Console Operation Manual Center Section
129
7.2 Monitors and Control Room
The Max Air monitor system accommodates multi format outputs up to 7.1 channels.
There are seven monitor outputs (Figure 7-6):
• The Main Control Room and Mon A (7.1 max)
• Alt 1 (5.1 max)
• Alt 2, Mon B, C, and D (stereo)
Mon A, B, C, and D are used for studio speaker/Cue feeds.

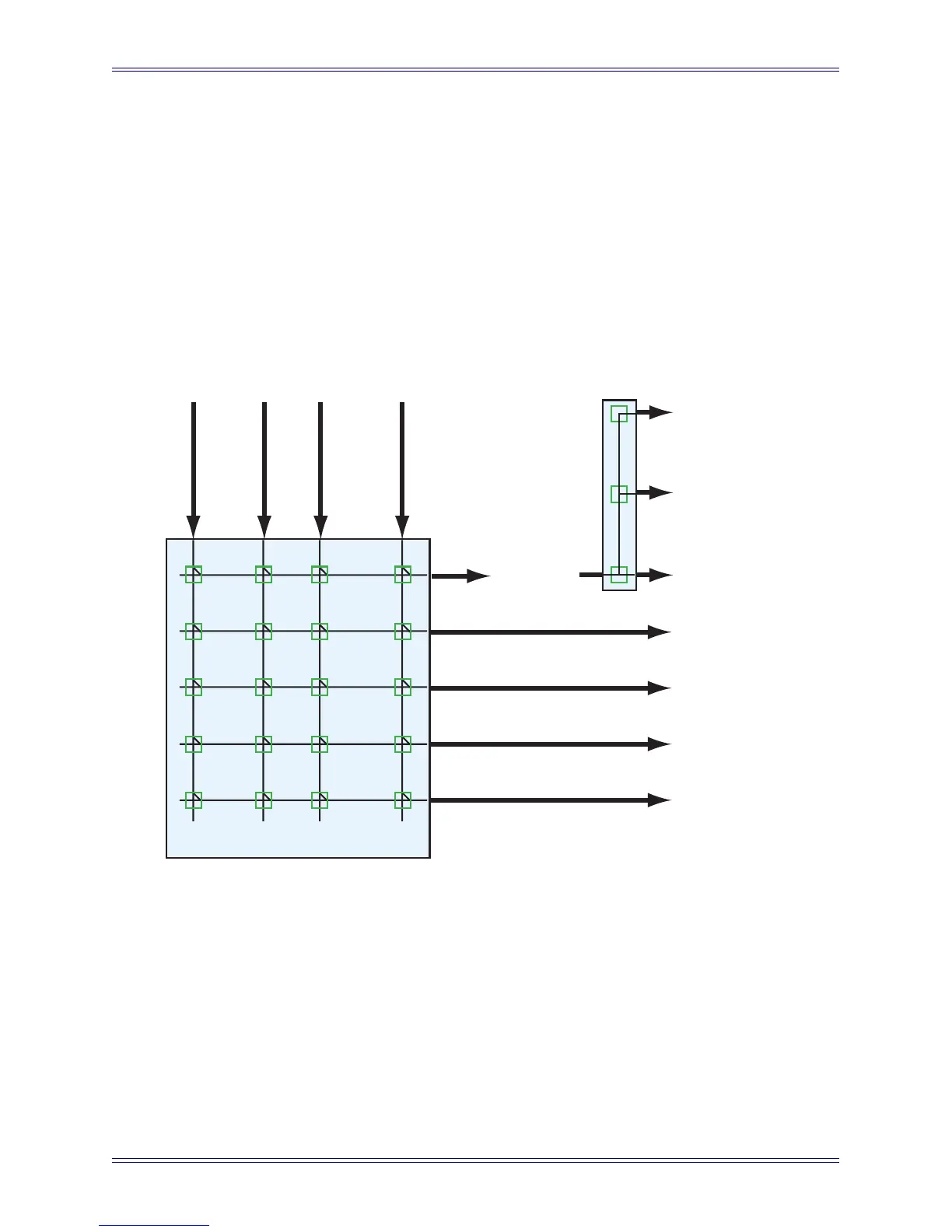

Figure 7-6 Monitoring Matrix
Source selection for the monitor output can either intercancel (allows only one source
to a monitor output), or sum (allows multiple sources).
Externals Main Sections Aux Snds
CR
Monitors
8 Out (max 7.1)
Mon A
8 Out (max 7.1)
Alt 2
Stereo
Alt 1
6 Out (Max 5.1)
Main
8 Out (max 7.1)
Mon B
Stereo
Mon C
Stereo
Mon D
Stereo
Monitor Selector
Rtn
Out
