Euphonix Max Air Mixing Console Operation Manua
l
Touchsc
reen
69
4.5
Busses
See Chapter 6:
Busses
.
4.6
System
The System View has five tabs:
Externals
,
*Knobset
,
Mixer Model
,
Preferences
, and
About
.
4.6.1
Externals
Select the
Externals
tab from the System View to conf
igure the Externals in the same
way as Main and Group busses.

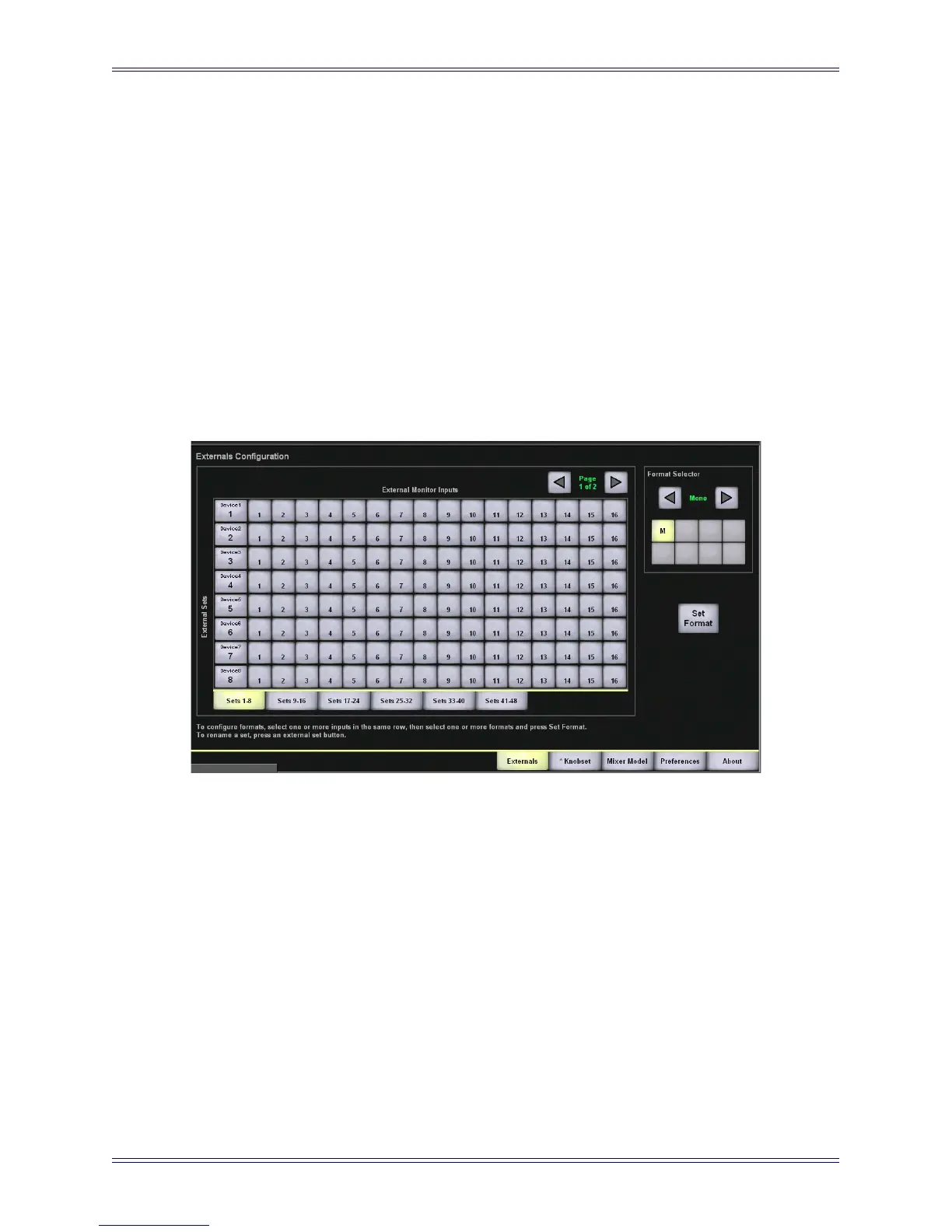

Figure 4-25
Externals View
68
70
