Euphonix Max Air Mixing Console Operation Manual Event System
174
8. In the Outputs area, touch the <Press to Add Output> field and select GPO
from the Add Output Event Popup (see Figure 10-3)
Enter a description by selecting the Description field and touching the Edit
Name button.
9. Touch the field next to Output Number and type 1 in the keyboard popup.
10. Touch the field next to Active State and select Closed from the Active State
Popup.
11. Touch the field next to Pulse Length and type 10 in the keyboard popup.
12. Touch the field next to Machine and select GP132 One from the Machine Popup
(Figure 10-9).
The Events View should now look similar to Figure 10-10.

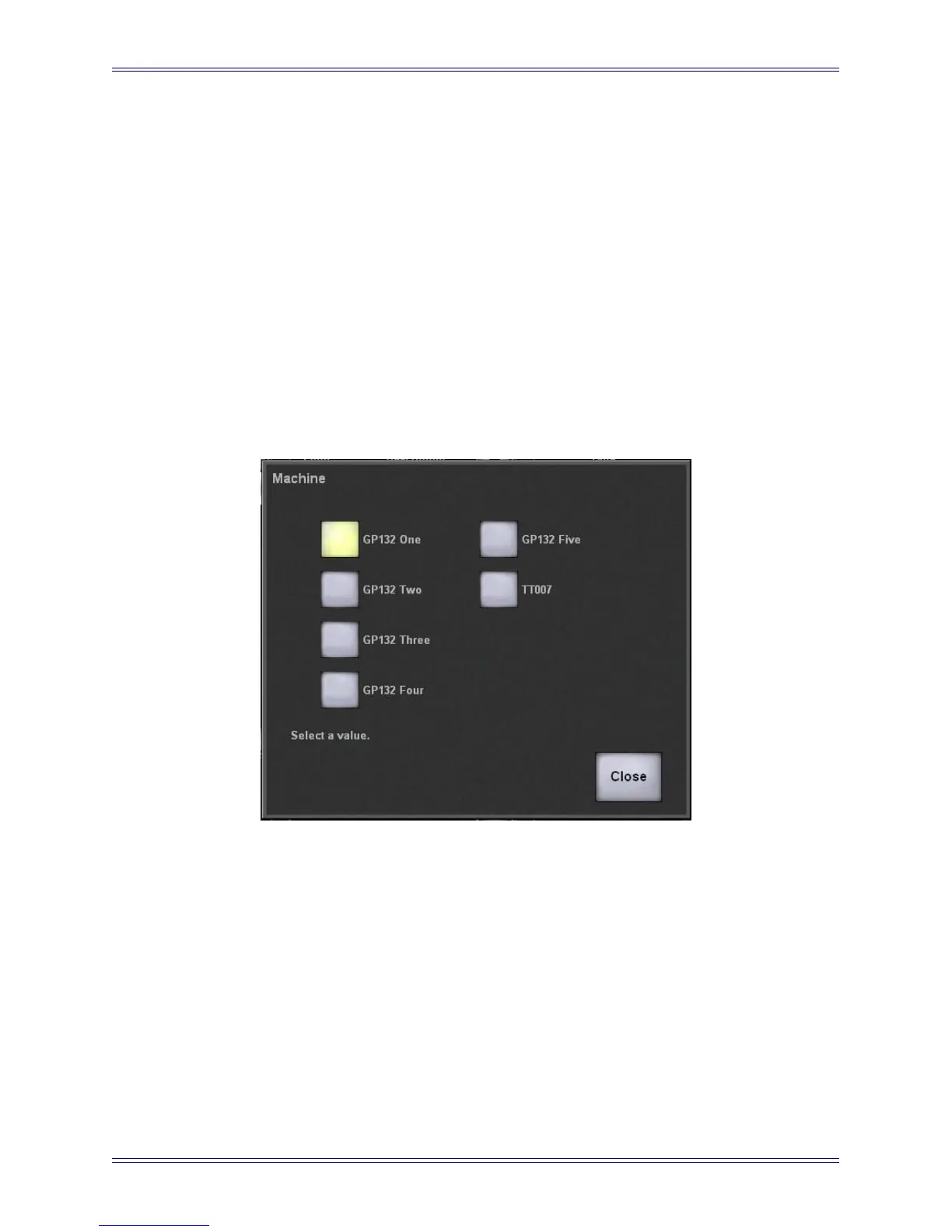

Figure 10-9 Machine Popup
