Euphonix Max Air Mixing Console Operation Manual Channels and Strips
107
5.5.2 Main Bus Routing
There are 16 Main sections each comprised of individual main busses in a pan format.
For example, one section with a stereo format uses two busses, another section with a
5.1 format uses six busses. See Configuring Main and Group Busses on page 110 for
main section setup. The CM404 center section has bus master functions (see Chapter 6:
Busses).

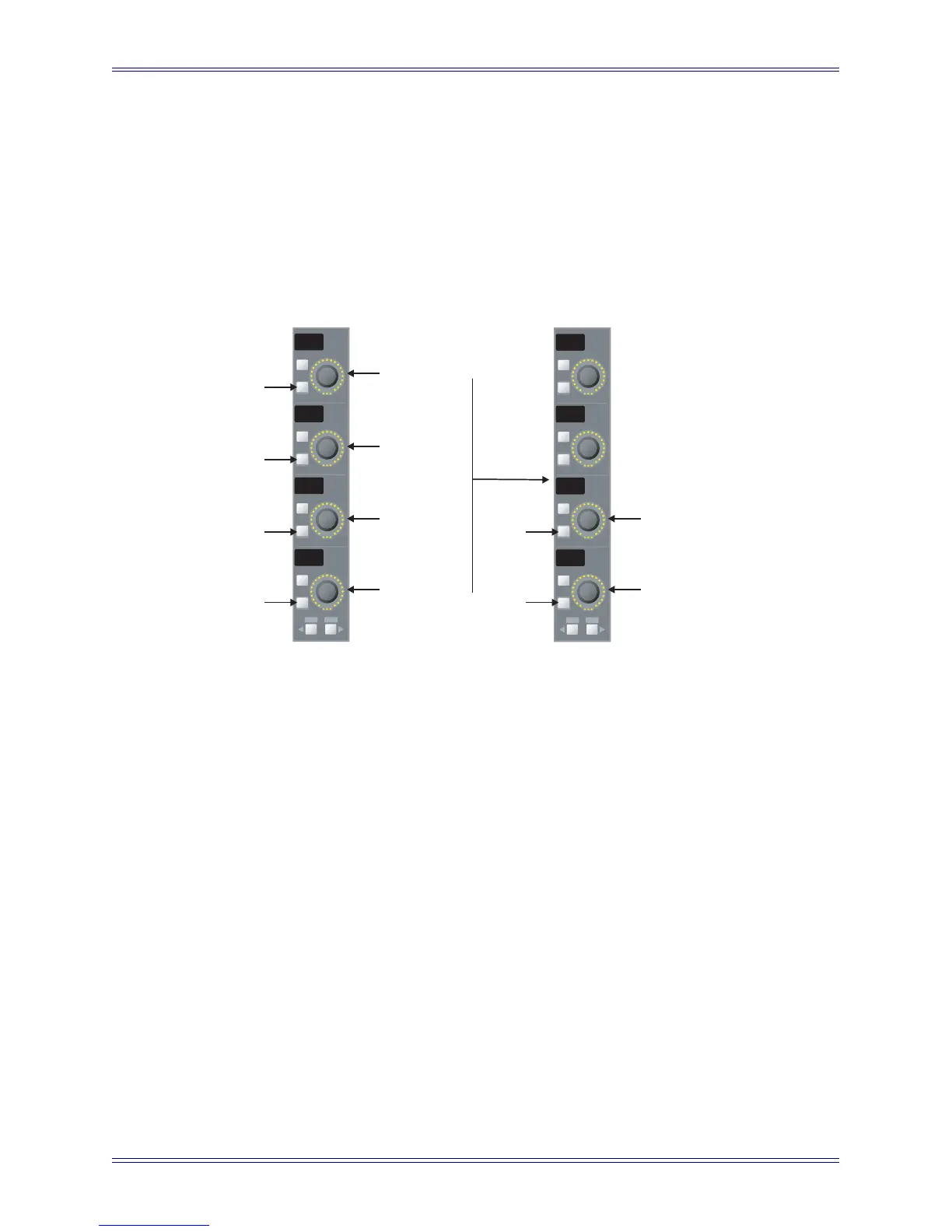

Figure 5-17 Main Section Routing Knobset
To route the post-fader channel signal to a Main section, press the Main Knobset Select
key. This assigns the first four Main sections to the knobs if they have been defined. If
they have not been defined, the knob display is blank. Press the X key to display addi-
tional Main Section Routing pages if there are more than four.
• The lower key to the left of each knob turns that section on/off.
• Pressing the knob displays the individual busses of that main section on the
knobs. The lower key to the left of the knob toggles that bus on/off.
Hold the Main key and press the Pan key to key Pan in/out for the Main sections. The
Pan key lights dimly in other modes to show that Pan is active in main and/or group bus
routing. The Main key also lights dimly in other modes to show that the channel is as-
signed to one or more Main sections.
On
On
On
On
Select
Select
Select
Select
Copy Paste
D
C
B
A
On
On
On
On
Select
Select
Select
Select
Copy Paste
R St
L St
Main Sections Main Busses
Expand Section
Expand Section
Expand Section
Expand Section
To Main Sections
To Main Sections
A
ssign
Section D
A
ssign
Section C
A
ssign
Section B
A
ssign
Section A
Assign R
Assign L
