Euphonix Max Air Mixing Console Operation Manual Touchscreen
62

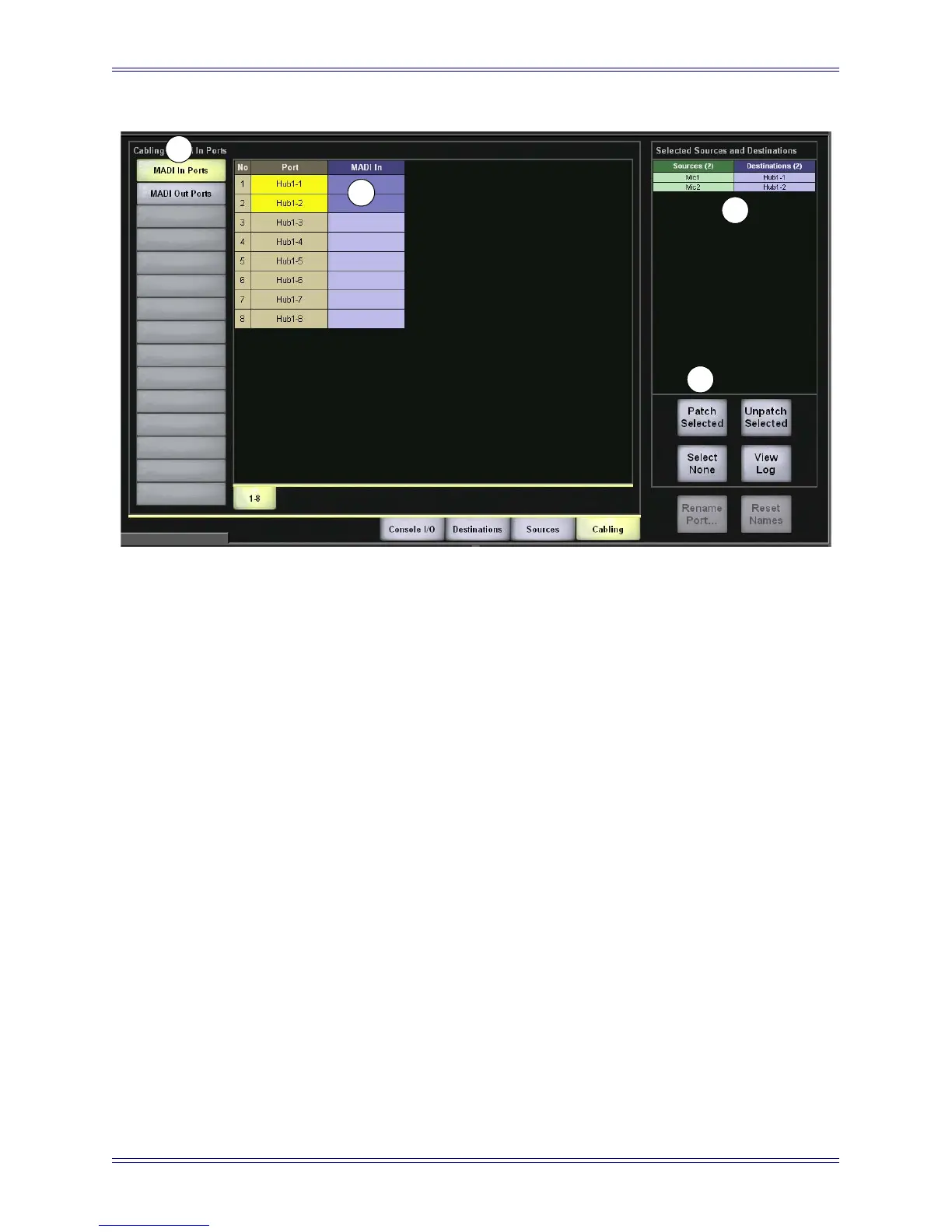

Figure 4-18 Cabling: MADI In Port
6. Touch the Patch Selected button (4 in Figure 4-18) to make the patch.
The Patch system now knows how the two mic/line interfaces are connected so the
proper input controls appear at the top of the channels they are connected to.
Because Hub1-1 and Hub1-2 have been designated as MADI connections to the Mic/
Line interfaces, touching Hub1-1 and Hub1-2 in Sources shows Device Patch in the
first 24 cells and will not allow selection unless they are unpatched.
