Euphonix Max Air Mixing Console Operation Manual Event System
166
10.6 Input
The input area has two sections: the top contains a list of inputs for all events in the
Event List (1 in Figure 10-1), the lower shows the properties of the selected input (5).
Create a new input by touching the <Press to Add Input> field at the bottom of the list.
The Add Input Event popup opens to select the input type.

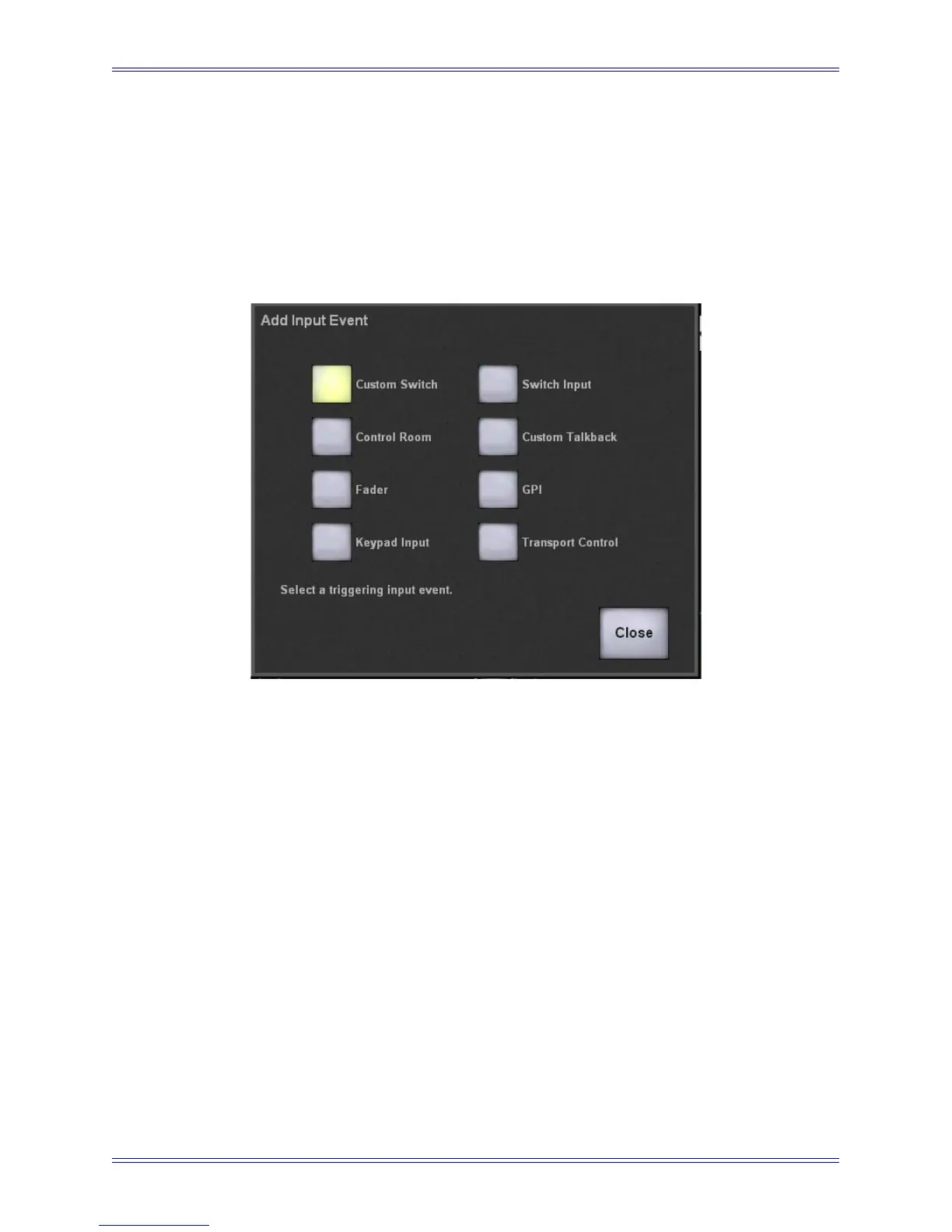

Figure 10-2 Add Input Event Popup
Select the Input Type button and touch Close. Touch the Edit Name button (4 in Figure
10-1) and enter a description in the keyboard popup; be sure to identify the event it per-
tains to.
The properties area (5 in Figure 10-1) displays the settings for the selected input type
(see Table 10-1 and Table 10-2 for settings for each input/output type). Modify the set-
tings by touching it and selecting a setting from the popup.
