Euphonix Max Air Mixing Console Operation Manual Touchscreen
63
4.4 Patching Examples
These examples assume that the steps in Mic/Line Interface Patching on page 60 have
been successfully completed.
4.4.1 Patch 12 Mics Into Channels 25–36
Select the Sources
1. Select the Sources tab (1 in Figure 4-19).
2. Select Mic-Line 1 from the sub-categories (2 in Figure 4-19).
This displays all inputs from the first Mic-Line Interface in the Name column.
The Mic-Line Interface is connected as part of the initial studio setup.
3. Select Mic1-1–Mic1-12 from the Mic-Line column by touching and dragging
through the cells (3 in Figure 4-19).
These entries are highlighted in green in the Sources column of the Selected
Sources and Destinations area (4 in Figure 4-19). If there were more than 24
sources, additional tabs would appear to the right of the 1–24 tab.

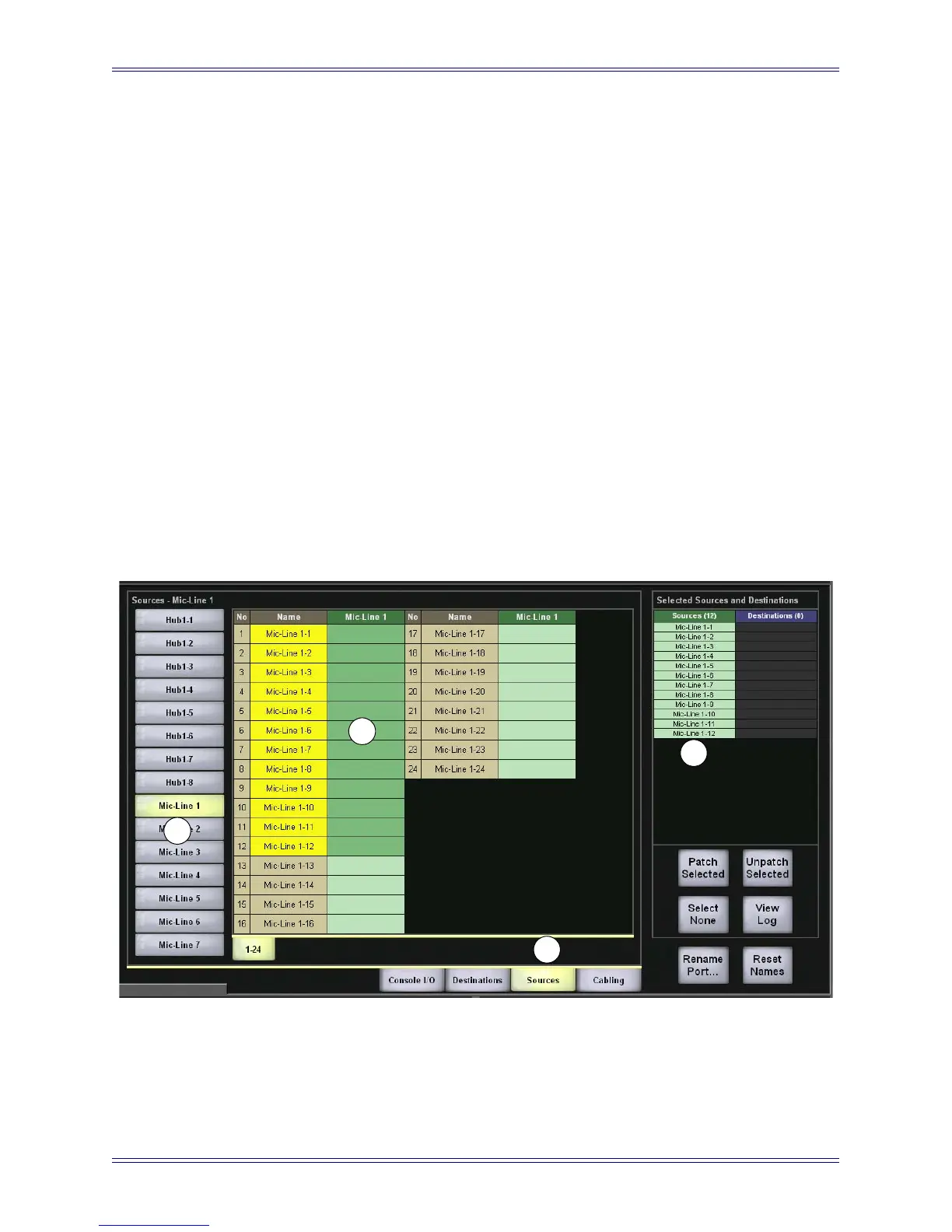

Figure 4-19 Sources View with 12 Mic-Line Sources Selected
1
2
3
4
