Euphonix Max Air Mixing Console Operation Manual Touchscreen
56

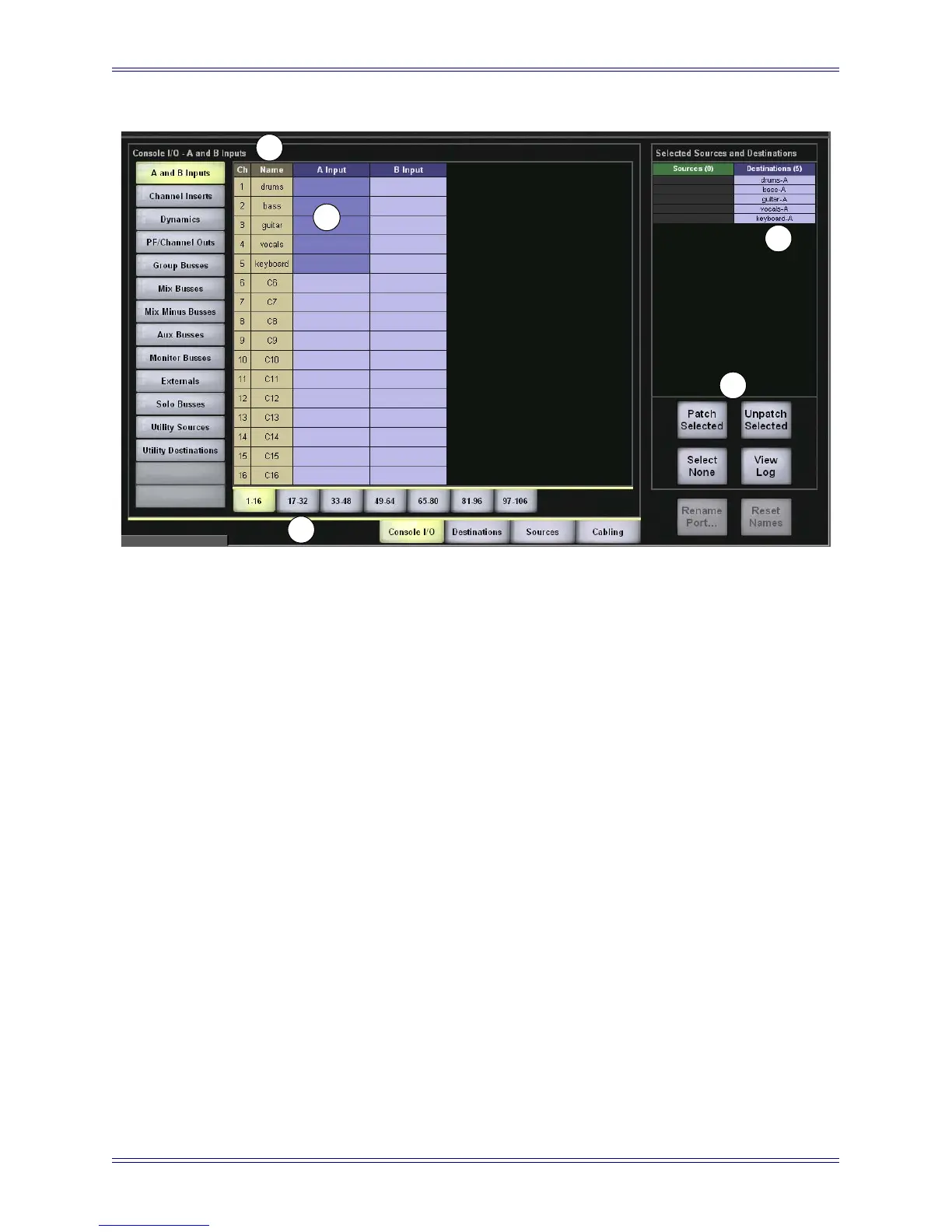

Figure 4-12 Console I/O -A and B Inputs View
The four buttons (5 in Figure 4-12) on the lower-right perform the following functions:
• Patch Selected: Patches selected patchpoints (3 in Figure 4-12)
An error message appears if the sources are not properly matched to the desti-
nations. There must be an equal number of sources and destinations or one
source to multiple destinations.
• Unpatch Selected: Unpatches selected patchpoints
• Select None: Deselects all patchpoints
• View Log: Shows a log of failed patches
1
2
3
4
5
