Euphonix Max Air User Manual

Euphonix Max Air Mixing Console Operation Manual Touchscreen
76
4.7.5 Spill Area
Spill allows Control Groups and Multi Format Masters to spill their slaves to a defined
area so they can be individually accessed. See Spill on page 153 for details.
To create a Spill area:
1. From the Main Menu, press the Channels button.
2. Select the Spill tab.
3. Select the strips to include in the Spill area.

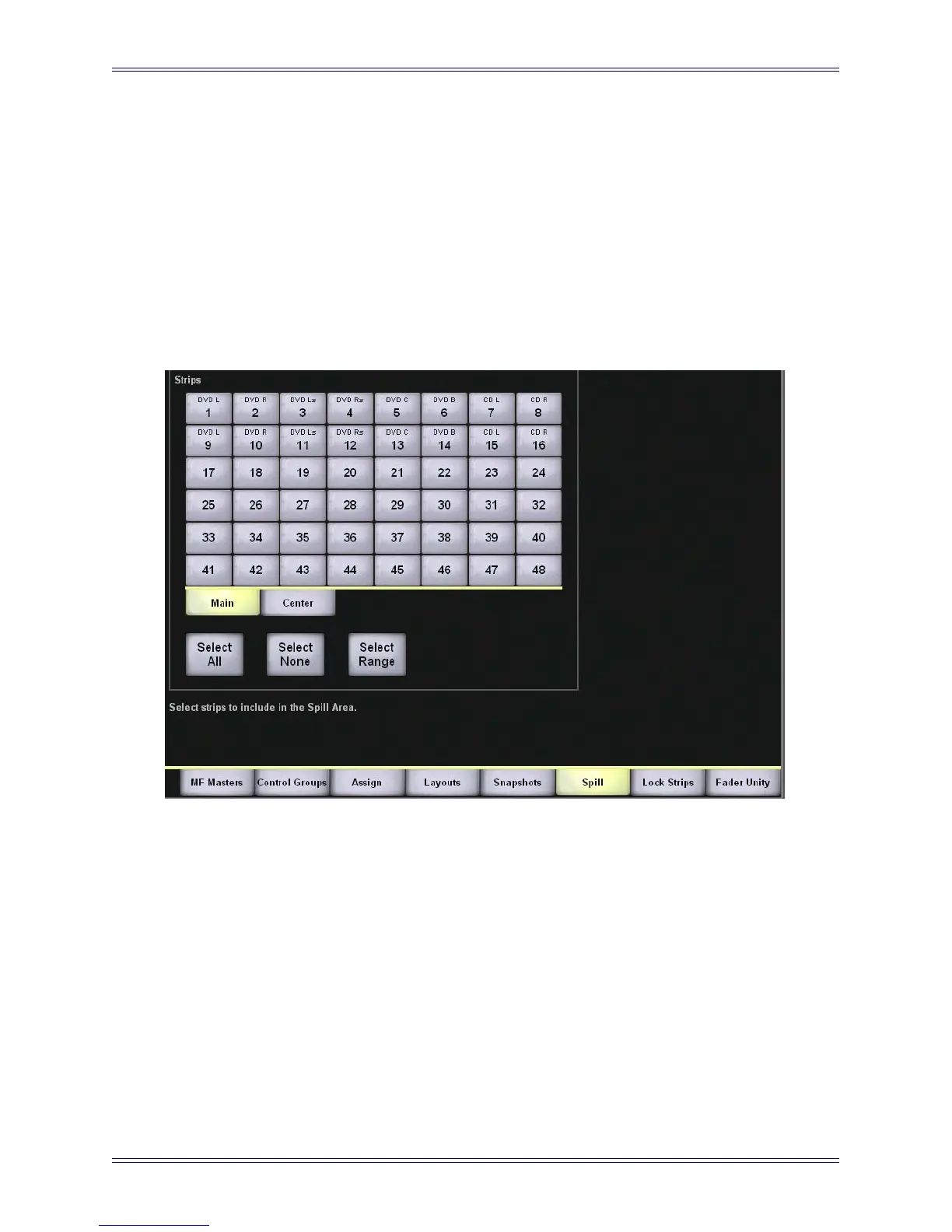

Figure 4-31 Spill Area function
4.7.6 Lock Strips
Select the Lock Strips tab to display the Lock Strips View (Figure 4-32), which pro-
vides the ability to prevent strips from being affected by Layout recall.

Euphonix Max Air Specifications

General

Brand	Euphonix
Model	Max Air
Category	Music Mixer
Language	English
