Euphonix Max Air User Manual

Euphonix Max Air Mixing Console Operation Manual Layouts and Snapshots
159

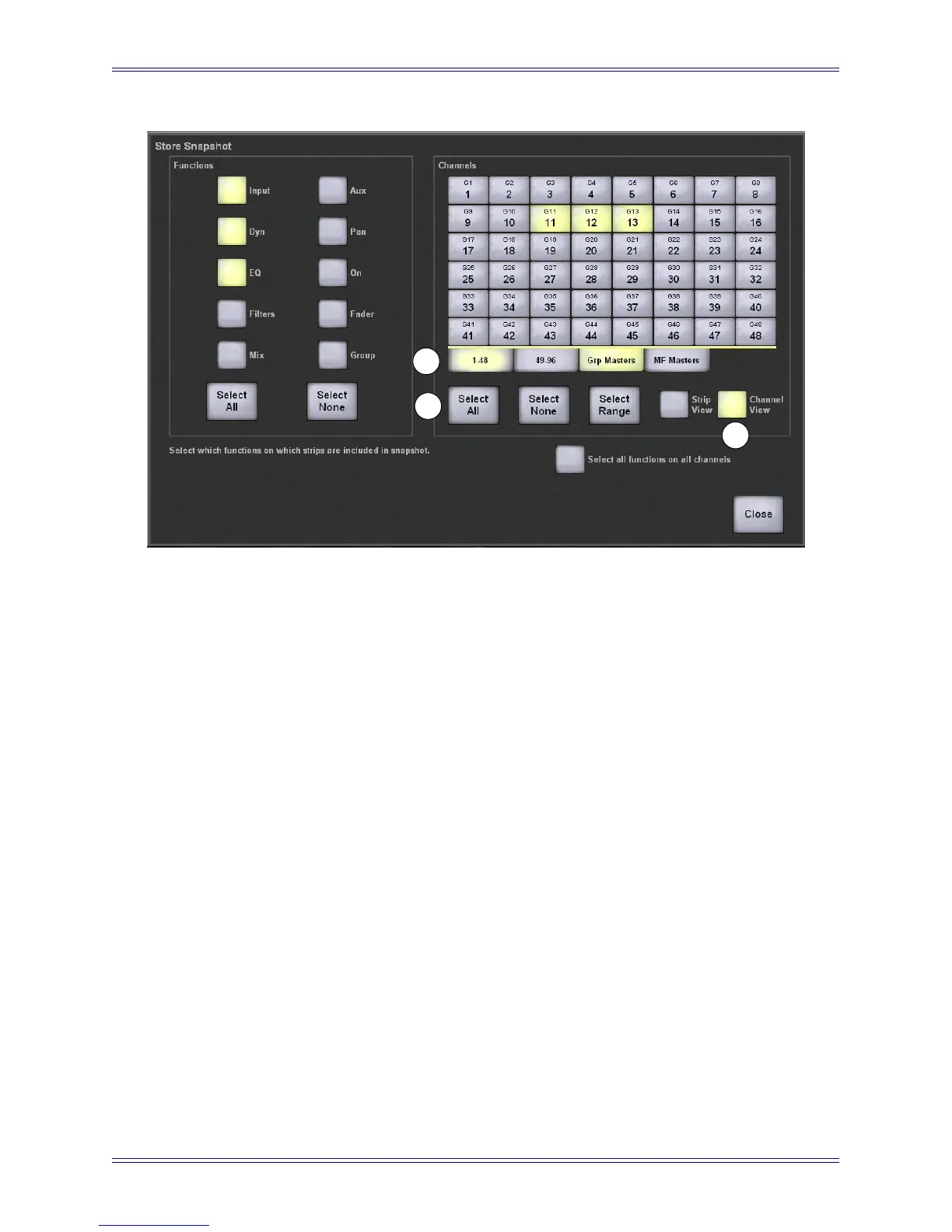

Figure 9-5 Store Snapshot: Channel View
Use the Select All, Select None, and Select Range buttons (3) to assist your selection
(see page 75). Touch the Close button to store the Snapshot.
9.2.2 Recall
Select an existing Snapshot (those with names or SS#) and touch the Recall button to
assign the stored values to the designated strips/channels.
9.2.3 Name
Touch the Name button to name the Snapshot in the keyboard popup (eight characters
maximum).
9.2.4 Clear
Select an existing Snapshot (those with names or SS#) and touch the Clear button to
delete the Snapshot and return the name to a number.
1
2
3
