Euphonix Max Air Mixing Console Operation Manual Touchscreen
66
Patch the Multitrack Returns Into Channels 1–24
1. Select the Sources tab (1 in Figure 4-22).
2. Select the Hub1-3 sub-category (2 in Figure 4-22).
3. Touch and drag through the first 24 cells in Hub1-3 column (3 in Figure 4-22).
These cells are highlighted and their names appear in the Sources column in
the Selected Sources and Destinations area on the right (4 in Figure 4-22).

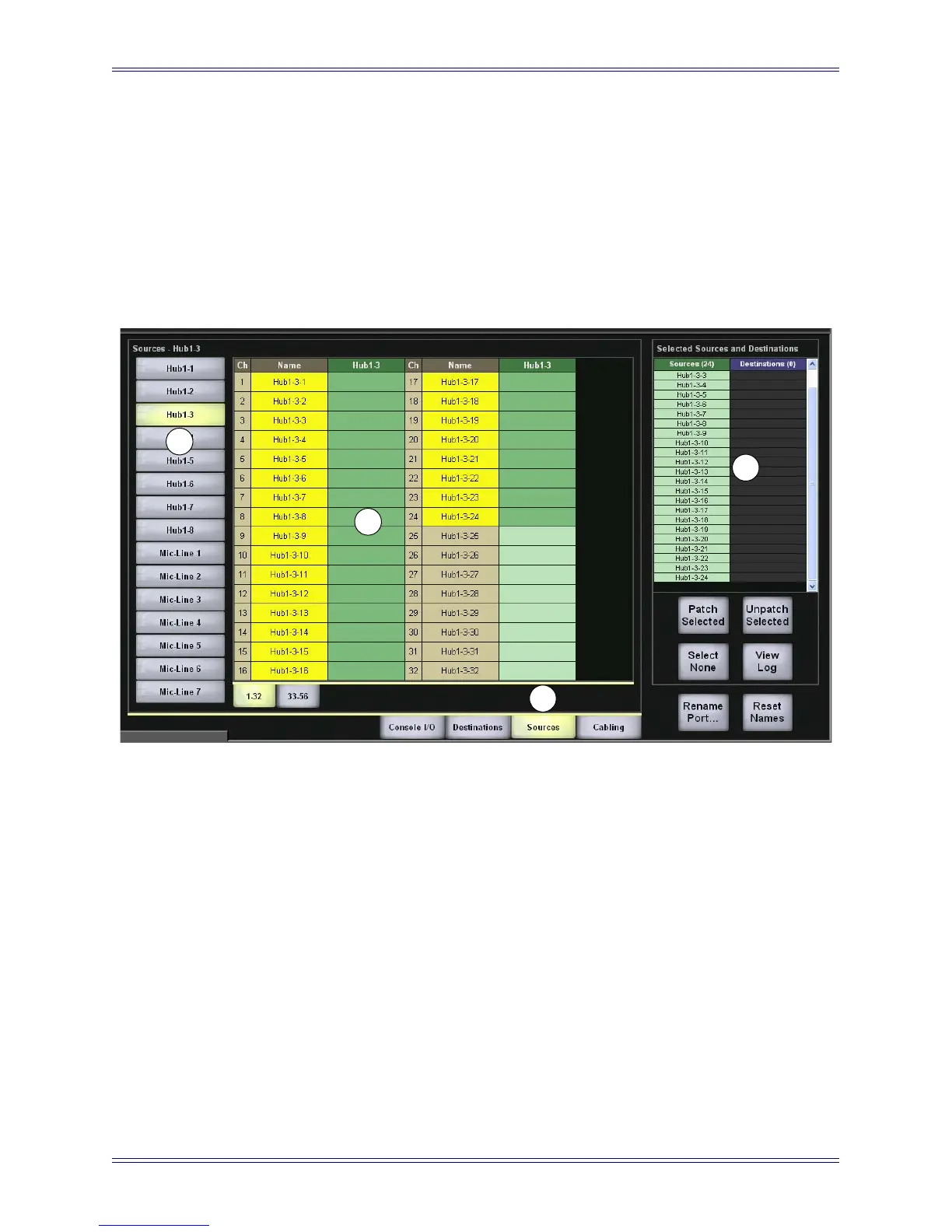

Figure 4-22 Sources Selected
4. Select the Console I/O category.
5. Select the A and B Inputs sub-category.
6. Touch and drag through the first 24 cells in the A Input column.
These cells are highlighted and their names appear in the Destinations column
in the Selected Sources and Destinations area on the right.
7. Touch the Patch Selected button to make the connection.
The sources and destinations appear in the A Input and Name columns, re-
spectively (1 in Figure 4-23). The sources and destinations are cleared from the
Selected Sources and Destinations area (2 in Figure 4-23).
After connecting the 12 mics and the R-1 returns, the Console I/O A and B In-
puts View is shown in Figure 4-23.
