5.2.12 In/Out Keys
There is one In/Out key for each set of eight strips. When this key is on, the Ins/Inp,
Dyn, EQ and Filt keys act as function in/out keys. When the In/Out key is off, the Ins/
Inp, Dyn, EQ, and Filt keys return to their knobset selection mode but remain half-lit
if the function has been switched in.
5.2.13 Expand
There is one Expand key for each set of eight strips. Expand has not been implemented
in v1.0 software.
5.3 Channel Processing Functions
Max Air provides flexible and complete processing functions for each channel: Input,
Dynamics, EQ, Filters, Panning, Aux Busses and Routing.
5.3.1 Inputs
Press the Ins/Inp Knobset Select key to display the input controls on the knobs. Press
the X key to display the B input page with the same controls as the A input.
Each channel has an A and B input. The Inpt knob (bottom) can feed A, B, or A+B to
the channel. These two inputs can be used in many ways but a common application is
one Mic and one Line. Another common use is for backup mic inputs: Channel 1A is
from the main mic while 1B is from the backup. The Inpt knob then acts as a main/
backup mic key.

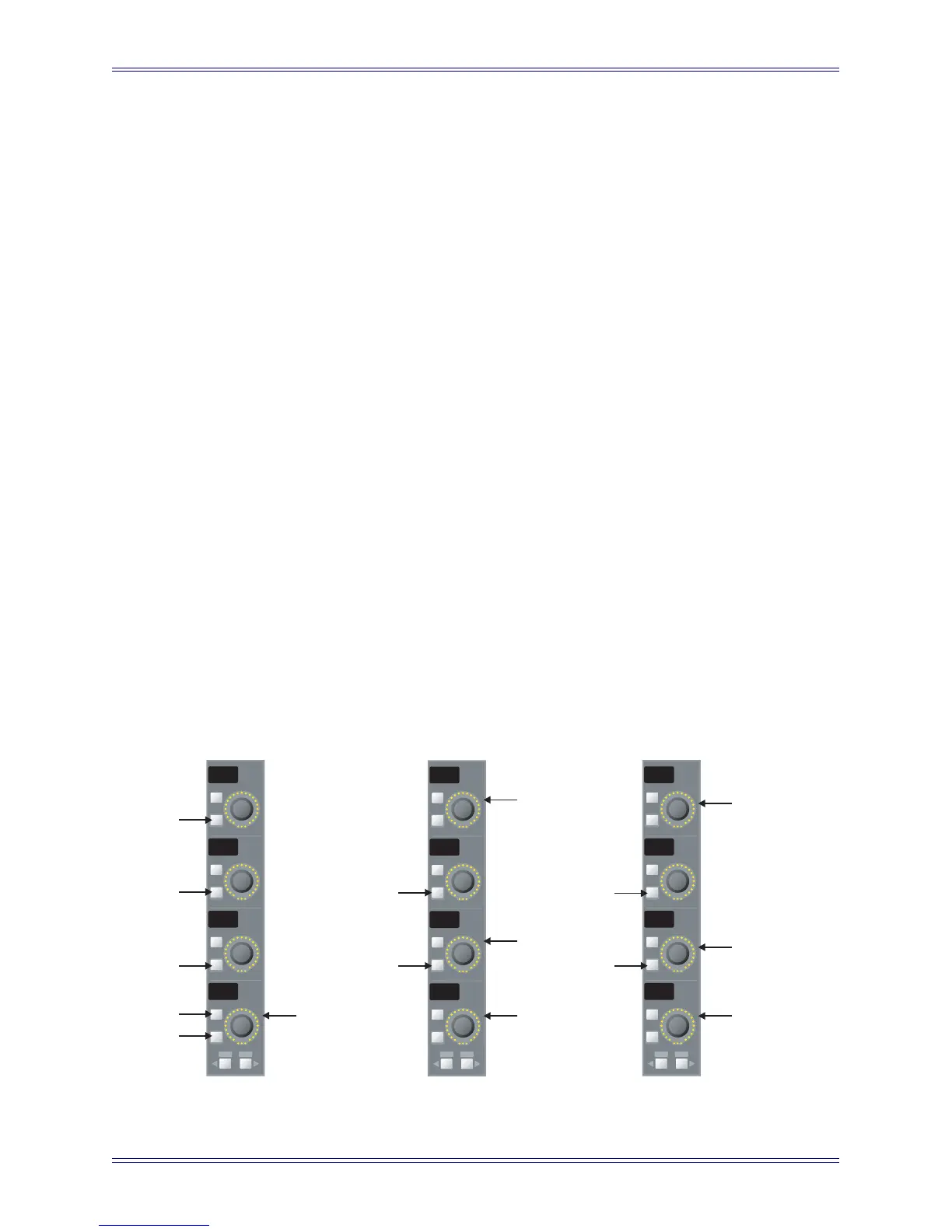

Figure 5-8 Mono Input knobsets
On
On
On
On
Select
Select
Select
Select
Copy Paste
HiZ
48v
HPF
Gain
On
On
On
On
Select
Select
Select
Select
Copy Paste
Atrm
Aphs
Dly
Inpt
On
On
On
On
Select
Select
Select
Select
Copy Paste
Btrm
Bphs
Dly
Inpt
Page 1 Page 2 Page 3
Input Select
Delay
Mic Gain
B Input Trim
Delay
Input Select
B Input
Input
On/Off
On/Off
On/Off
On/Off
On/Off On/Off
On/Off
A Input Trim
