Euphonix Max Air Mixing Console Operation Manual Layouts and Snapshots
157
9.2 Snapshots
A Snapshot stores the settings of selected channel functions, even if they are not currently
assigned to the console surface. These settings can then be recalled to reset the console.
For example, a Snapshot that contains Channel 3’s EQ and Dynamics will restore the
values to both functions, regardless of the current function assigned to the knobset.
Snapshots and Layouts naturally complement each other because their information,
while related, does not overlap: Layouts map channels to strips and Snapshots determine
all, or part of, their channel settings. Max Air can store a maximum of 240 Snapshots.
When no Snapshot is selected, all the function buttons are disabled.

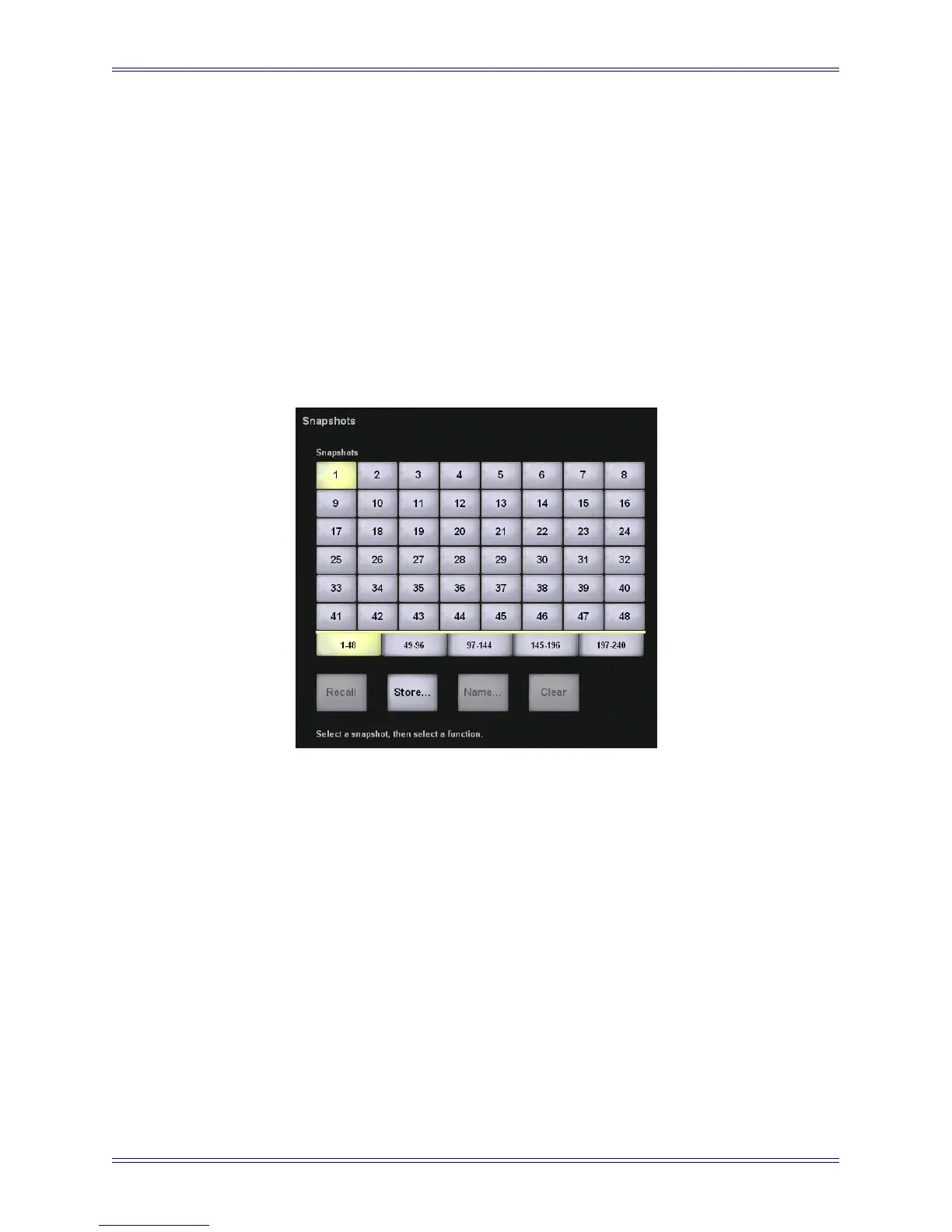

Figure 9-3 Snapshots View
9.2.1 Store
Select a Snapshot button to create. If it is an empty Snapshot (labeled only with a num-
ber), only the Store button is illuminated while Recall, Name, and Clear are dis-
abled.
Touch the Store button to create the selected Snapshot in the Store Snapshot popup.
From the left of the Store Snapshot popup (Figure 9-4 and Figure 9-5), select the func-
tions to include in the Snapshot (1 in Figure 9-4). Use the Select All and Select None
buttons to assist your selection (2). Use the Select all functions on all channels button
to include the entire system (3). Select either the Strips View or Channels View but-
tons (discussed below).
Although a Snapshot cannot be modified, use the following technique to achieve the
same functionality:
