Euphonix Max Air Mixing Console Operation Manual Touchscreen
61
1. Select the Cabling tab (1 in Figure 4-17).
2. Select the MADI Out Ports sub-category (2 in Figure 4-17).
The list shows seven Mic/Line Interfaces but configure only those wired to the
SH612 Studio Hub (i.e., Mic1 and Mic2).
3. Touch and drag through the cells next to Mic1 and Mic2 in the MADI Out
column (3 in Figure 4-17).
The cells highlight green and the names appear in the Sources column of the
Selected Sources and Destinations area (4 in Figure 4-17).

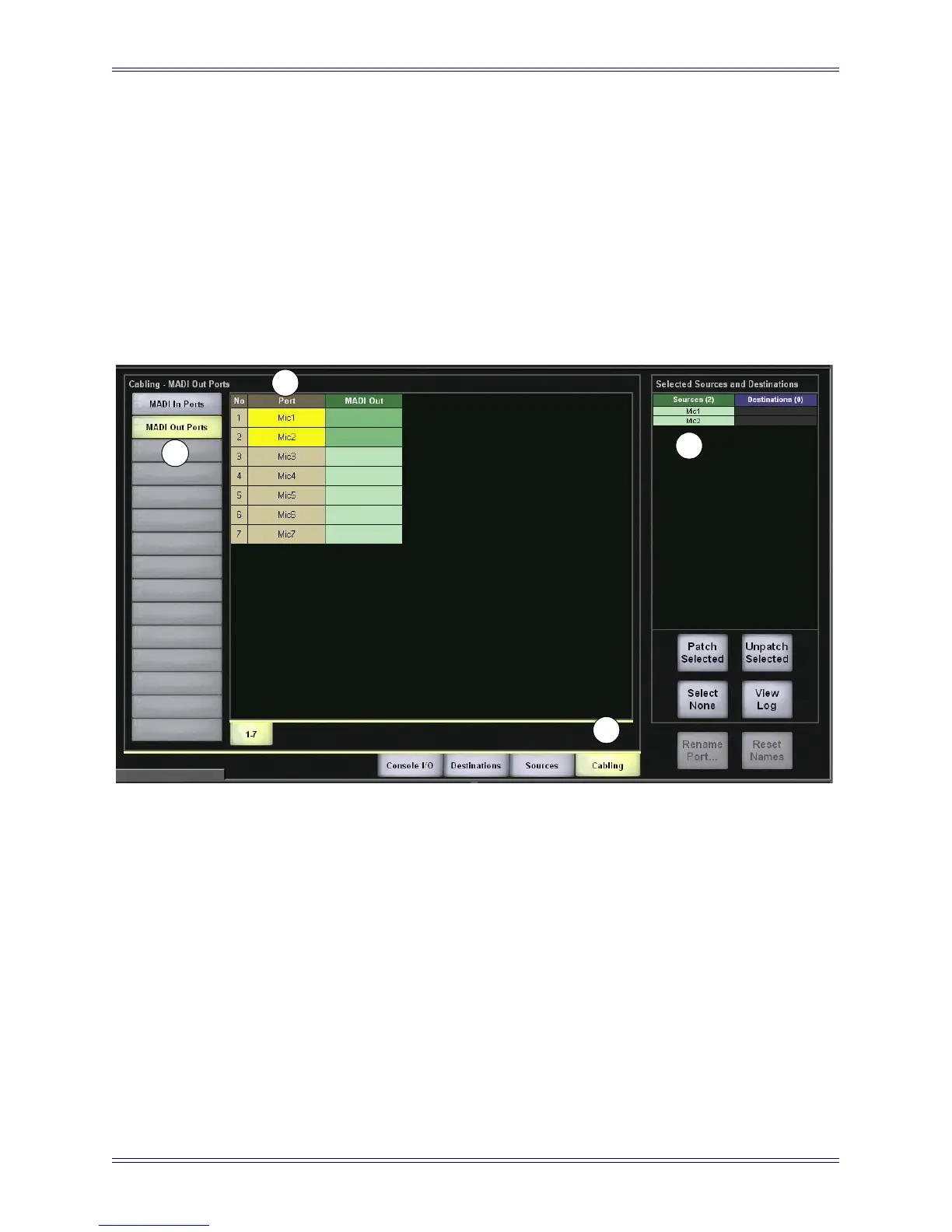

Figure 4-17 Cabling: MADI Out Port
4. Select the MADI In Ports sub-category (1 in Figure 4-18).
5. Touch and drag through the cells to the right of the two Hub1 inputs Hub1-1
and Hub1-2 (2 in Figure 4-18).
The cells highlight green and the names appear in the Destinations column of
the Selected Sources and Destinations area (3 in Figure 4-18).
