Euphonix Max Air Mixing Console Operation Manual Center Section
137
7.3.3 Slate
Touch the Slate tab to display the Slate section.

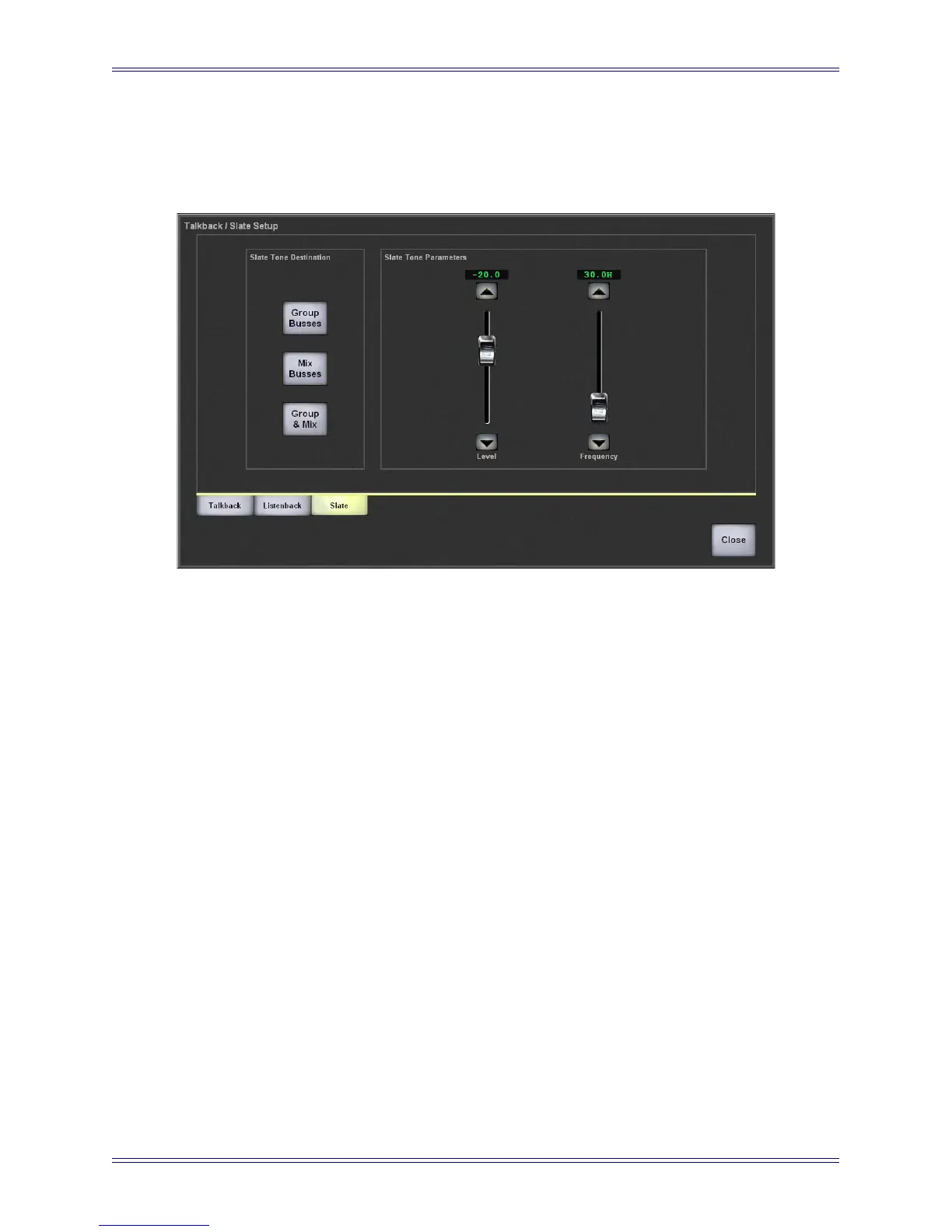

Figure 7-14 Slate Setup Popup
Set the Slate frequency by moving the Frequency fader.
Set the Slate level by moving the Level fader (111 dB of gain).
Activate the Group Busses and/or Main Busses keys to route the Slate to Group and/
or Main busses, respectively. Activate the Group & Main button to route the Slate to
group and main busses.
Since the Slate section uses the same oscillator as the Oscillator section, they cannot be
used at the same time.
7.4 Oscillator
The oscillator has three fixed frequencies at 100 Hz, 1 kHz, 10 kHz and a user-selectable
frequency. The oscillator can also generate pink or white noise and can be routed to the
group, aux, or main busses, or to all busses simultaneously. The oscillator can also be
routed to any channel or other destination using the Patch View (Patch on page 54).
