FAAC A1000 User Manual

A1000 103 532210 04 - Rev.A
92
808
20
100
ESTERNO INTERNO
min 20
OUTSIDE INSIDE
LC
A A
B
Sezione A-A
B
35
20
HVM
HVP
AF 10
35
LVM
LVP8
28
X
30
A1000
25
3
7
26
10
27
LVM
LVP
25
39
335
Sol. B
10
Sezione B-B
Sol. A
41
37
70
150
Translation of the original instructions
ENGLISH

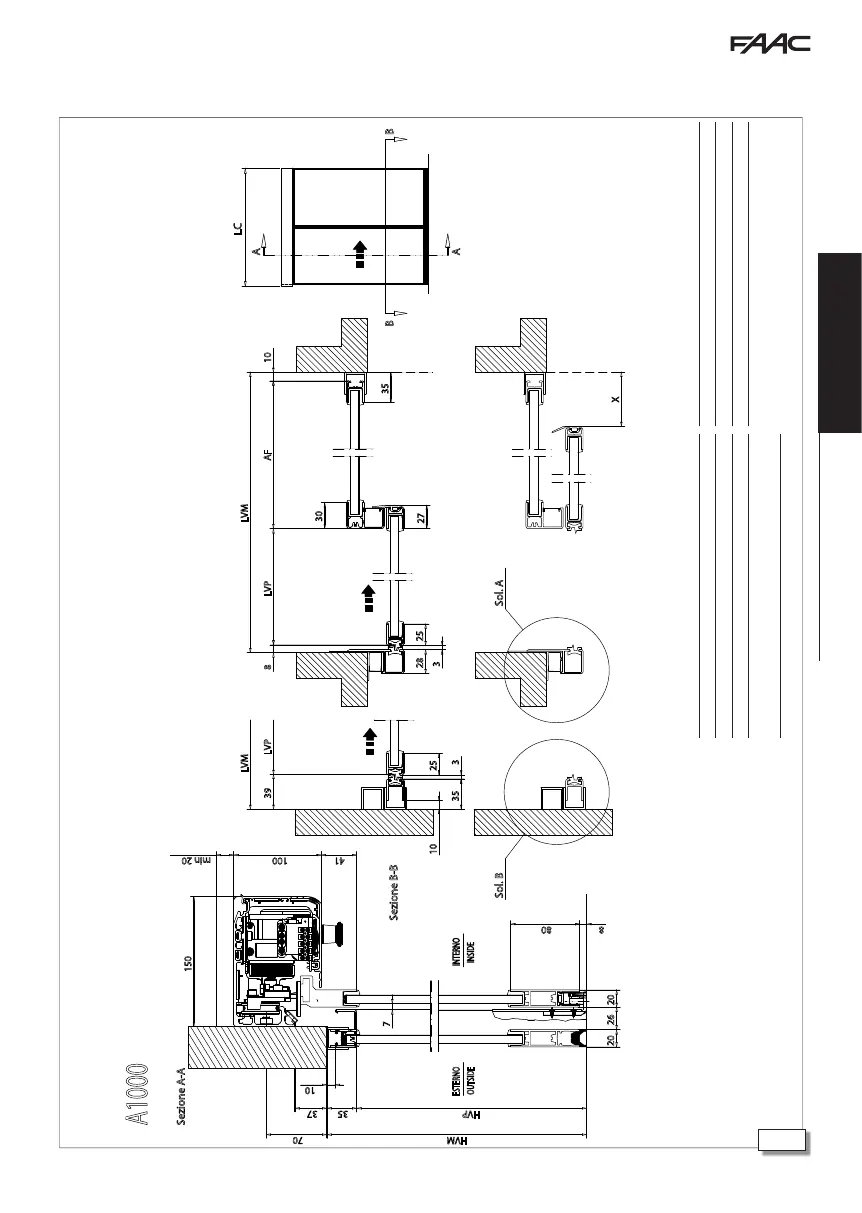

A1000 WITH ONE TK20 SLIDING LEAF AND ONE FIXED SIDE LEAF
LVP Free passage opening width LVM Wall recess width AF distance between fixed sides X distance to prevent finger trapping (only if G>8mm)
/ min. 25 mm
LC = LT casing and head section width HVP passage opening height HVM wall recess height
