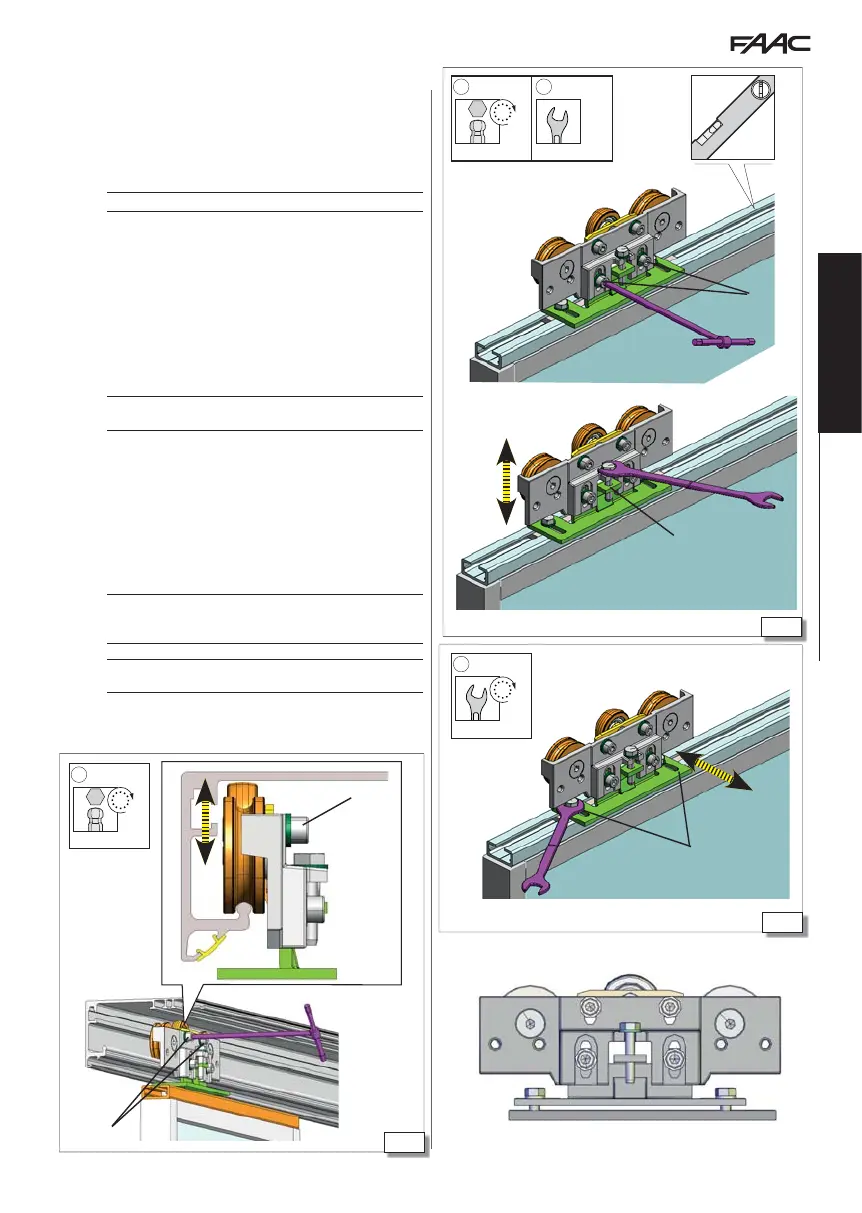

9.5 ADJUSTING THE LEAVES AND CARRIAGES
Act on the carriages to adjust height and depth of the leaves.
Adjust the counter wheel to prevent the carriage coming off the
sliding guide.
HEIGHT OF THE LEAVES
The carriages allow leaf height to be adjusted by ± 7.5 mm.
1. Slightly loosen the two screws 32-
.
2. To lift the leaf, turn the screw
clockwise. To lower the leaf, turn
screw
anti-clockwise.
3. Tighten the two screws 32-
.
DEPTH OF THE LEAVES
1. Loosen the 2 screws 33-
.
2. Move the leaf on the two slots at the base of the carriages as
desired.
3. Tighten the 2 screws 33-
.
!
After the adjustments check the vertical and horizontal positions of the
leaf with a spirit level.
COUNTER WHEEL
1. Loosen the screws 34-
.
2. Adjust the height by raising or lowering the wheel support.
34-
.
- The wheel must be brought close to the top profile 34-
. It
is recommended to place a 0.5 mm shim between wheel and
profile. Remove the shim upon completing adjustment.
3. Tighten the screw 34-
.
!
Manually move the leaves to ensure the counter wheel runs freely along
the entire stroke. Ensure there are no friction points with the surface of
the support profile.
!
When installation has been completed, apply the FAAC stickers that were
supplied with automatic door to the glass leaves.
