A1000 18 532210 04 - Rev.A
Lt
50 50
Vp La
4
Translation of the original instructions
ENGLISH
5. CUTTING THE PROFILES
If the A1000 KIT has been supplied, the profiles must be cut to the size
indicated. This operation is performed in the shop. After cutting, assemble
the components to the support profile.
Handling instructions: 17.
RISKS
PERSONAL PROTECTIVE EQUIPMENT
REQUIRED TOOLS
Use a circular or linear saw cutting machine with blade suitable for
cutting metals.
It is forbidden to use a hand saw.
Only use equipment in good conditions and fitted with all the required
safety devices.
Always comply with the instructions provided by the equipment's
manufacturer.
Cutting operations may only be performed by personnel authorised to
use the equipment.
Cut to size according to the measurements indicated in 8.

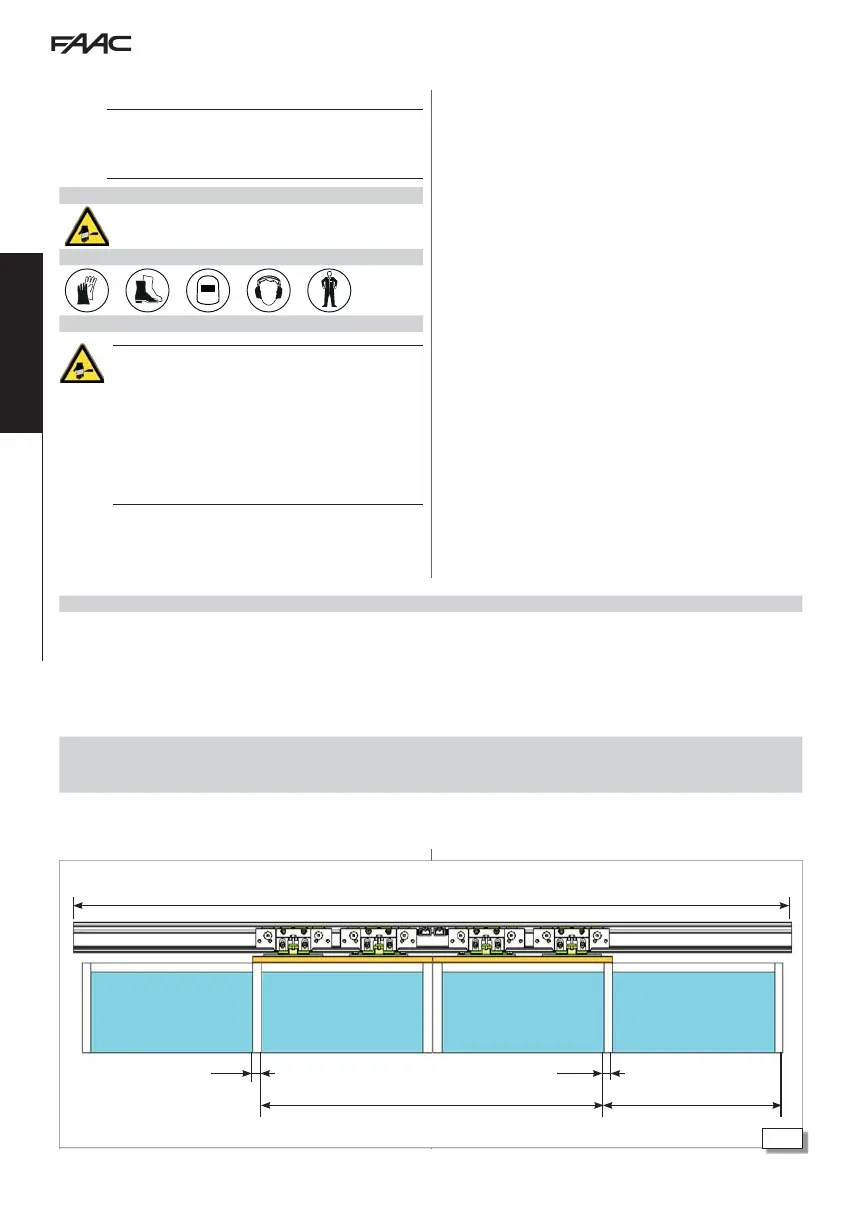

8 Profile cutting measurements
Profile to be cut Cutting measurement [mm]
- Support profile
- Head section cover
- Self-supporting profile (OPTIONAL)
Lt = Vp x 2 + 100
The head section length (Lt) must be calculated based on the measurement of the transit space (Vp).
100 mm is the overlap between leaves (50 + 50). If the overlap is different, the Lt measurement varies accordingly.
The passage opening measurement (Vp) taken on the installation must already be known when placing the order
since the profiles can be supplied in 4300 mm or 6100 mm long bars.
If installed with side profiles, the support profile must be cut to:
Lt - 2mm
- Leaf connection profile (OPTIONAL)
- Lower guide profile (OPTIONAL)
La
The leaf width measurement (La) depends on the transit space measurement (Vp), on the number of leaves and the
planned overlap.
