A1000 40 532210 04 - Rev.A
44
43
2
6
6
Nm
46
45
2
6
2
Nm
1
2
1
Translation of the original instructions
ENGLISH

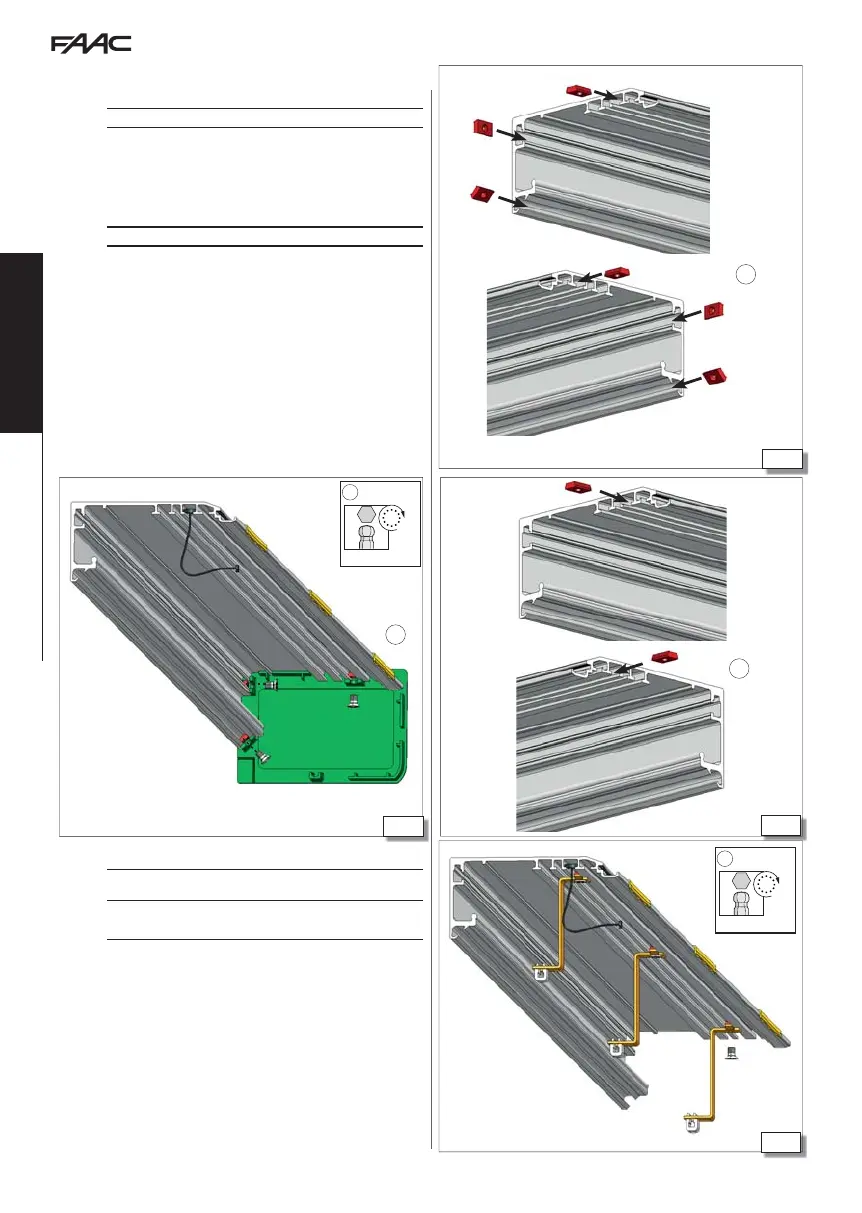

11.4 MOUNTING THE SIDE PROFILES
The side profiles enable the casing to remain closed.
!
If there are no side profiles, cover mounting brackets should be used.
1. Place 6 plates on the support profile (for profiles longer than 3m)
43-
.
2. Mount the side profiles for H100 casings on the ends of the sup-
port profile.
3. Fasten each side profile using the 3 screws provided 44-
.
!
Use at least one central bracket 46-
for profiles longer than 3 m.
11.5 INSTALLING THE CASING BRACKETS
!
The brackets enable the casing to be closed if side profiles are not used.
Brackets are available for H100 covers.
It is recommended to use a central bracket for profiles longer than 3 m.
1. Place 2 plates 45-
on the support profile (for profiles longer
than 3 m, a third plate should be added).
2. Mount the brackets and fasten them using the screws provided
46-
.
