Translation of the original instructions
ENGLISH

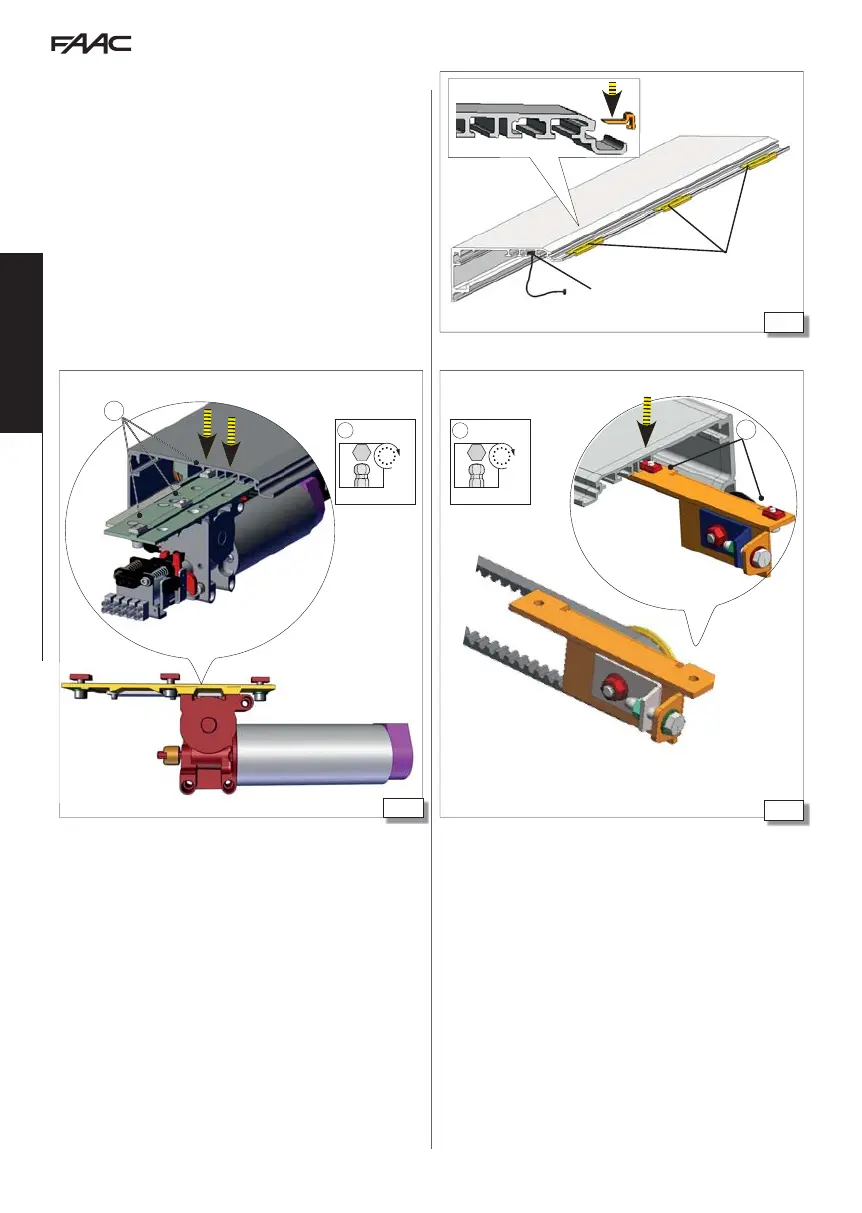

SAFETY CABLES AND SPACERS
1. Insert the end of each cable into the support profile 8-
.
2. Insert 2 vibration damper spacers 8-
onto the edge of the
profile. In the case of profiles longer than 3 m, add a spacer in the
middle 8-
.
MOTOR
1. Insert the motor in the side of the support profile.
2. Fasten using the 3 plates with screws 9-
RETURN PULLEY
1. Insert the return pulley from the side 10-
.
2. Fasten using the 2 plates with screws 10-
.
