A1000 25 532210 04 - Rev.A
18
1
2
19
Translation of the original instructions
ENGLISH

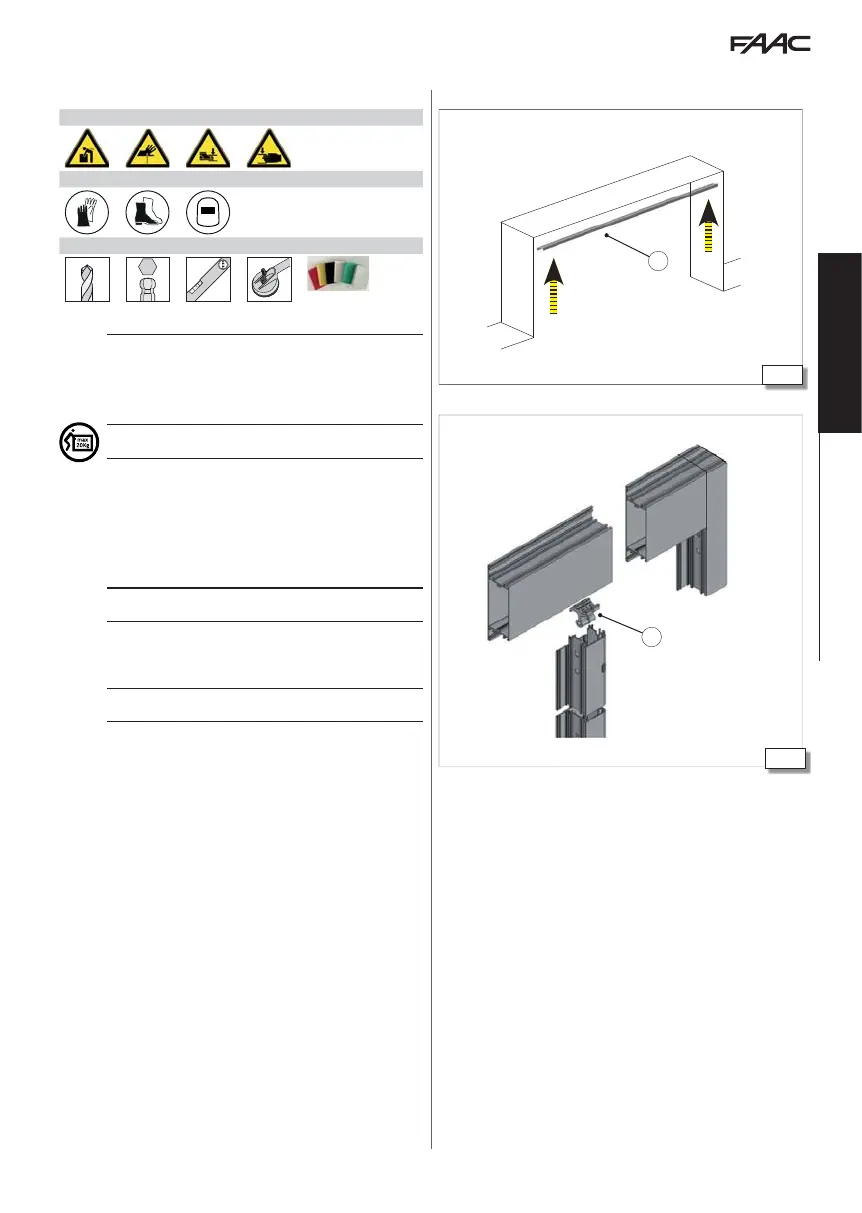

7. ASSEMBLING THE A1000 CS FRAME
RISKS
PERSONAL PROTECTIVE EQUIPMENT
REQUIRED TOOLS
Ø 8 mm
5
glass shims
!
A torque wrench must be used to achieve the specified fastening torques
(Nm).
When ordering the door frame, remember to take into account that the
opening safety clearances must be as indicated in standard EN 16005:2012
since no opening protection detectors can be installed on the A1000 door.
For manual lifting, arrange for an adequate number of people for the
weight of the leaf: 1 person for every 20 kg to be lifted.
7.1 ENTRY WITH TK50 PROFILES
PRELIMINARY OPERATIONS
1. Check soundness of the installation opening (Masonry, Structural
Metal Work etc.).
2. Take the measurements of the opening.
!
The door frame must be fastened to the structure with suitable fasteners
(dowels, self-tapping screws etc. ).
3. Measure the door frame and compare them with the opening
measurements.
4. Check floor levelness with a spirit level.
!
Ensure there are no hydraulic coils or electrical conduits under the floor
at the planned drill points.
ASSEMBLING THE FRAME
The supply includes:
- upper head section with reinforcement counter-plate for A1000
- 2 mobile leaves assembled with or without glazing
- 2 fixed side leaves without glazing to be assembled with upper
head section
- seal for fixed glass leaves
- frame assembly screws kit
1. Mount the upper balancing profile on the opening (STD solution)
19
-
.
2. Fasten with appropriate screws with minimum 500 mm pitch.
3. Assemble the entry door parts, consisting of 2 leaves open at
the top and connect it to the head section connection profile
, by
means of the connecting bracket shown 19
-
. Join the head
section to the profile using the supplied screw kit.
4. Lift the assembled entry door.
5. Place the entry door in the opening and insert it into the top
balancing profile.
6. Check levelness with a spirit level.
7. Fasten the side balancing profiles using suitable screws next to
the grub screws 20-
.
To Next Page
