Passage opening

Single leaf - RH opening

SINGLE LEAF WITH RH OPENING

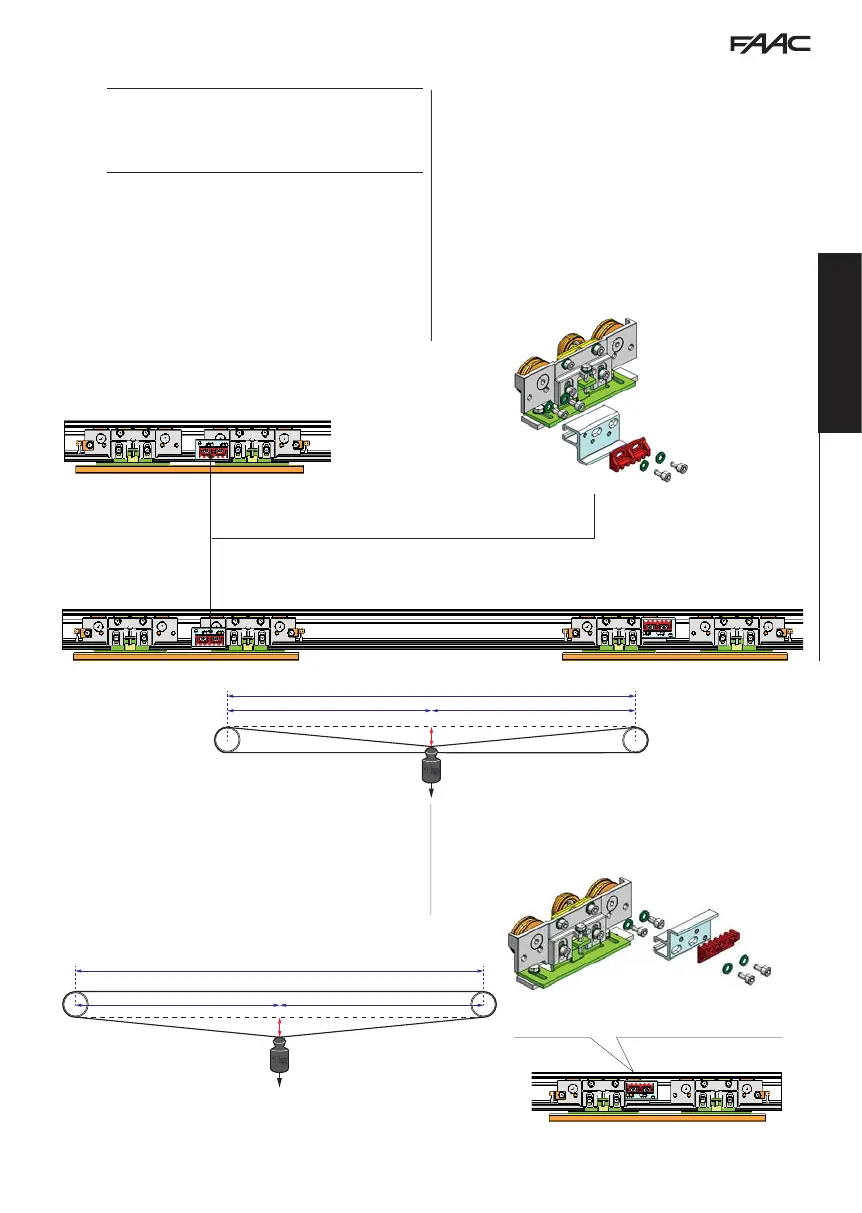

1. Connect the belt fitting to the carriage.

2. Apply a 1 kg weight in the centre of the belts lower section.

3. Adjust the tension of the belt until the measurement of arrow f

corresponds to the indications in 9.

ADJUSTING THE BELT

Open and close manually a few times: the belt must remain in its seat

flush with the pulley.

When the belt is installed, operate the leaves with care to prevent crush-

ing your fingers between the carriage wheels and the sliding guide and

between the pulley and belt.

SINGLE LEAF WITH LH OPENING / DOUBLE LEAF

1. Connect the belt fitting to the carriage.

2. Attach a 1kg weight in the centre of the

upper section of the belt.

3. Adjust the tension of the belt until the measurement of arrow f

corresponds to the indications in 9.

4. In the case of a double leaf: after adjustment, mount the second

upper belt fitting and connect it to the carriage.

Double leaf

Passage opening

Single leaf - LH opening
