A1000 24 532210 04 - Rev.A
16
15
x2
1
3
2
2
6
6
Nm
75501500 2015
1
17
2
Translation of the original instructions
ENGLISH

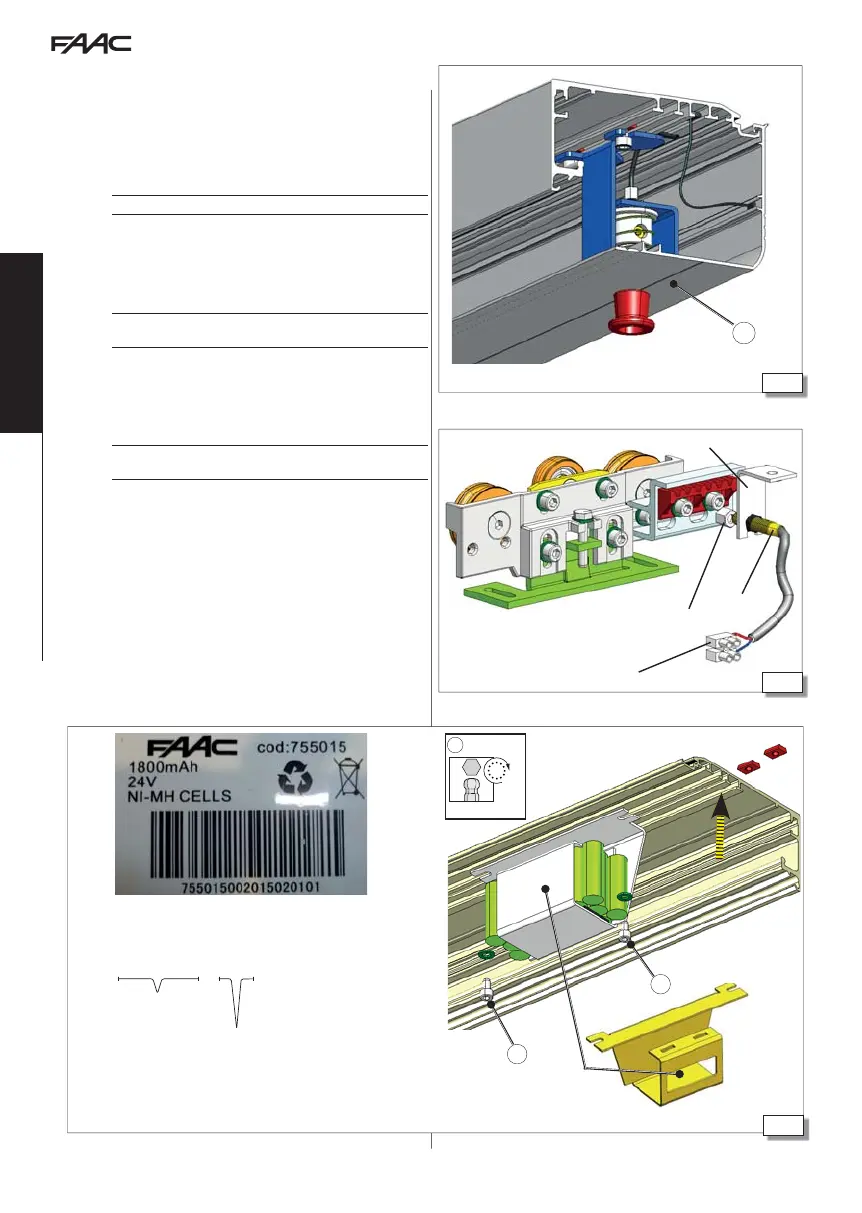

COVER DRILLING
Make a
18 mm diameter hole on the lengthways marking of the
cover 15-
.
The hole must be centred with respect to the release knob.
CLOSED DOOR MONITOR SENSOR
OPTIONAL ACCESSORY)
Assemble the magnet on the carriage closest to the closing stop.
1. Screw the magnet 16-
onto the carriage (use the threaded
hole normally used to attach the belt).
2. Install the sensor onto the bracket using the plastic nuts 16-
.
3. Insert a threaded plate with screw into seat on the support profile
and fasten the bracket 16-
.
After installing the door the position must be checked to ensure sensor
and magnet are aligned when the door is closed.
EMERGENCY BATTERY KIT
1. Insert two plates into the support profile as shown in 17.
2. Fasten the battery support onto the support profile using the 2
screws and washers (provided).
!
Check the date on the label on the emergency battery through the window
on the battery support plate. 17-
97
year of manufacture (yyyy)
Sale code
IDENTIFICATION NUMBER
example:
