Translation of the original instructions
ENGLISH
12. ELECTRONICS INSTALLATION E1SL
POWER SUPPLY UNIT

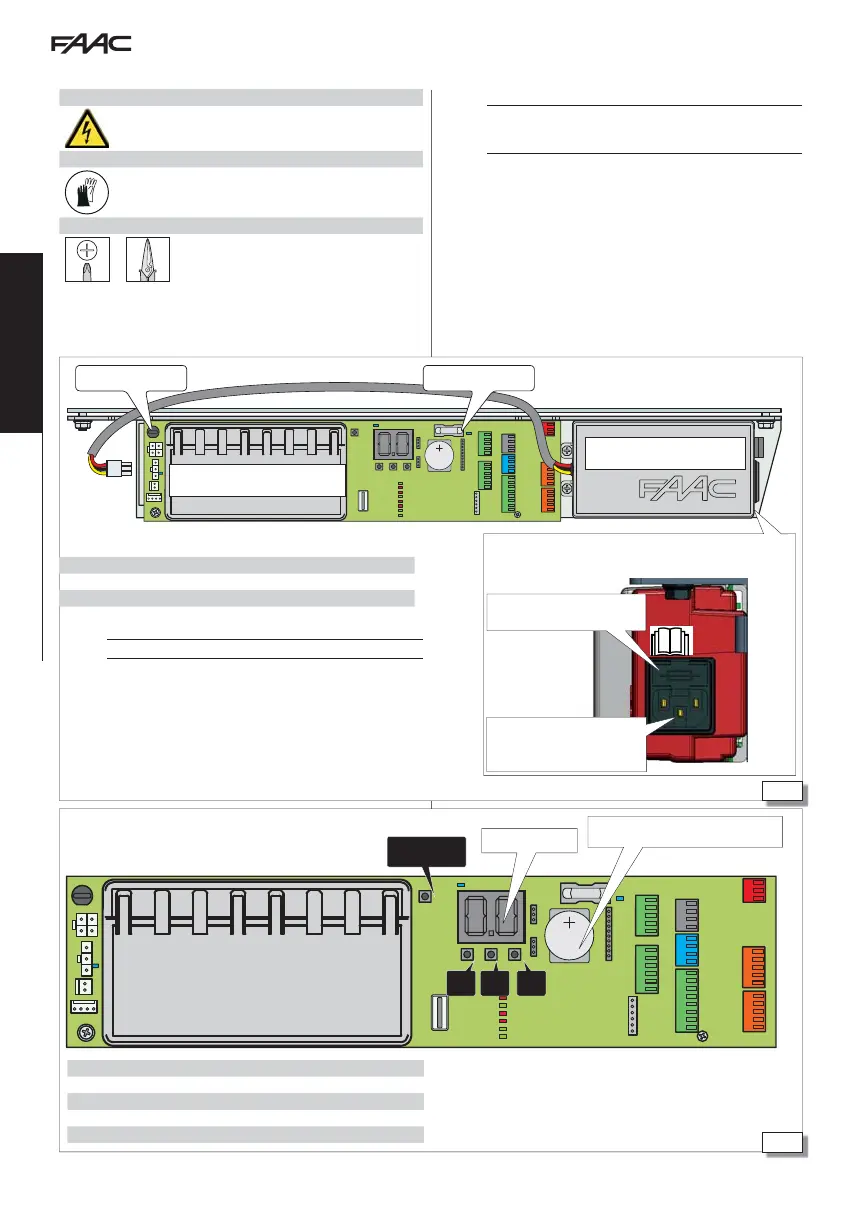

ELECTRONIC BOARD
Fuse F1 Fuse F2
Buttons
SW1 SETUP / RESET
SW2
-
” (scrolls programming values)
SW3 “+” (scrolls programming values)
SW4 “F” (programming: scrolls functions/confirms values)
Display
Clock battery: lithium 3V CR2032
(NOT SUPPLIED)
E1SL ELECTRONIC BOARD
RISKS
PERSONAL PROTECTIVE EQUIPMENT
REQUIRED TOOLS
2.5
F
ALWAYS DISCONNECT THE POWER SUPPLY before working on the board.
Turn the power on only after having completed all the connections and
preliminary start-up checks (53).
12.1 E1SL ELECTRONIC MODULE
Switching power supply unit 230 V~ +6% -10%
self-protected from overloads
Mains power supply input
(230V~ +6% -10% )
Fuse F3 (extractable support)
Fuses
F1 battery protection 8 A T (delayed)
F2 accessory protection 2 A F (quick)
F3 power supply unit primary protection 2.5 A T (delayed)
A spare fuse is provided (in the extractable support)
