Translation of the original instructions
ENGLISH

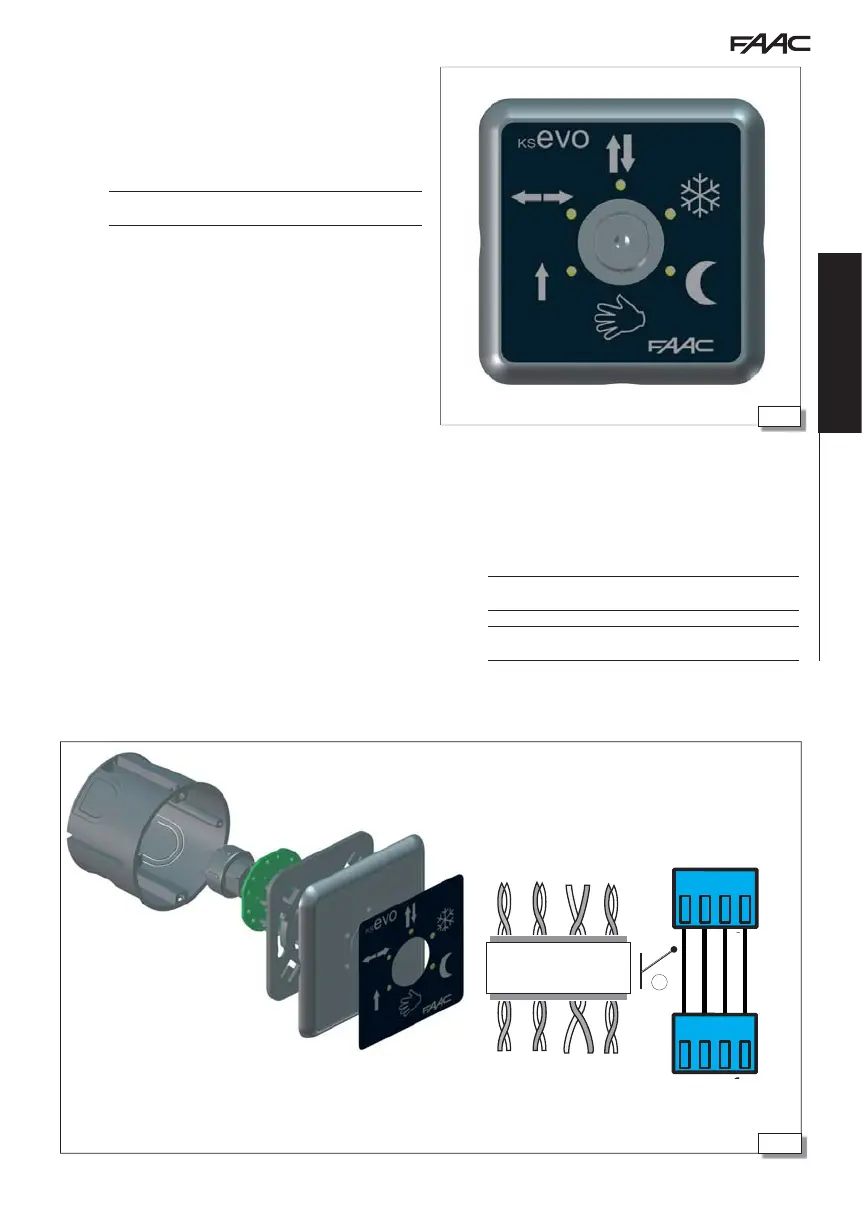

19.1 ASSEMBLY AND TESTING
1. To separate the parts of the KS EVO see 74 .
2. Break off the cable knockout.
3. Mark the points on the wall 74-
and fasten the support us-
ing suitable screws.
F
BEFORE CONNECTING THE DEVICE, disconnect the power supply and the
emergency battery of the automation.
4. Connect up the E1SL board 74-
5. The connection must be made using a 4-pair twisted cable
U/UTP CAT.5 4x2xAWG24 with a 0.5 mm section74-
. The
maximum distance is 50 m.
6. Assemble the KS EVO 74
19.2 SELECTION MENU
1. Turn the key corresponding to the function to access the operating
mode selection menu.
2. The following functions can be set using the key:
- TOTAL TWO-DIRECTION AUTOMATIC
- DOOR OPEN
- AUTOMATIC TOTAL ONE-DIRECTION
- AUTOMATIC PARTIAL TWO-DIRECTION AUTOMATIC
- NIGHT
- MANUAL
3. The LED switches on to identify the active function.
Turn the key to move from one function to another.
19. KS EVO
If there is an error on the board to which it is connected, the LEDs
displayed on the device alternate between:
3 sec. current operating mode LED on steadily / 3 sec. ashing
error code LED.
Refer to the error tables and the corresponding number on the board
and the respective combination of LEDs associated with the error.
The switching time of the function with respect to the chosen selection
is 1 sec.
If all the LEDs are on, it indicates that there is no communication with the
board or the board to which it is connected is not recognised.
