Translation of the original instructions
ENGLISH
!
WARNING: IT IS OBLIGATORY TO INSTALL PROTECTIVE BARRIERS IN THE
MOVEMENT AREAS IN THE EVENT CONTACT WITH PERSONS IS NOT AL-
LOWED.

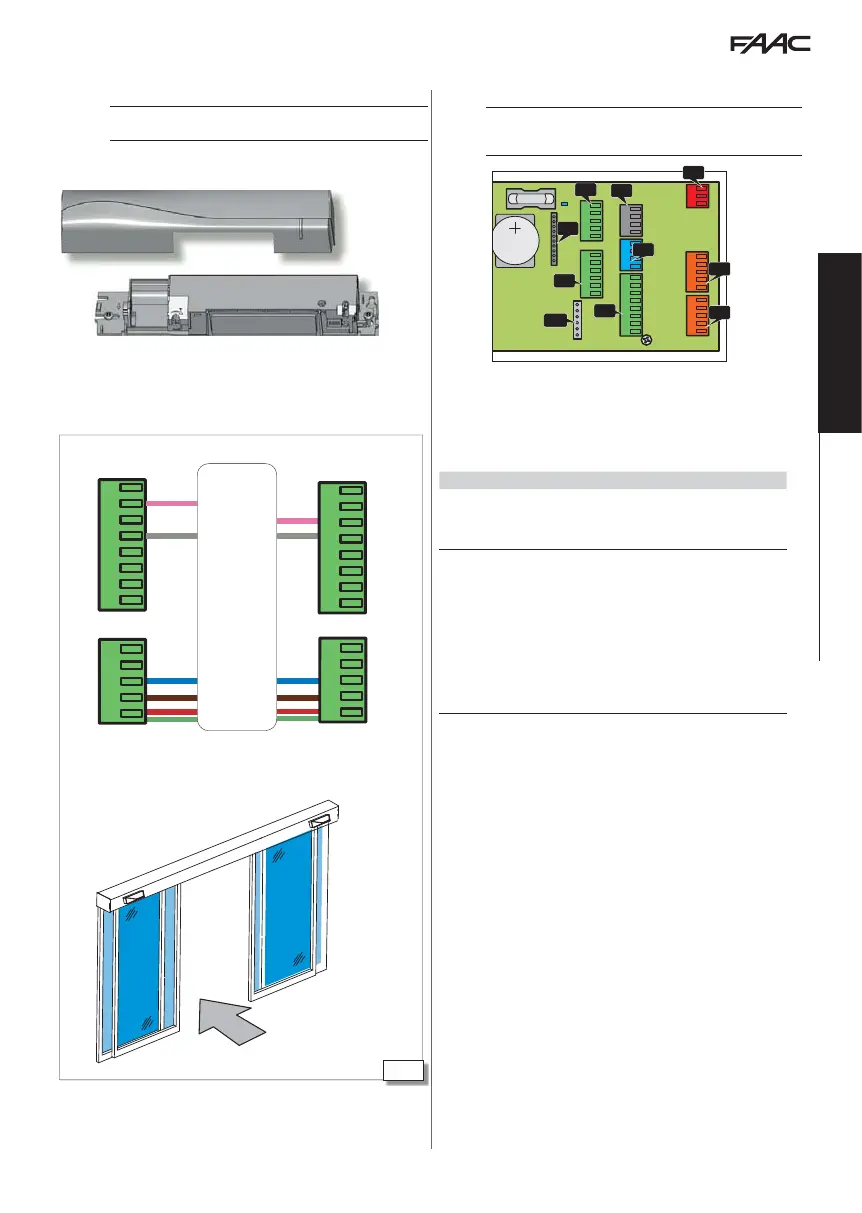

PROGRAMMING THE E1SL BOARD
Programming can only be carried out only via the SDK EVO.
From Board SDK EVO
o1=5
Inputs O1
O1 Function = TEST
O1 NO/NC = NO
C3=21
3F=Y
C4=21
4F=Y
INPUTS I3-I4
I3 = Safety on opening
I3 NO/NC = NC
I3 TEST =Enabled
I4 = Safety on opening
I4 NO/NC = NC
I4 TEST =Enabled
Use the XBFA detectors for safety in opening in compliance with
EN 16005:2012 and DIN18650.
brown
pink
red
blue
green
grey
pink
12.7 XBFA DETECTORS FOR SAFETY IN OPENING
outside of
door
inside of door
XBFA n.1 XBFA n.2
Use this configuration to protect the opening movement space using the
safety detectors.
To Next Page
