Installation with side profiles and central bracket.

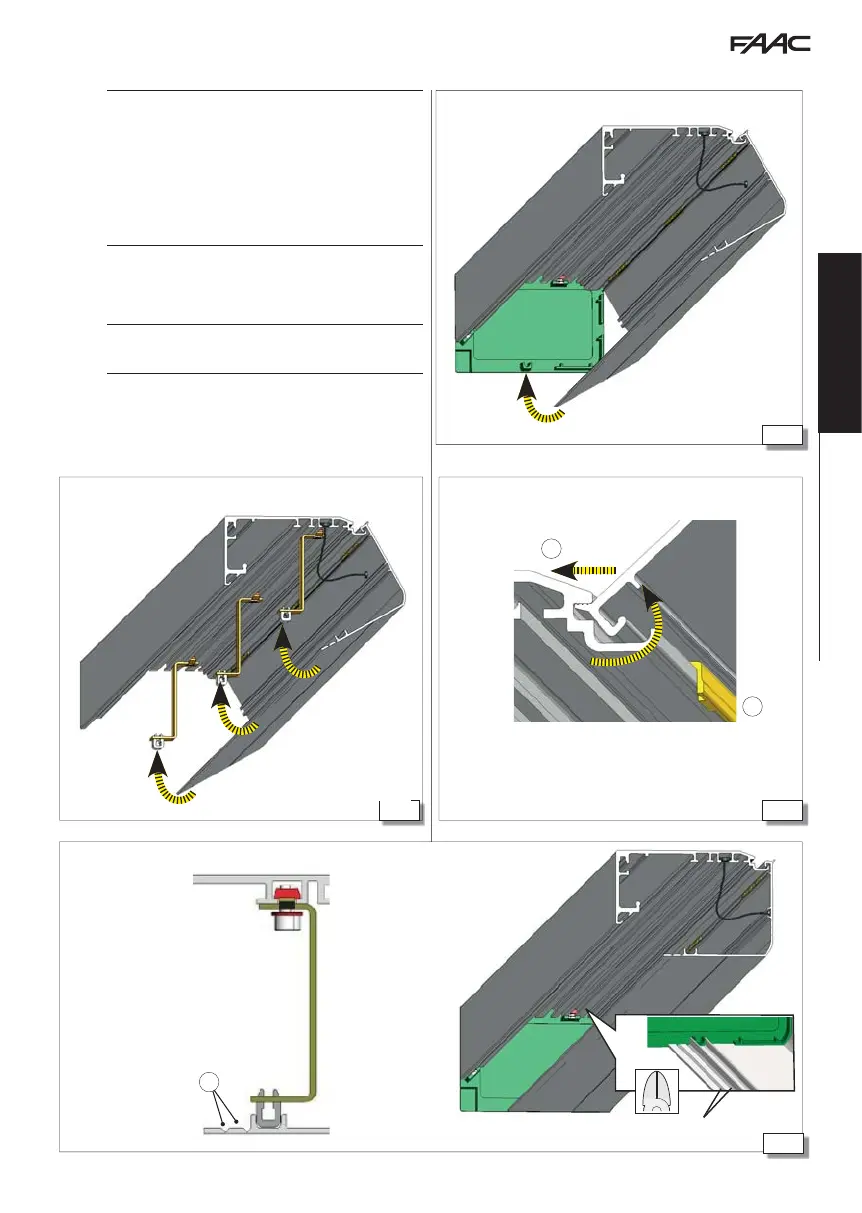

11.6 FITTING THE COVER
!
On the profile there must be:
- the safety cables
- the spacers
- the side profiles or the cover fastening brackets
1. Place the cover on the profile 47 or 48.
2. Hold the cover in the open position 49-
(lift it, then push
it into the profile).
3. Fasten the safety cables to the cover 47-
and close the cover.
!
The safety cables must be correctly installed to protect from the risk of
accidental casing fall.
Push the cover slightly in order to insert the blocks into the brackets or
side profiles 47or 48
.
The markings on the casing allow it to be adapted to varying leaf thick-
ness. The breaking points 50-
make it possible to remove the
profile section in excess.
Installing the cover.
