A1000 27 532210 04 - Rev.A
24
23
Translation of the original instructions
ENGLISH

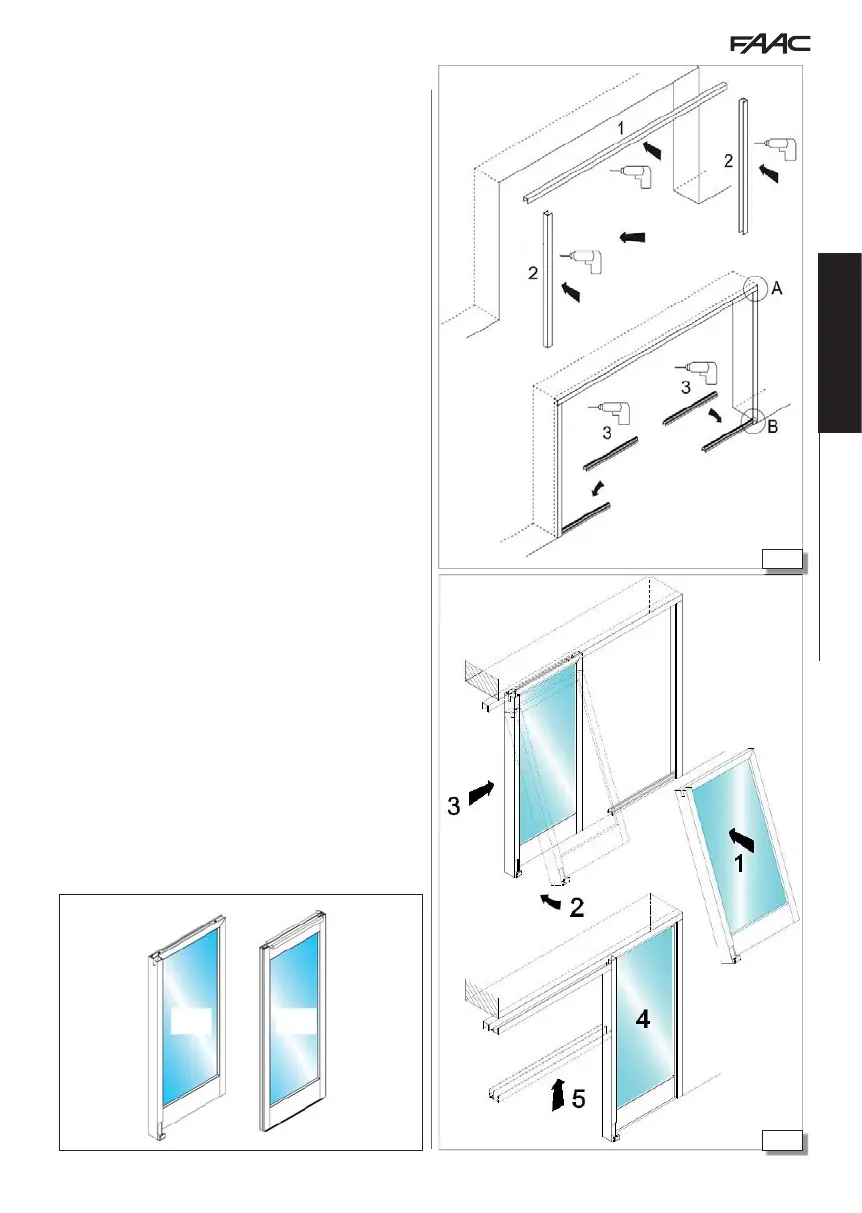

ASSEMBLING THE FRAME
The supply includes:
- 4 leaves (2 fixed leaves and 2 mobile leaves with installed glazing).
- side and upper balancing profiles
- alignment profile
- fixed leaf beading
- floor shoe
1. Install the upper balancing profile 23-
.
2. Install the side balancing profiles 23-
.
3. Mount the floor profile 23-
.
4. Insert the fixed leaf by tilting it and inserting it into the top profile
24
.
5. Place horizontally then fasten the leaf.
6. Mount the upper labyrinth profile 24-
.
MOUNTING MOBILE LEAVES
Mount the leaves as described in § 9 29.
ASSEMBLY OF THE HEAD SECTION TO THE UPPER PROFILE
Mount the assembled head section onto the upper profile by means
of suitable attachments.
After mounting the head section, perform all procedures to secure the
leaf to the carriages as set out in the chapters concerning kit assembly.
For all the adjustment procedures, also refer to chapter § 8 28.
View from automation side
fixed leaf
mobile leaf
