FaroArm® Quantum
August 2017
95
Chapter 4: Probes

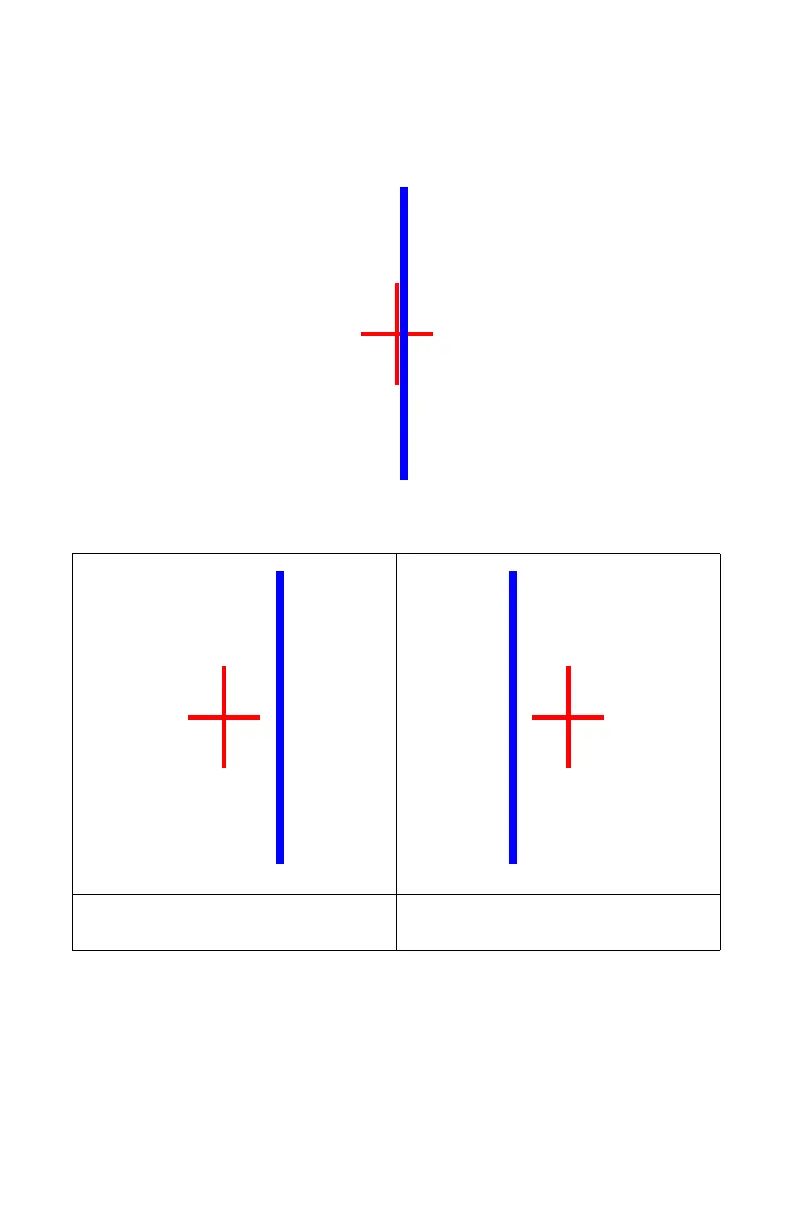

When the probe-to-part distance is in the middle of the range, the center of the
cross hair and the laser line are together.
As the distance increases or decreases, the cross hair moves away from the laser
line:
When the Laser Line Probe is out of range, the cross hair and the laser line no
longer touch.
You can switch the Range Finder off in the FARO LASER LINE PROBE CONTROL
dialog box.
See “FARO Laser Line Probe Settings” on page 104.
Left as the Laser Line Probe moves
farther from the surface.
Right as the Laser Line Probe moves
closer to the surface.
