FaroArm® Quantum
August 2017
6
Chapter 1: Introduction
7-Axis Quantum
These are the key components and controls for the 7-Axis Quantum.
 Tube 1
 Tube 2
 Storage Hook
 7-Axis Handle (Removable)
 Handle Locking Collar
 Probe Locking Lever
 Buttons
 Handle LED
 Probe
 Base Collar

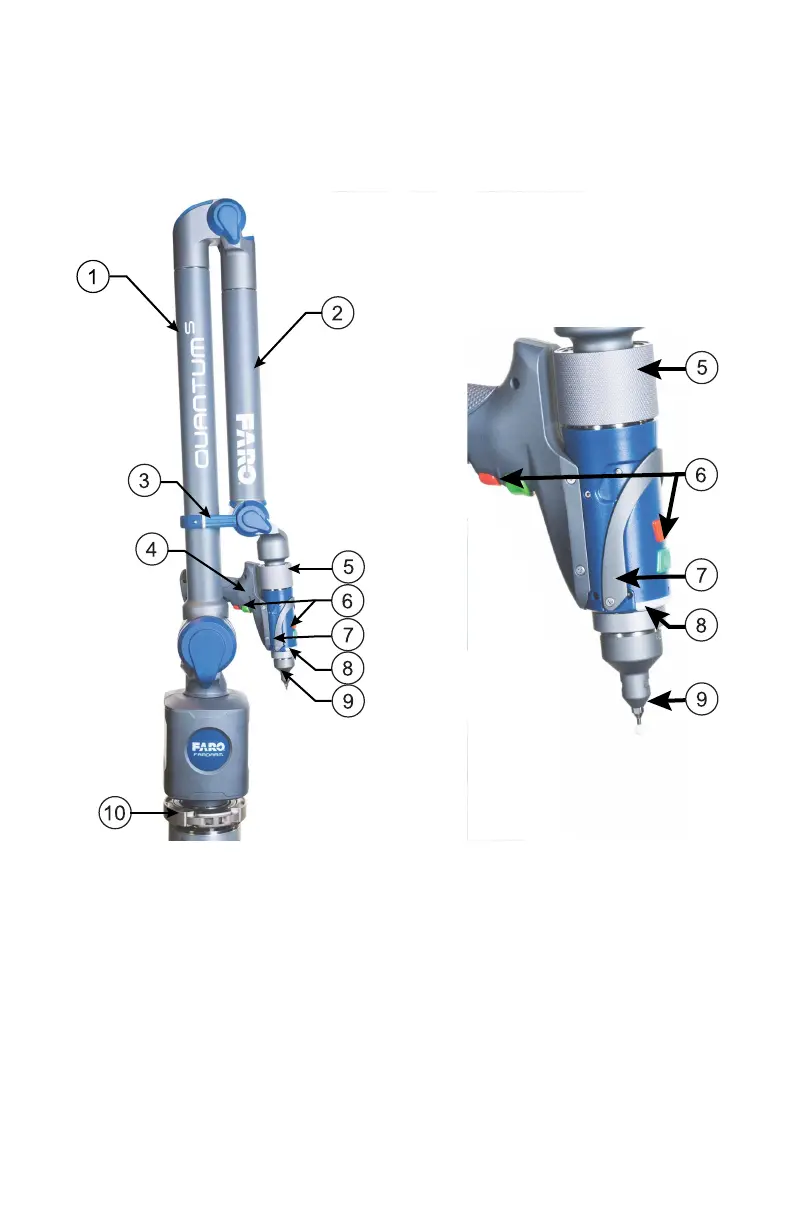

Figure 1-3 7-Axis FaroArm front view
