FaroArm® Quantum
August 2017
98
Chapter 4: Probes
4. Choose the Laser Probe probe.
NOTE: Ensure that HIGH ACCURACY MODE is disabled during
compensation.
See “FARO Laser Line Probe Settings” on page 104.

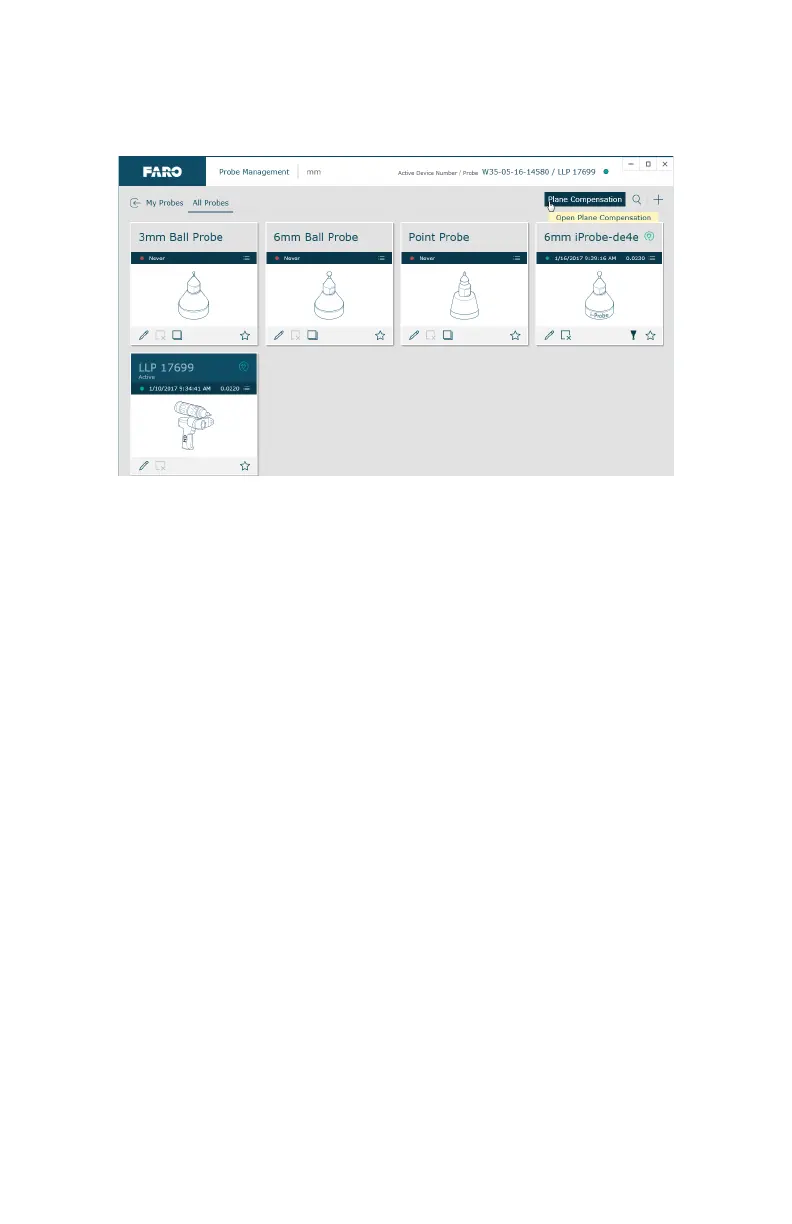

5. Choose Plane Compensation.
6. Click Measure Plane or Compensate LLP with Previous Values to use the
previously measured plane.
• The laser turns on and the laser beam is visible unless you are measuring
the plane. After you successfully measure the plane, the laser turns on
and the laser beam is visible.
Plane Compensation
Calibrate the FARO Laser Line Probe. You will digitize the FARO Compensation
Plate, once with the ball probe, and then three times with the FARO Laser Line
Probe.
1. Digitize the white area of the FARO Compensation Plate with the ball probe.
• Touch the white surface with the ball probe and press the green Front
button.
• Digitize eight points on the white surface.
Figure 4-13 Compensating the Laser Line Probe
08m80e00_FaroArm_Quantum.book Page 98 Tuesday, August 22, 2017 11:03 AM
