FaroArm® Quantum
August 2017
157
Chapter 8: Configuring the Quantum in CAM2 Measure
Temperature
From the DEVICE CONTROL panel, click Temperature to show the
T
EMPERATURE dialog box.
For more information, see “Temperature Stability” on page 84.
Measurement Mode Setting
From the DEVICE CONTROL panel, click the Measurement Mode Setting button
to set the default collection mode in the M
ODE drop-down window of the
M
EASUREMENT WINDOW for this device.
NOTE: The MEASUREMENT WINDOW appears when the Add Readings
command is started, or when any measure feature command is started in
Measure mode.
In the MODE SETTINGS dialog:
• Single Point: press the green Front button, or the G key, to collect a
single reading.

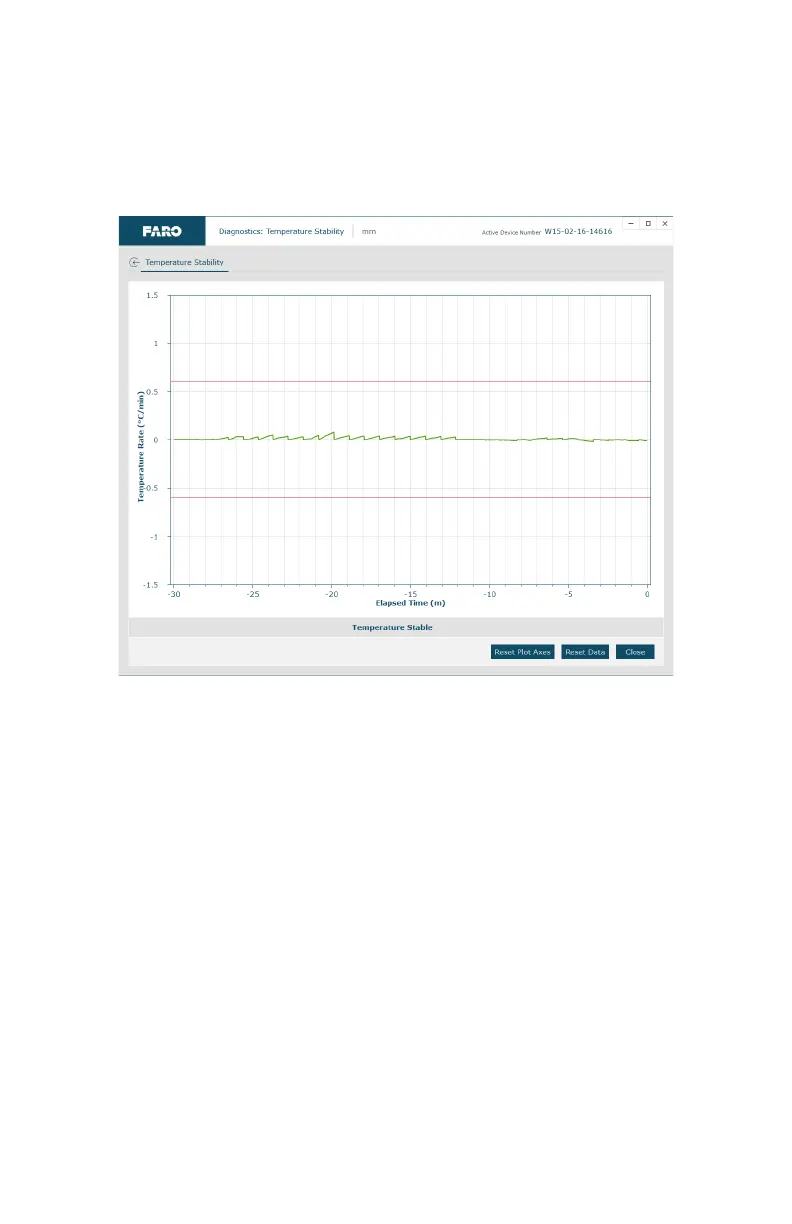

Figure 8-5 Temperature Stability dialog box
08m80e00_FaroArm_Quantum.book Page 157 Tuesday, August 22, 2017 11:03 AM
