FaroArm® Quantum
August 2017
81
Chapter 3: Operation
Diagnostic Level
Click DIAGNOSTIC LEVEL to compare the Quantum to level. This command uses
the Quantum’s internal inclinometer. The Quantum should never lean more than
±5° from level.
1. Look at and adjust the mounting until the white dots are centered in each
bubble.
2. Click Close to exit.

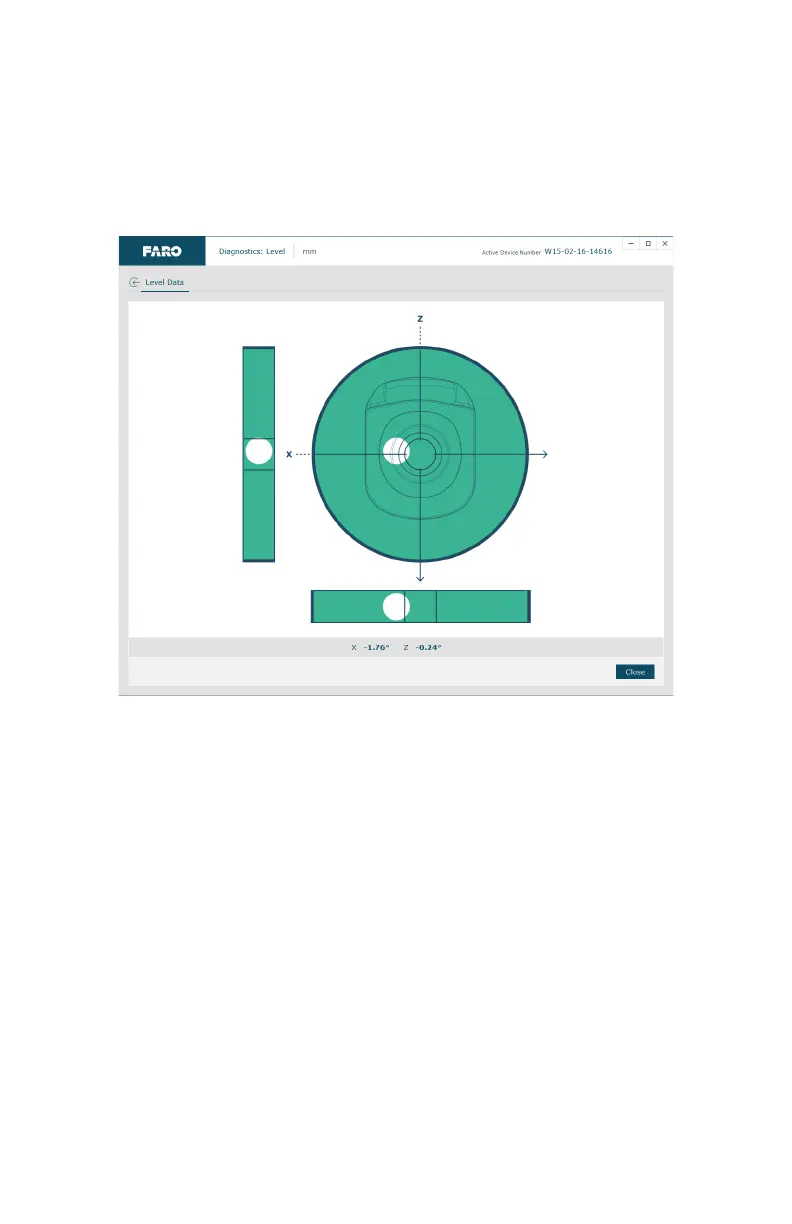

Figure 3-49 Diagnostic Level dialog box
08m80e00_FaroArm_Quantum.book Page 81 Tuesday, August 22, 2017 11:03 AM
