FaroArm® Quantum
August 2017
18
Chapter 2: Setting up the Quantum
Storage Hook
The Quantum has a Storage Hook attached to Tube 1 to secure Tube 2. This
system helps secure the Quantum and helps prevent damage to the probe when in
the rest position.
1. Lift the last section upwards and insert the bottom of Tube 2 into the
Storage Hook.
2. Ensure both sides are in the hook and gently lower the last section.
3. Lift the last section upwards to remove Tube 2 from the Storage Hook to
begin measuring.

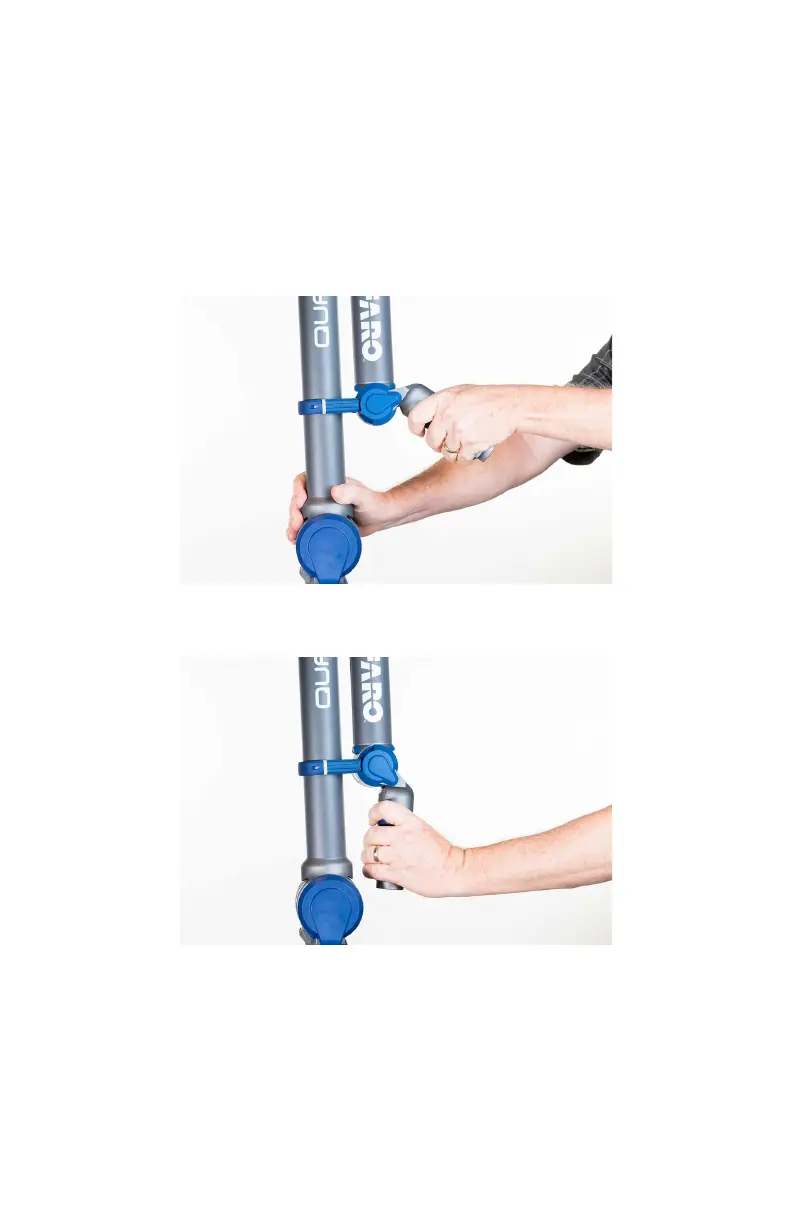

Figure 2-5
Figure 2-6
