FaroArm® Quantum
August 2017
19
Chapter 2: Setting up the Quantum
Installing Probes
Remove the Probe Kit case from the Shipping case. In addition to probes, this
case contains the compensation cone.The probe attaches to the handle at the end
of the Quantum. To install a probe:
1. Hold the end of the Quantum on the underside with one hand and open the
probe locking lever with your other hand.

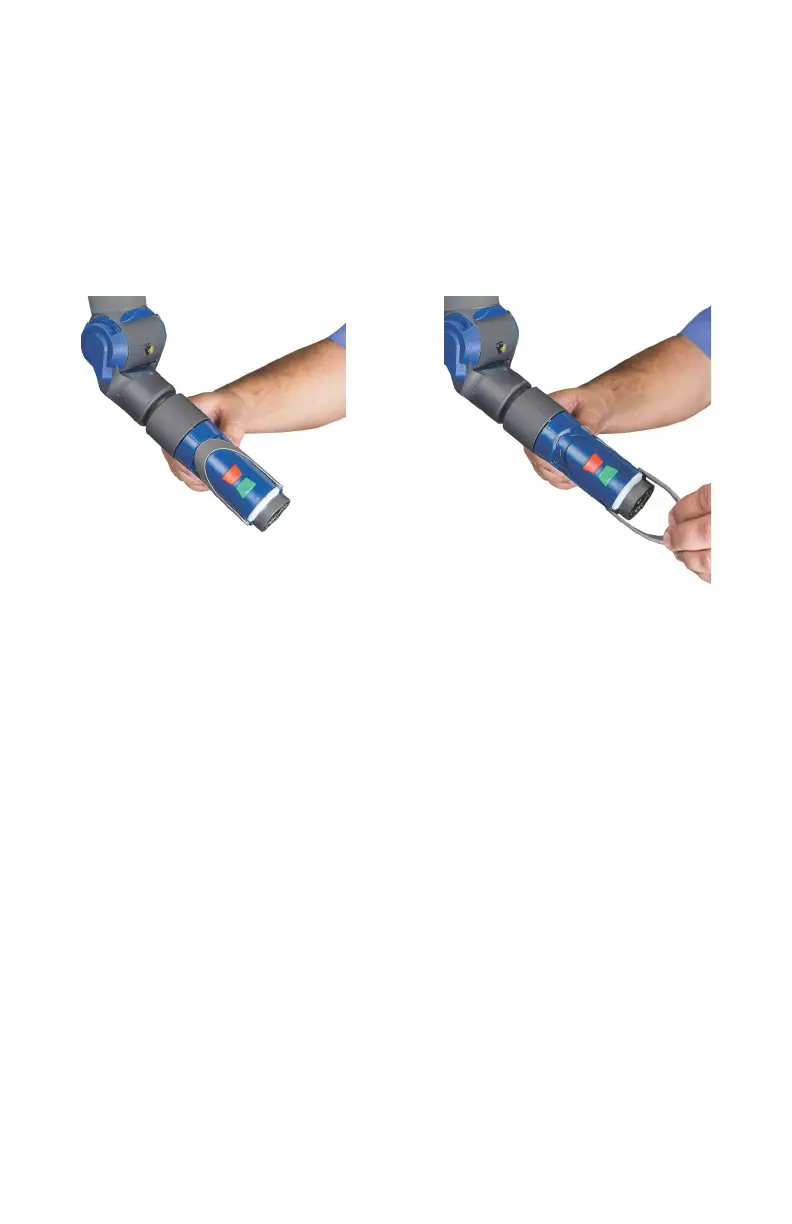

Figure 2-7 Opening the Probe Locking Lever
08m80e00_FaroArm_Quantum.book Page 19 Tuesday, August 22, 2017 11:03 AM
